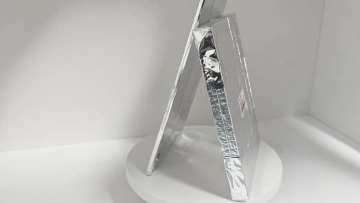

An EPS (Expanded Polystyrene) foam sandwich vacuum insulation panel is a construction material designed for thermal insulation purposes. It typically consists of a core layer of EPS foam, which provides structural support and insulation, sandwiched between two layers of a high-performance vacuum insulation panel (VIP). It is Extruded polystyrene foam board composite VIP.
EPS foam is a lightweight and versatile material known for its excellent thermal insulation properties. It traps air within its cellular structure, which inhibits the transfer of heat, making it an effective insulator.
Vacuum insulation panels (VIPs) take insulation to the next level. They consist of a core material enclosed in a gas-tight envelope from which air is removed to create a vacuum. This vacuum greatly reduces heat transfer through conduction and convection, resulting in extremely high levels of insulation performance.
Combining EPS foam with VIPs, Foamboard adhesive vacuum insulation panel in a sandwich configuration enhances the overall insulation capabilities while also providing structural support and durability. This combination is often used in building envelopes, refrigeration systems, and other applications where superior thermal insulation is required. It offers high thermal resistance (R-value) with minimal thickness, making it ideal for situations where space is limited. Additionally, the lightweight nature of EPS foam makes installation easier and more cost-effective compared to traditional insulation materials.
VIP can be made of fumed silica core or Fiberglass core with metallized film in the outside. At present, VIP is one of the best insulation materials worldwide. Compared with other traditional insulation materials, VIP has many advantages. The thermal conductivity of fumed silica VIP can reach as low as 0.004W/m·K while fiberglass VIP can reach as low as 0.0024W/m·K. VIP is applicable to thermal insulation between -100℃and 80℃ with extremely slow aging rate. It can meet the energy-saving requirements of EU Renewable Energy Directive, thus is favored by many countries for buildings project to save energy and space.
Once the surface of VIP is protected by EPS when applied in construction, the service life of VIP can be increased accordingly. Because once lost vacuum, the insulation performance will lose effect. In some cases when the VIP surface need to touch the castables, we can sandwich VIP with other materials like EPS for better protection.
Building insulation materials VIP sandwich EPS can be applicable in exterior walls, roofings, or floors.
However, it's essential to ensure proper installation and sealing to maintain the vacuum integrity of the insulation panels and to prevent moisture infiltration, which could compromise their performance over time. Additionally, considering factors like weight, load-bearing capacity, and compatibility with other building materials is crucial when incorporating VIP sandwich panels into construction projects.
For the joint of EPS sandwich VIP boards, we can use foam tape to fill in these gaps which can make sure less thermal leakage. For building boards we normally use 1000*500 or 1000*600 for length and width. Thicknesss of VIP depends on temperature requirements from customers also the ambient temperature. We offer various thermal solutions to our partners from all over the world. We can also help with projects calculations for constructions.
