Timing Belt Pulley HTD5m 16 Teeth

Description:

Timing belt pulley and timing belt are both transmission accessories.The overall characteristics of timing belt pulley transmission are high transmission efficiency, low transmission noise and smooth transmission process. Arc teeth timing belt pulley is a common tooth shape belt pulley. It usually includes single arc teeth timing belt pulley and double arc teeth timing belt pulley. The small gear of the single arc teeth timing belt pulley has a convex arc tooth profile, while the large gear has a concave arc tooth profile. In the double arc teeth timing belt pulley transmission, both the large and small gears use the same tooth shape, which is composed of two arc sections. The top of the tooth is divided into a convex arc and the tooth root is a concave arc.

Common models are:

HTD timing belt pulley
STD timing belt pulley

Parameters:

Type	Pitch	hg	R	S	Top circle R	Angle
HTD3M	3	1.28	0.91	1.90	0.3	≈14°
HTD5M	5	2.16	1.56	3.25	0.48	≈14°
HTD8M	8	3.54	2.57	5.35	0.8	≈14°
HTD14M	14	6.20	4.65	9.80	1.4	≈14°

Advantage:

• 1) The transmission is accurate, there is no slippage during operation, and it has a constant transmission ratio.

• 2) The transmission is smooth, has buffering and vibration reduction capabilities, and has low noise.

• 3) The transmission efficiency is high, reaching more than 98%, and the energy saving effect is obvious.

• 4) Easy maintenance, no lubrication required, low maintenance cost.

• 5) The speed ratio range is large, generally up to 10, and the linear speed can reach 50m/s.

• 6) No pollution, can work normally in places where pollution is not allowed and the working environment is harsh.

Application:

Arc teeth timing belt pulleys are widely used in various mechanical transmission systems, such as industrial production lines, packaging machinery, CNC machine tools, printing equipment, etc.

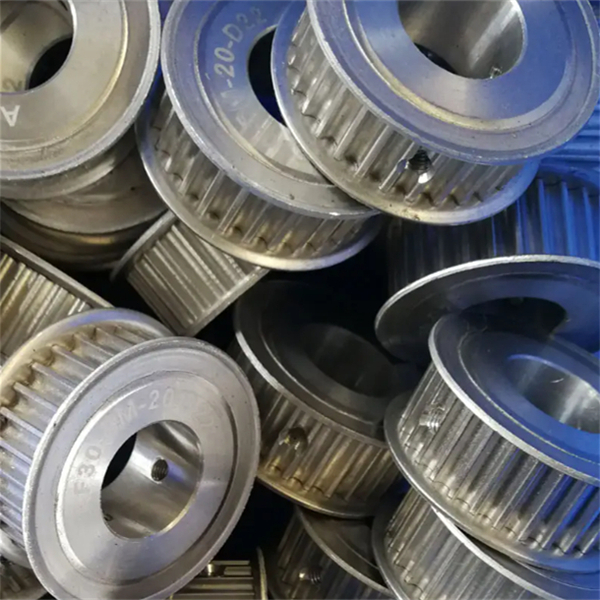

Photos:
