Model No.: 200M10
Brand: HAOXUAN
Place Of Origin: China
Types Of: Perc, Half Cell, Bifacial, Double-Glass, All Black
Type: 200M10

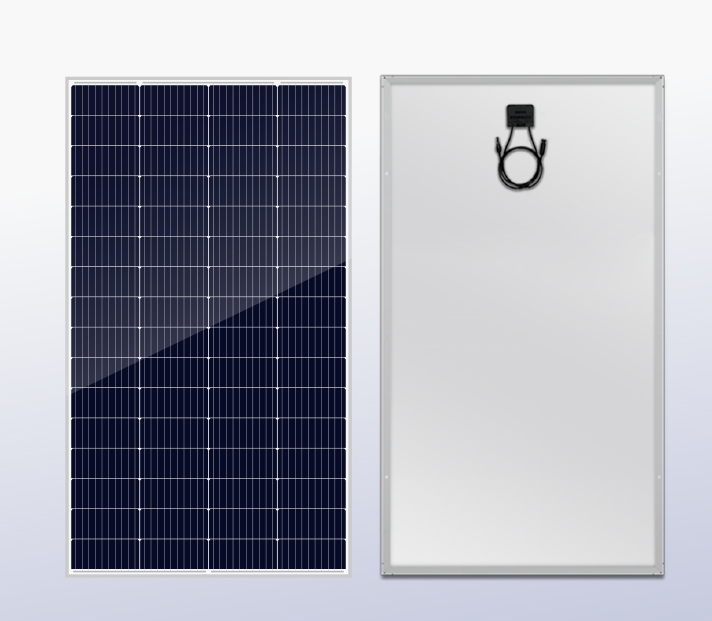

Dimension: 1375*765*30mm
Weight: 10.87kg
Solar Cells: Mono crystalline 182X81mm (4X16pcs)

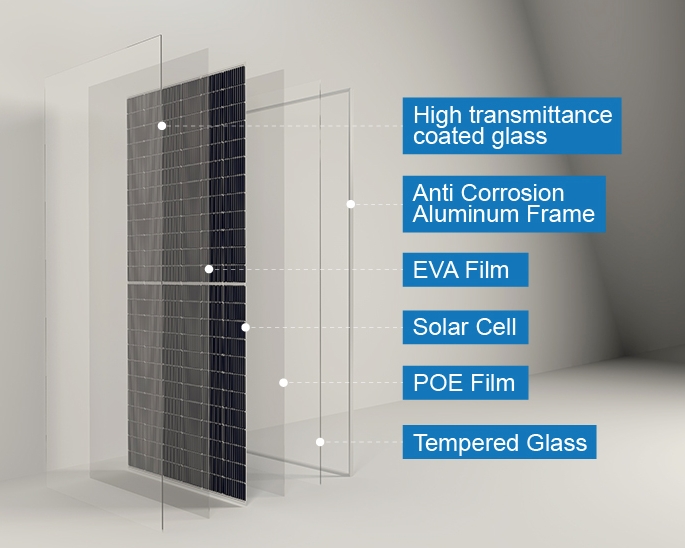

Front Glass: 3.2 mm tempered glass
Frame: Aluminum
Junction Box: IP67
Output Cables: 90cm, length can be customized
Connector: MC4 Compatible
Mechanical Load: Front Side Max. 5400Pa, Rear Side Max. 2400Pa
Packaging: Carton or Wooden Box
Productivity: 2000pcs per day
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 2000pcs per day
Certificate: ISO9001, ISO14001, ISO45001
HS Code: 8541430000
Port: Shanghai,Ningbo,Shenzhen
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW

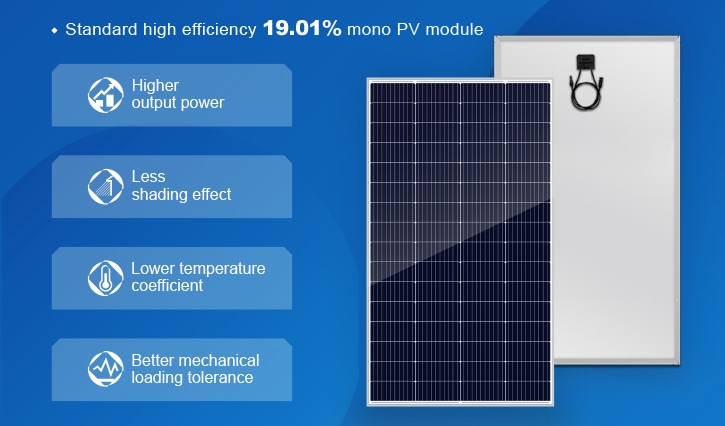

The excellence of the 182mm size silicon wafer is outstanding, and its kWh cost advantage is obvious, and because it has considerable power, feasible transportation, controllable cost, and a large number of applicants. It is undoubtedly the most ideal silicon wafer size standard and module size standard at present.
Haoxuan New Energy Technology Co., Ltd., as a professional Solar Module manufacturer, has launched a new series of 182mm small modules, which is more efficient, more reliable, lower BOS cost & LCOE, and quickly hot-selling.
|
Module |
200M10 |
200M10 |
|
Rated Power-Pm (W) |
200 |
200 |
|
Open-circuit Voltage-Voc(V) |
21.79 |
43.57 |
|
Short-circuit Current-Isc(A) |
11.24 |
5.62 |
|
Working Voltage-Vmp(V) |
18.76 |
37.52 |
|
Working Current-Imp(A) |
10.66 |
5.33 |
|
Module Efficiency (%) |
19.01 |
19.01 |
