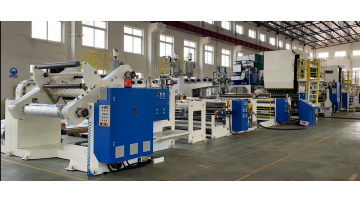

1.Tandem co-extrusion laminating machine for flexible packaging special Patented Technology:
·Chaotic Mixing Low Energy Consumption Extruder
3.Extrusion laminator mechanical speed：
200m/min
300m/min
4、Extruder：4 sets(Manufactured using patented technology of Chaotic Mixing Low Energy Consumption Extruder①)
5、Extrusion output：HL-65 extruder with max. extrusion output of 120kg/h;
HL-80xtruder with max. extrusion output of 200kg/h;
HL-90 extruder with max. extrusion output of300kg/h (When extruding LDPE)
6、Extruder motor power：HL-65 extruder motor power: 22kw;
HL-80 extruder motor power: 45kw;
HL-90 extruder motor power:55kw
7、Resin extruded：LDPE、LLDPE、PP、EVA、EAA、EMA、EMAA, etc. coating grade resin
8、Extrusion thickness：6～40μm
9、Thickness uniformity of manual T-die：≤±5%
10、Diameter of unwind：Max. ф800mm or ф1000mm
11、Unwind substrate：BOPP、BOPET、BOPA、thin paper(20～100gsm)
12、Diameter of sandwich unwind：Max. ф800mm or ф1000mm，Al foil both sides high speed automatic splicing ②
13、Sandwich unwind substrate：BOPP、PET、MCPP、MPET、Al foil、Paper
14、AC coating & Drying：With plain coating roll and gravure coating roll & 4.5m Dryer
15、Diameter of laminating chill roller：ф600mm or ф800mm, double jacket with spiral runner design
16、Diameter of rewind：Max. ф800mm or ф1000mm
17、Tension control：Automatic tension control in unwind, and sandwich unwind with max. tension of 300N. Rewind tension is automatically controlled and control by taper with max. tension of 300N.
18、Tension control：HMI operation; extrusion thickness is precisely automatic calculated by computer and linkage control of the whole machine
19、Inverter: Foreign brand AC digital vector control inverter
20、Plant requirement： 35.5m(L)×14.5m(W)×5m(H)
Note: ① and ② are Huilong Patented Technology
