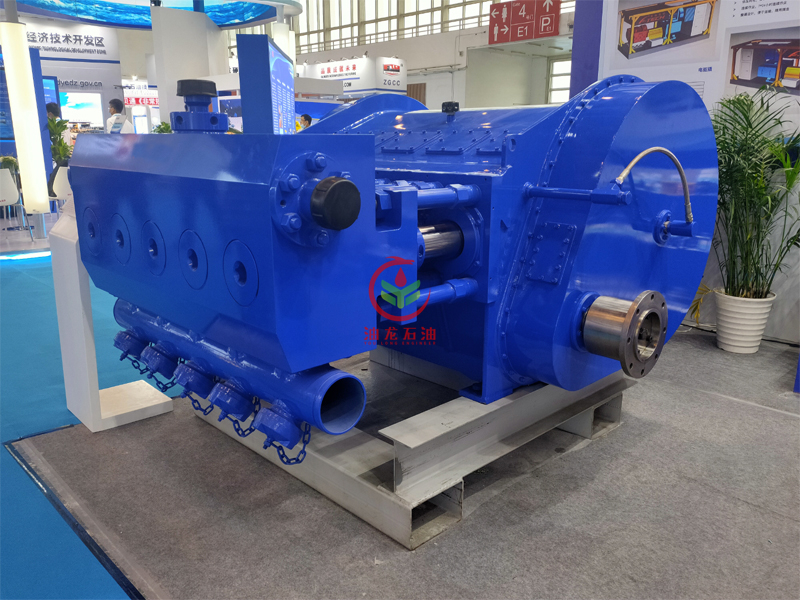

Quintuplex Plunger Pump QWS1000QS Well Service Pump
1000QS five cylinder Plunger Pump is an upgraded version of 1000s. Under the condition that the installation size and performance parameters remain unchanged,the power end assembly structure has been comprehensively upgraded to make the operation of the power end more safe and reliable;The maintenance operation space is increased, which makes the maintenance of hydraulic end more convenient; The modular design is adopted, and the vulnerable parts at the hydraulic end can be exchanged with 600s plunger pump. The braking power is large, which can meet the cementing operation with high pressure and large displacement.
The QWS 1000QS can be utilized in acidizing, cementing, gravel packing and snubbing operations.
QWS 1000QS Performance Specs
Max Brake Horsepower:969Kw
Approx. Length:50Inches(1,270mm)
MaxRod Load Capacity:445 kn
Stroke Length:6 Inches(152.4mm)
Gear Ratio:4.61:1
Overall dimension:1270mm×1911mm×788mm
Weight:3398kg
Specifications and parameters
|
Plunger Diameter |
Output Per Rev |
DISPLACEMENT AT PUMP STROKES PER MINUTE/PINION RPM |
|||||||||||
|
50/231 |
100/461 |
119/548 |
200/922 |
300/1383 |
450/2075 |
||||||||
|
In (mm) |
Gal/Rev (Liter/Rev) |
GPM (LPM) |
PSI (Mpa) |
GPM (LPM) |
PSI (Mpa) |
GPM (LPM) |
PSI (Mpa) |
GPM (LPM) |
PSI (Mpa) |
GPM (LPM) |
PSI (Mpa) |
GPM (LPM) |
PSI (Mpa) |
|
2 1/2in. (63.5) |
0.64 (2.4) |
32 (121) |
20372(140.4) |
64 (241) |
20372(140.4) |
76 (287) |
20368(140.4) |
127 (483) |
12009(82.8) |
191(724) |
8066(55.6) |
287(1086) |
5377(37) |
|
2 3/4in. (69.9) |
0.77 (2.9) |
39 (146) |
16836(116.1) |
77 (292) |
16836(116.1) |
92 (347) |
16836(116.1) |
154 (584) |
9999(68.9) |
231(876) |
6666(45.9) |
347(1314) |
4444(30.6) |
|
3in. (76.2) |
0.92 (3.5) |
46 (174) |
14147(97.5) |
92 (347) |
14147(97.5) |
109 (413) |
14147(97.5) |
184 (695) |
8402(57.9) |
275(1042) |
5601(38.6) |
413(1564) |
3734(25.7) |
|
3 1/2in. (88.9) |
1.25 (4.7) |
62 (236) |
10394(71.6) |
125 (473) |
10394(71.6) |
148 (562) |
10394(71.6) |
250 (946) |
6173(42.5) |
375(1419) |
4115(28.3) |
562(2128) |
2744(18.9) |
|
4 in. (101.6) |
1.63 (6.2) |
82 (309) |
7958(54.8) |
163 (618) |
7958(54.8) |
194 (734) |
7958(54.8) |
326(1235) |
4726(32.5) |
490(1853) |
3151(21.7) |
734(2780) |
2100(14.4) |
|
4 1/2in. (114.3) |
2.07 (7.8 |
103 (391) |
6288(43.3) |
207 (782) |
6288(43.3) |
245 (929) |
6288(43.3) |
413(1564) |
3734(25.7) |
620(2345) |
2489(17.1) |
929(3518) |
1660(11.4) |
|
INPUT POWER: BHP (KW) |
421(314) |
842(628) |
1000(746) |
1000(746) |
1000(746) |
1000 |
|||||||
1. Based on 90% ME and 100% VE - Intermittent Service Only.
2. For applications demanding pressures over 15,000 psi, contact Weir SPM Engineering.
