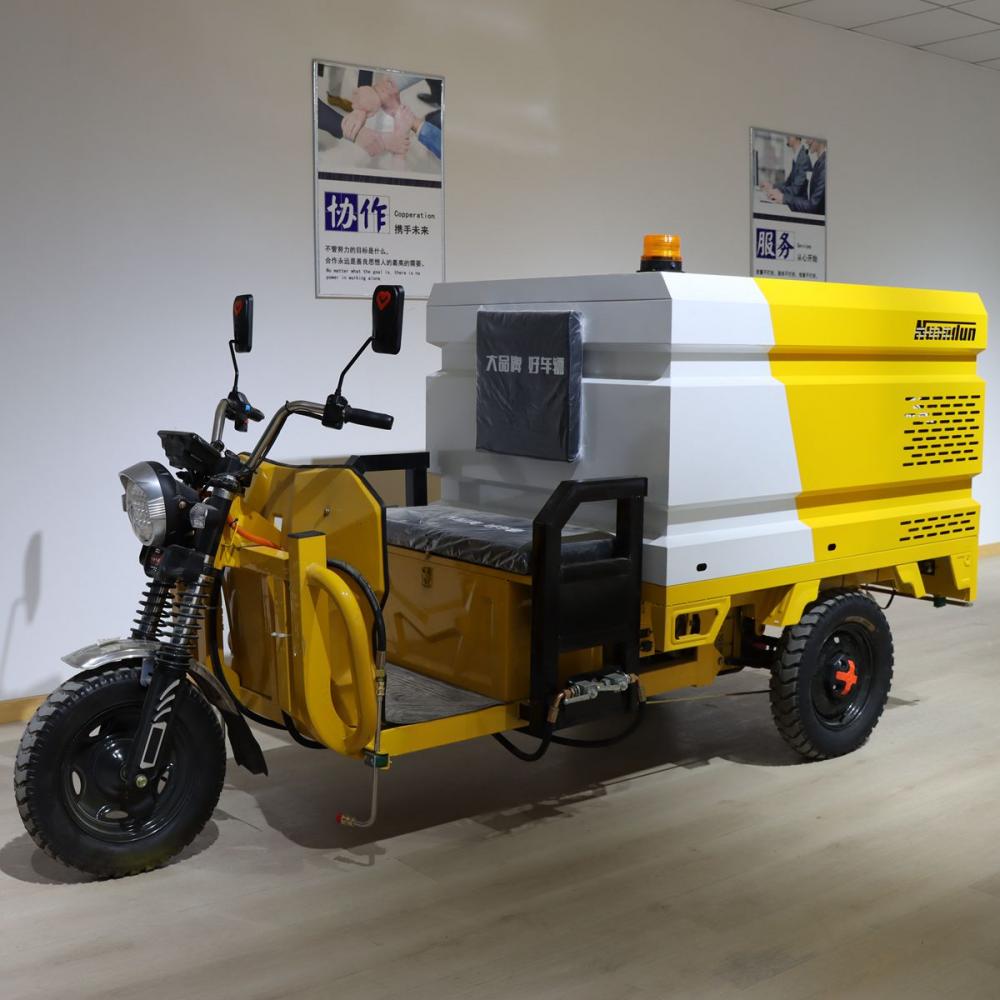

电动三轮雾炮浇水
Special Tricycle has high work efficiency and a wide range of product applications. Special Tricycle is suitable for high-pressure road cleaning, company factory workshop vacuum cleaning, community road cleaning and dust removal, mining areas, parks, schools and other public places cleaning, high-pressure cleaning and flushing, spray gun spraying and other methods to remove secondary dust. High pressure cleaning truck tires have high load-bearing capacity and good friction, greatly improving the usability of the vehicle. The electric high pressure washer multifunctional cycle cleaning head has high rotational speed, large cleaning force, and small volume, which can meet as many needs as possible. Easy to operate, durable, compact in appearance, suitable for narrow streets.
Specification
| serial number | project name | LB-SL1 | ||||
| Chassis parameters | 1 | Chassis type | Load electric tricycle | |||
| 2 | Allowable passenger | 1 | ||||
| 3 | Overall dim | 3100*1150*1430(mm)±30mm | ||||
| 4 | case size | 1600*1050*800(mm)±30mm | ||||
| 5 | wheel base | 1000mm±10mm | ||||
| 6 | wheel track | 2050mm±10mm | ||||
| 7 | Minimum Ground Clearance | 180mm±10mm | ||||
| 8 | minimum turning radius | 3.5 m | ||||
| 9 | maximum gradeability | 30° | ||||
| 10 | max speed | 25 km/h | ||||
| 11 | charging time | 6-8/h | ||||
| 12 | water tank capacity | 600L | ||||

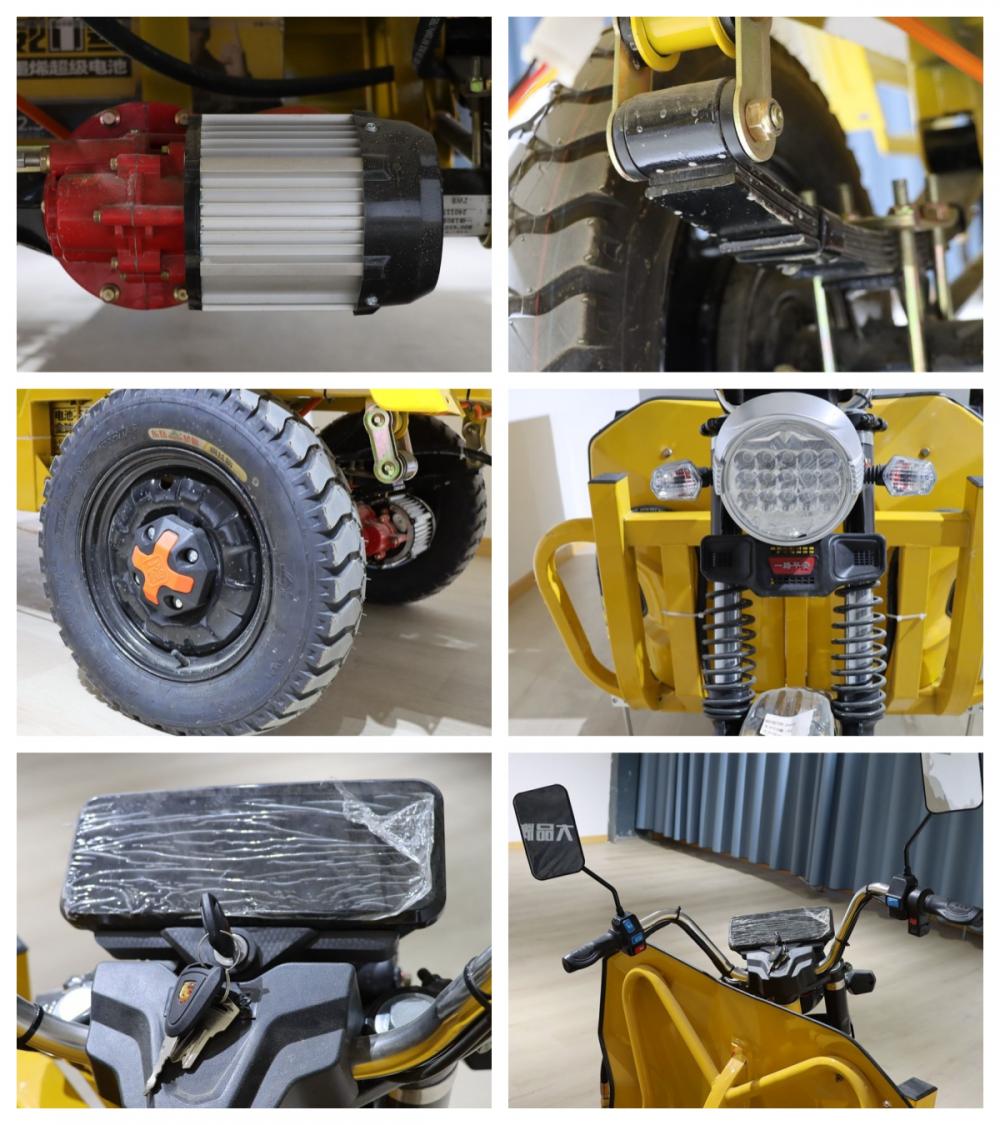

| Electric System | 1 | motor | 1500Whipernikbrushless | |||
| high-power | ||||||
| Differential machine | ||||||
| 2 | electronic control | 60v double 30tubes controller | ||||
| 3 | battery | 60v,maintenance-free battery | ||||
| Size selective | ||||||
| 4 | charging time | 6-8/h | ||||
| 5 | charger | Portable intelligent automatic charger | ||||
| 6 | Lights and signals | LEDlamp, turn signals,brake light, | ||||
| driving lamp | ||||||
| ,instrument,electric horn,Work alert(Optional), etc | ||||||
| 3 | selective | electric pump | ||||
| 1500W(130kg) (10L/min) | ||||||
| 4 | electric pump | |||||
| cleaning system | 4000W(200kg)(15L/min) | |||||
| 5 | Lifan engine(250kg)Zhejiang Danong brand(18L/min) | |||||
| 6 | Single tank water flushing time | 35-60 min | ||||
| 7 | Effective width of left and right side impact | 6-9 m | ||||
| 8 | Effective distance after sprinkling | 4-6 m | ||||
| 9 | Print head | 0°15°25°45° | ||||
| chassis system | 1 | frame | Integrated welded girder+Pickling electrophoretic phosphating baking paint | |||
| (Frame lifetime warranty) | ||||||
| 2 | power transmission | Rear-drive with forward and reverse gear and mechanical shift | ||||
| 3 | diversion | Tap handle steering mechanism | ||||

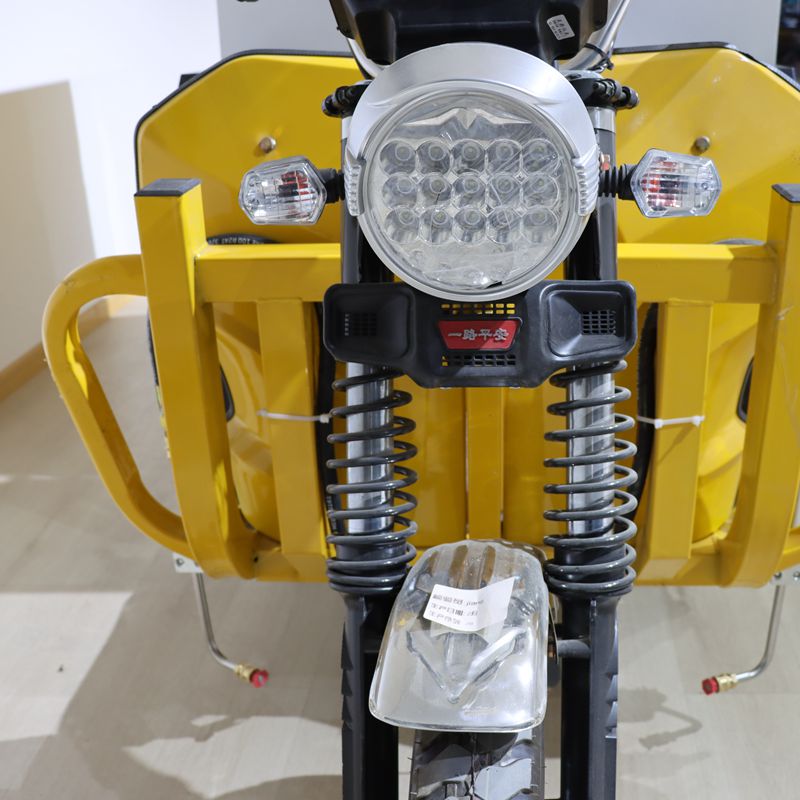

| 4 | hanger bracket | Front suspension: Bold 43# double barrel with helical spring front fork | ||||
| Rear suspension: non-independent suspension | ||||||
| 5 | rear axle | Split differential rear axle | ||||
| 6 | braking | Foot mechanical link drum rear wheel brake + left hand handle soft axle front wheel brake + manual mechanical parking brake | ||||
| 7 | tyre | front wheel:400-12 rear wheel:450-12 | ||||
| Car body | 1 | headstock | ox-head | |||
| 2 | dashboard | Instrument panel, power lock, instrument, combination lift | ||||
| 3 | seat | Leather soft seat + leather soft back | ||||
| 4 | simple shed of supply department | Plastic shed or iron shed (optional) | ||||
| 5 | paint | Premium automotive paint | ||||
