IP68 Ultrasonic Sensor Range Level Gauge
This ultrasonic sensor level gauge has a IP68 standard protection rating. With RS485 interface, the measurement data signal can transfer up to hundreds meters. It's great for some smart IoT industry applications, like manhole, factory water tank, tank, municipal engineering, tap water, sewage treatment, water conservancy and hydropower etc. How about your project? Welcome to contact to discuss.
Outstanding Technological Advantages:
1. Low power consumption ultrasonic level meter;
2. High protection standard up to IP68, strong anti-interference capability;
3. High sensitivity, high precision, high durability.
Technical Parameters:
Measuring range: 0.25m~3m (5m customizable)
Supply voltage: 3.3... 30 VDC, ripple 10% SS
Power consumption: 1.The sleep state is less than 0.3mA. 2. The wave state is less than 20mA. 3.The detection status is less than 5mA.
Output signal:
1. 0-3V, 0-5V/4-20mA/NPN/PNP/TTL;
2. RS485 Modbus.
Measurement accuracy: ≤ 1% (0.5% in laboratory)
Temperature compensation: Yes
Working environment temperature: -25... 70℃ (248... 343K)
Storage temperature: -40... 85℃ (233... 358K)

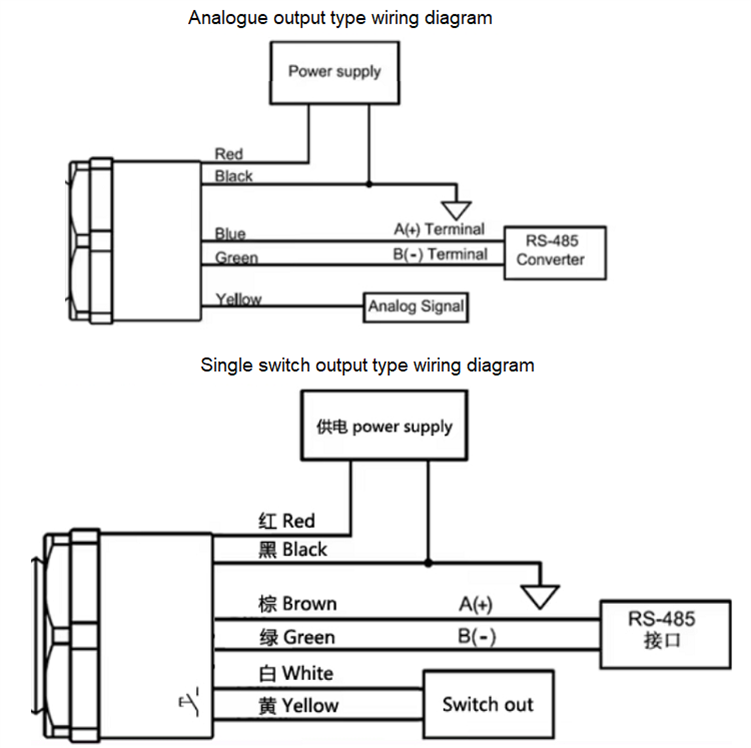

Electrical connection: 5 /6 core cable
Protection level: IP68
Shell material: PVDF

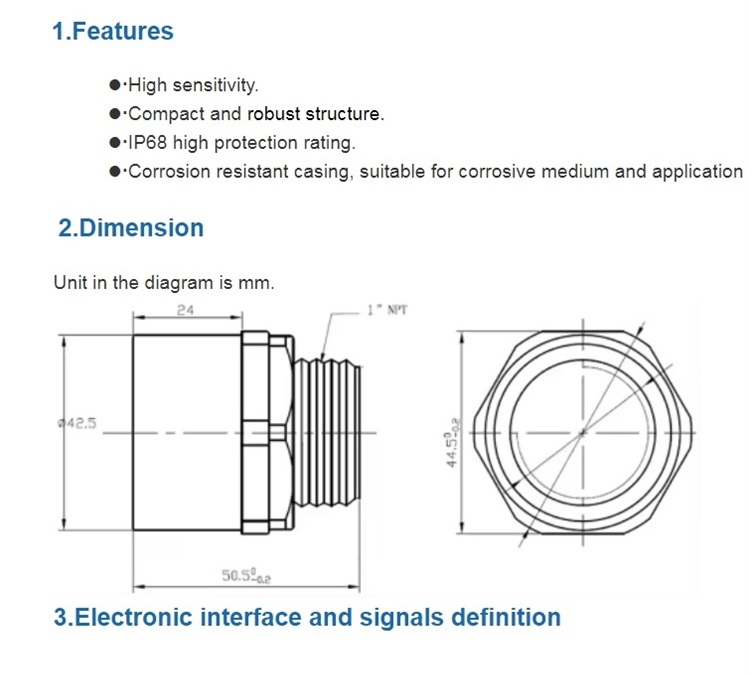

Mechanical Dimensions

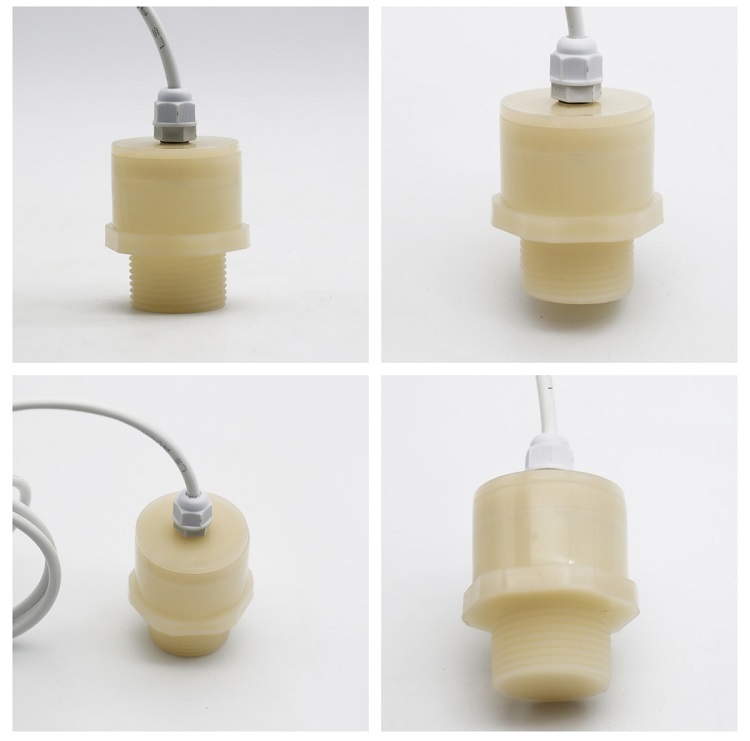

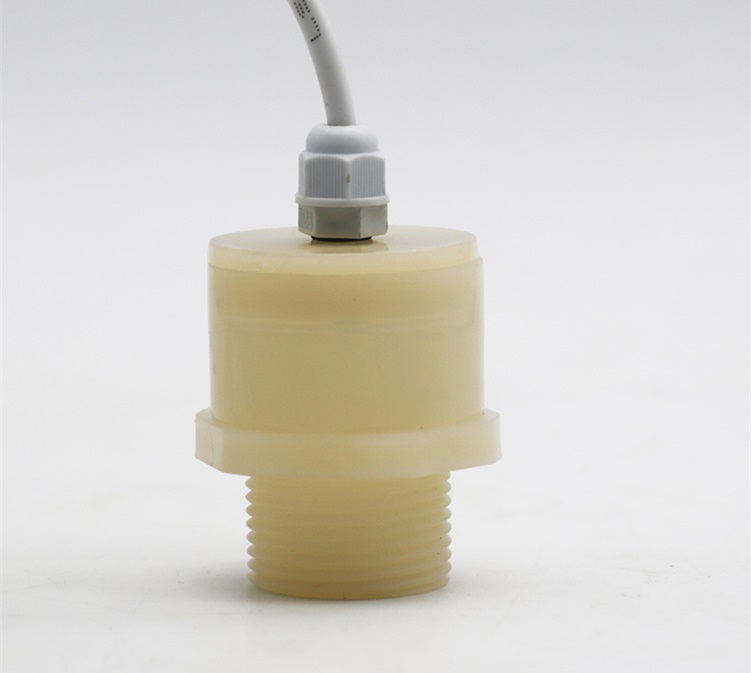

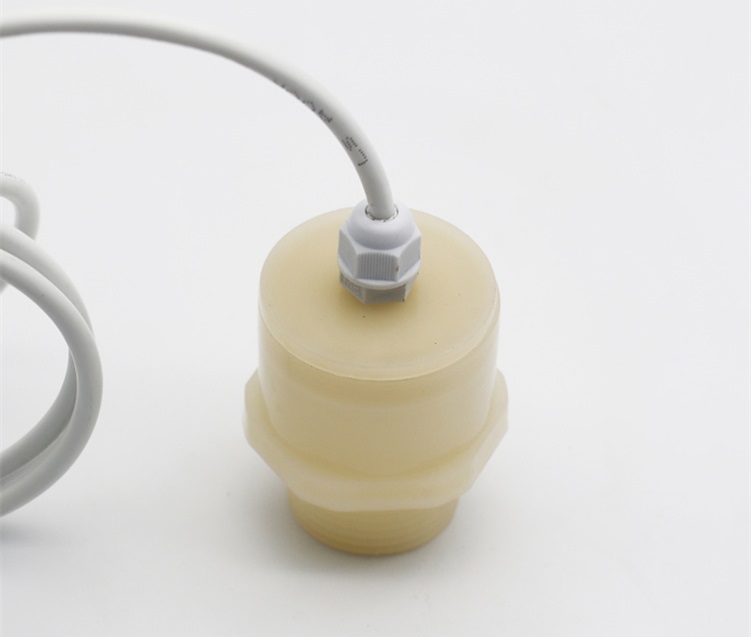

More Detailed Pictures
This ultrasonic level sensor, with IP68 protection, so that usually the popular model of level gauge used for water tank, manhole, colliery, transportation etc mart IoT industry.
It's really really a small size, easy to integrate.(24*Φ42.5mm)
Applications
Customers will use this for power industry, intelligent transportation, smart home, etc. With automated measurement system, the ultrasonic module can be realized water level height.
Package for your Ultrasonic Water Sensor sampels
Chengdu JRT Main Smart Devices: Industrial Laser Distance Sensors, Rangefinder Sensor , Tof LiDAR Sensors, Measuring Tool Instruments.
