Product details

Hot-dipped galvanized iron wire

Hot dipped galvanized wire belongs to the primary wire products of galvanization. Hot dipped galvanized iron wire is made with choice low carbon steel wire, through wire drawing, wire annealing,rust removing and acid washing, zinc plating and coiling. The common sizes of hot dipped galvanized are from 8 gauge to 16 gauge, we also accept smaller or bigger diameter for customers' choices. Hot dipped galvanized wire with firm zinc coating provides strong corrosion resistance and high tensile strength. This kind of wire is widely used for making handicrafts, woven wire mesh, forming fencing mesh, packing products and other daily uses.

Size range: BWG 8-BWG 22

Zinc coat: 40-240g/m²

Tensile strength: 35-70kg/mm²

Elongation: 10%-25%

Packing: 0.1-1000kgs/coil, coil with plastic inside and hessian cloth outside or weave bag outside

Best quality 10 gauge steel wire galvanized steel wire

Specifications

1.Diameter range: 0.2-4.5mm
2.Tensile Strength: 300~1850 N/mm²
3.Standard: GB4357, DIN17223, JIS G 3521, A227, EN10270

4.Main application: making spring, mattress, wire rope.
5.Packing: pack in plastic spool, reel, bag, drum, carton and so on
Steel wire material:

SAE1006, SAE1008, SAE1010, Q195, Q235, C45, C50, C55, C60, C65, 65Mn, C72A, C72B, C80, C82B, CT9A, GCr15, AND SO ON
The Raw Material: (45#, 60#, 65#, 62A, 72A, 65Mn, 70#, 82A, 82B, T9A, SAE1008, SAE1006, 18A, 22A)

Steel Grade GB Standard	Carbon %	Silicon %	Manganese %	Phosphorus %	Sulphur %	Chromium %	Nickel %	Cuprum %
60#	0.60-0.61	0.18-0.22	0.52-0.59	0.012	0.007	0.06-0.07	0.05	0.18
65#	0.65	0.21	0.56	0.013	0.008	0.05	0.04	0.14
65Mn	0.60-0.70	0.10-0.25	0.70-1.00	0.030	0.030	0.20	0.20	0.25
70#	0.69-0.71	0.19-0.21	0.53-0.58	0.010-0.012	0.003-0.006	0.01-0.05	0.02-0.04	0.04
72A 72B	0.72	0.19	0.71	0.013	0.006	0.02	0.02	0.03
80#	0.80-0.81	0.22-0.24	0.59-0.76	0.008	0.004	0.04
82A 82B	0.82	0.24-0.25	0.76-0.77	0.011-0.014	0.004-0.007	0.17-0.17

Galvanized Iron Wire

Galvanized Steel Wire Galvanized Iron Wire

BWG
Gauge	Diameter(mm)	Tensile Strength(n/mm2)	Zinc Thickness(g/m2)	Weight of unit coil(kg)
5.5~6#	5.00	300~1500	30~100	400~600
7#	4.57	300~1500	30~100	400~600
8#	4.19	300~1500	30~100	400~600
9#	3.76	300~1500	30~100	400~600
10#	3.40	300~1500	30~100	400~600
11#	3.05	300~1500	30~100	400~600
12#	2.77	300~1500	30~80	400~600
13#	2.41	300~1500	30~80	400~600
14#	2.11	300~1500	30~80	400~600
15#	1.83	300~1500	30~80	400~600
16#	1.65	300~1500	30~80	25~500
17#	1.47	300~1500	30~80	25~500
18#	1.24	300~1500	≥12	25~500
19#	1.07	300~1500	≥12	25~500
20#	0.89	300~1500	≥12	25~400
21#	0.81	300~1500	≥12	25~400
22#	0.71	300~1500	≥12	25~200
23#	0.64	300~1500	≥12	25~150
24#	0.56	300~1500	≥12	10~150
25#	0.51	300~1500	≥12	10~100
26#	0.46	300~450	≥12	10~50
27#	0.41	300~450	≥12	10~50
28#	0.36	300~450	≥12	10~50
29#	0.33	300~450	≥12	10~50
30#	0.30	300~450	≥12	5~20
30.5#	0.28	300~450	≥12	5~20

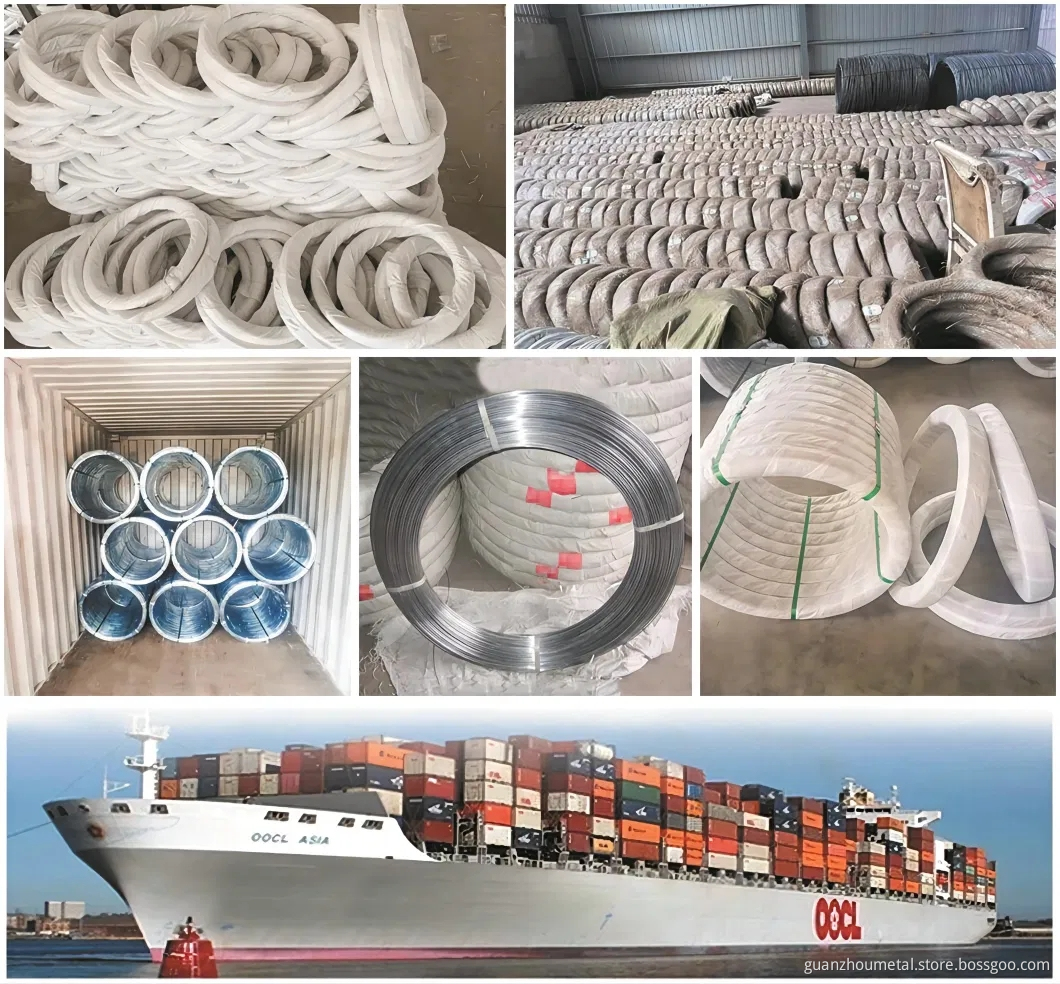

Packaging And Transportation

Galvanized Iron Wire

If you have any question, please feel free to contact me by the email or telephone!

Mainly products cover Carbon Steel Plate, Mild Steel Plate, Ship Building Steel Plate, Pressure Vessel Steel Plate, Wear Resistant Steel Plate, Weather Resistant Steel Plate, Galvanized Steel Coil and Prepainted Steel Coil, Carbon Steel Coil, Carbon Steel Pipe, Honed Tube, Steel Section, etc.
