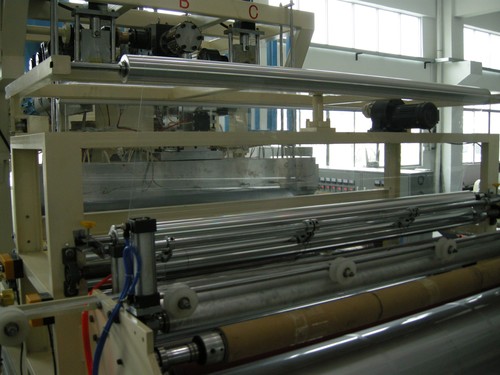

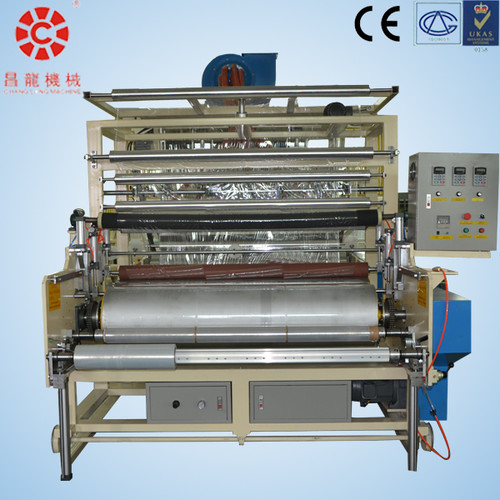

Three Layer PE Co-extrusion Stretch Film Machinery CL-65/90/65A

Product Description :

1.Thickness adjustment scope:10µm-50µm;

2.Screw Diameter : 65/90/65mm

3.Width of effective film:1 500mm(max) or 3*500mm ;

4.Structure of film layers:A/B/C or A/C/B/C/A Co-extruded;

5.The fit material:LLDPE;

6.Extrusion capacity(max):250kg/h.

7.Line Speed: 150m/min

8.Overall Dimensions(L*W*H) : 9.6*4.6*4.4m

9.Total Weight : 16T

8

559065a-5





Features


1. The alloy screw adopts special mixing refining function and high plasticity design ,

this unit consists of import static state mixer to ensure good plasticity and high quality output.

2. The winding system apply air knife online device, which can automatic cut different thickness film.

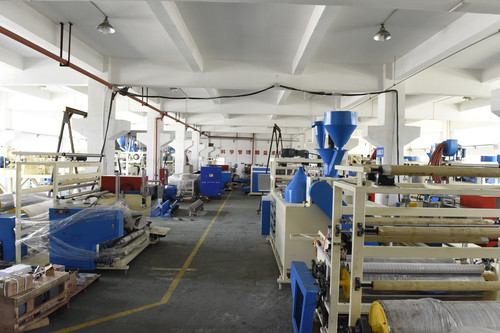

Workshop

_DSC3123

DSCN8187

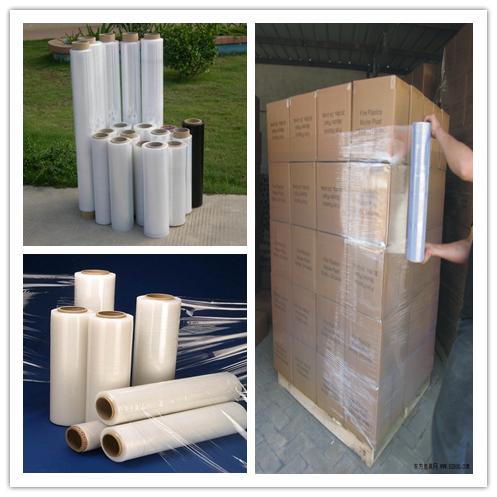

Application


The film can be widely used in wrapping of pallet packaging,

storage packaging, manual packaging and so on.

ap

Packing :

The seller provides the simple pearl wool with film package & wooden motherboard

pack

11



CERTIFICATE :

CE certificate

ISO90012008

Service team

service


shouhou


Warranty period and testing procedure:

The seller freely provides the fittings during the warranty for 12 months with the maintenance forever

when the equipment is tested OK. (Human factor and force irresistant factor exception.)

The seller provides the debugging and setting, Seller free to provide about two weeks training

and provide the round-trip ticket but other traveling costs should be paid by buyer.
