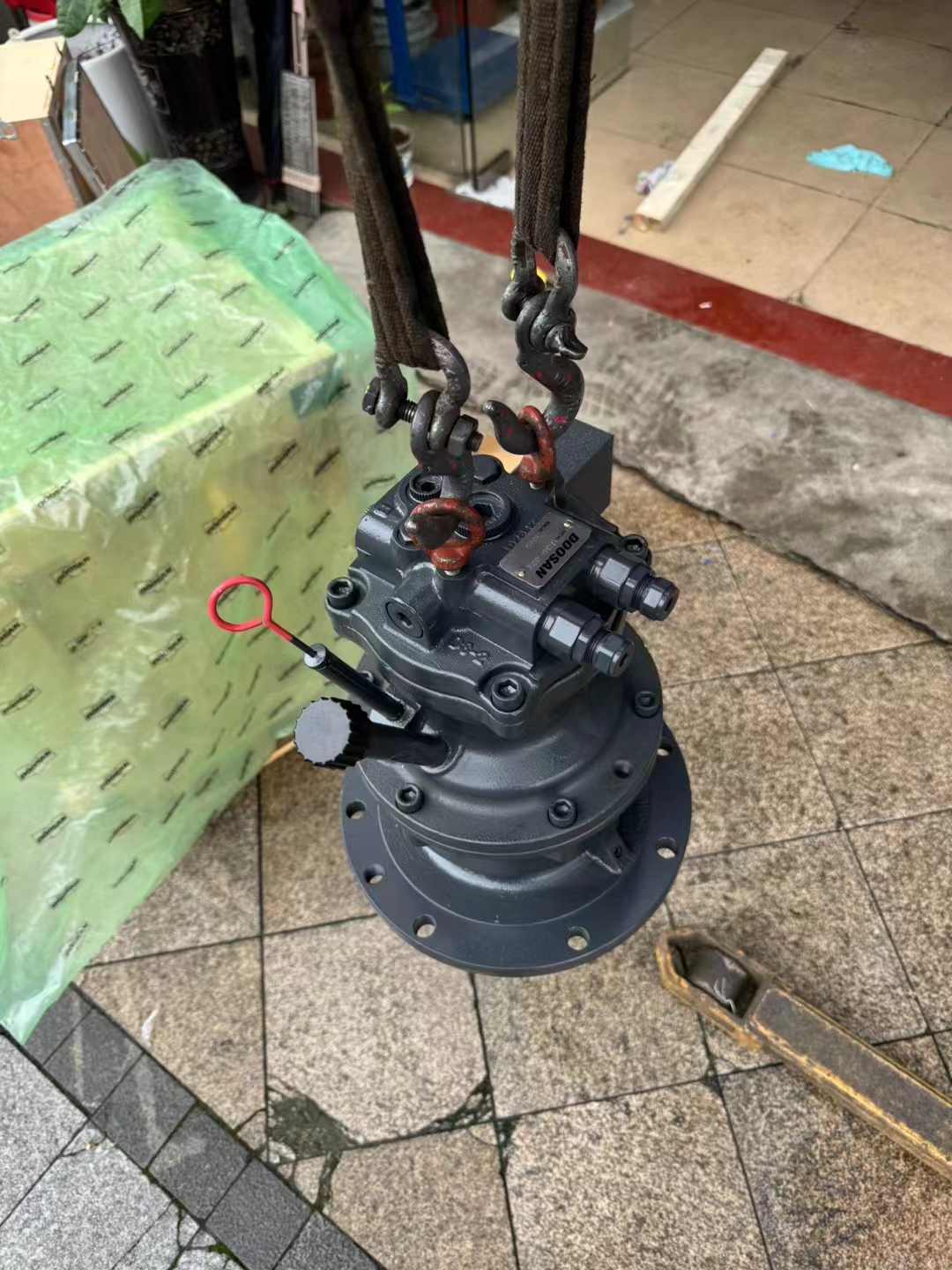

hydraulic swing motor assembly

11 month ago

29 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 3 year year

Product details

it is a process that requires precision and careful handling. Here is an overview of the assembly process, along with a point-by-point representation and summation based on the relevant information:

I. Preparation

Thorough Understanding of the Working Principle: Before installation, it is essential to have a deep understanding of the working principle of the hydraulic swing motor, including its components, movement modes, and interactions with other hydraulic components.

Inspection of Components: Check each component's model, performance, and the sensitivity and accuracy of display devices against the installation specifications. Ensure that all components meet the design requirements and are free from damage or defects.

II. Installation Steps

Base Installation: The base of the hydraulic swing motor should be installed on a plane with sufficient rigidity to ensure stability and prevent vibration.

Motor Connection: Connect the motor to the drive shaft of the hydraulic swing motor. Special attention should be paid to the coaxiality requirements, with the eccentricity typically less than 0.1mm and the angular deviation of the two axes' centerlines less than 1°.

Pipeline Connection: Connect the inlet and outlet of the hydraulic swing motor to the corresponding pipelines in the hydraulic system according to the hydraulic system pipeline connection diagram. During the connection process, ensure the tightness and sealing performance of the pipeline joints to prevent oil or air leakage.

Debugging and Testing: After the assembly is complete, debug and test the hydraulic swing motor. This includes checking for smooth rotation without sticking or jamming, as well as its performance under actual working conditions.

III. Precautions

Cleanliness: Ensure the cleanliness of all components and pipelines during installation. Use clean cloths or paper to wipe the component surfaces and pipeline interiors to prevent dust, impurities, or other contaminants from entering the hydraulic system.

Sealing Performance: The sealing performance of the hydraulic system is crucial for its performance. When connecting pipelines and installing components, pay special attention to checking and confirming the sealing performance to prevent oil or air leakage.

Safety: Adhere to relevant safety regulations and operating procedures during installation and debugging. Ensure the stability of the power supply and hydraulic source, as well as the safety of operators, especially when connecting to the power supply and hydraulic source.

In summary, Hydraulic Swing Motor Assembly is a process that requires precision and careful handling. By following the above steps and precautions, you can ensure the correct installation and reliable operation of the hydraulic swing motor.
