YESWITCH IP67 X7-H Series High Current 16A Rocker

11 month ago

36 0

YESWITCH ELECTRONICS CO., LTD.

 7 year year

Product details

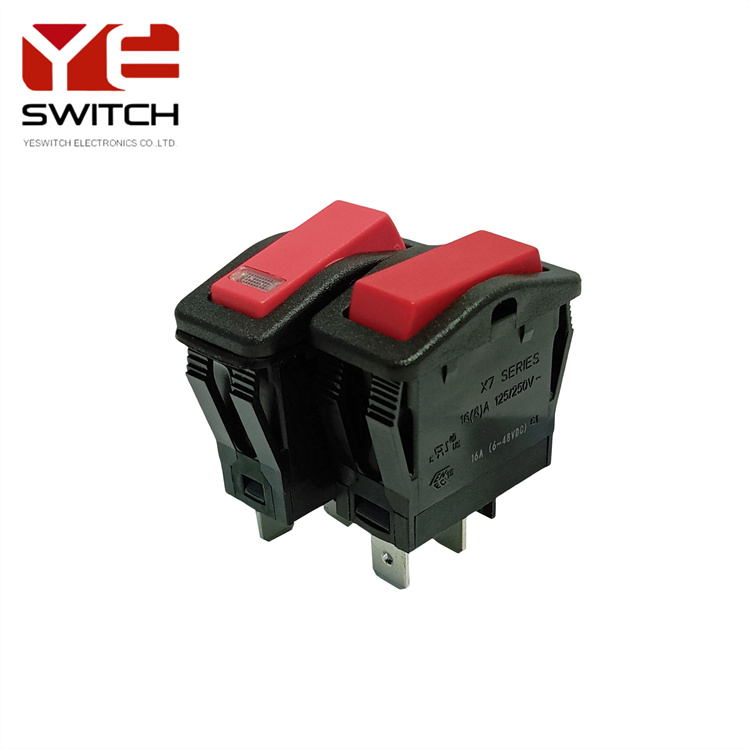

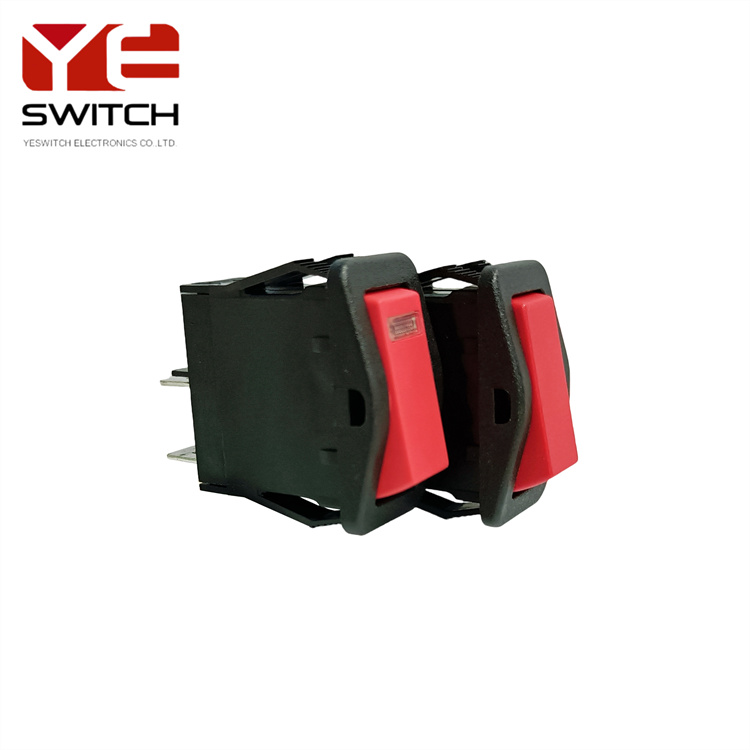

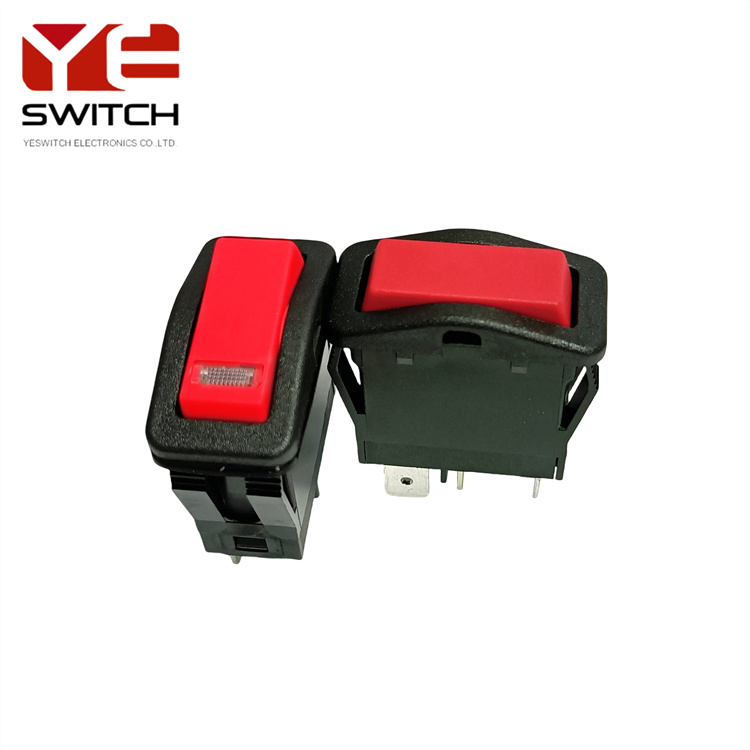

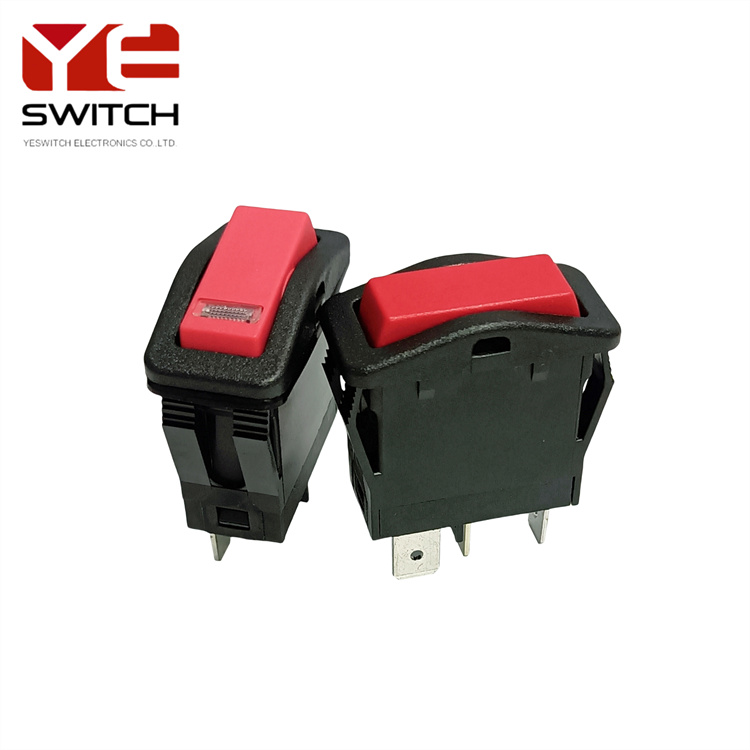

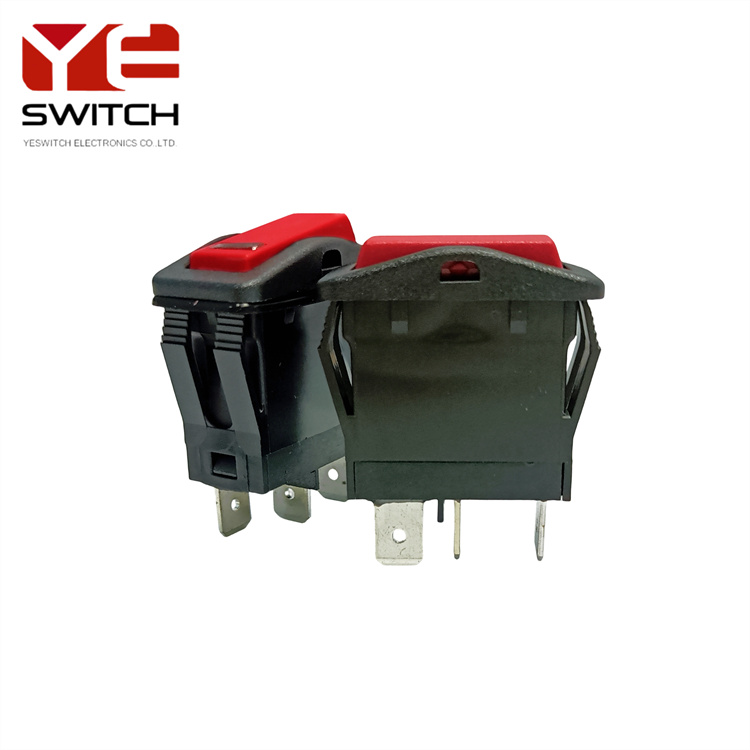

YESWITCH IP67 X7-H Series High Current 16A Rocker Switch

YESWITCH X7-H Series rocker switches have 16A high current,which can meet the needs of various electrical appliances,such as ships,construction equipment,agricultural equipment,recreational vehicle,landscaping equipment and industrial equipment.It is a very practical switch products.

The automotive rocker switches provide two options with illuminated and without illuminated,with the color of the LED has red,orange,blue,green,yellow,white and other options,can meet the needs of different users.

The red single pole rocker switch with IP67 lever,even in harsh environments can be used normally.And the rocker switch has the momentary and self-lock function,which means that the switch can be automatically reset to the initial position,avoiding the cumbersome and unsafe factors of manual operation.

The DC rocker switch has ON-OFF,ON-OFF-ON.ON-ON,( 63471366,ON)-OFF,( 63471367,ON)-ON,( 63471368,ON)-OFF-(ON) and (ON)-OFF-ON function,to facilitate users to carry out different control needs.The 16A rocker switch reach 1500VAC 1 minute dielectric withstand voltage and 500VDC 100m ohm insulation resistance.

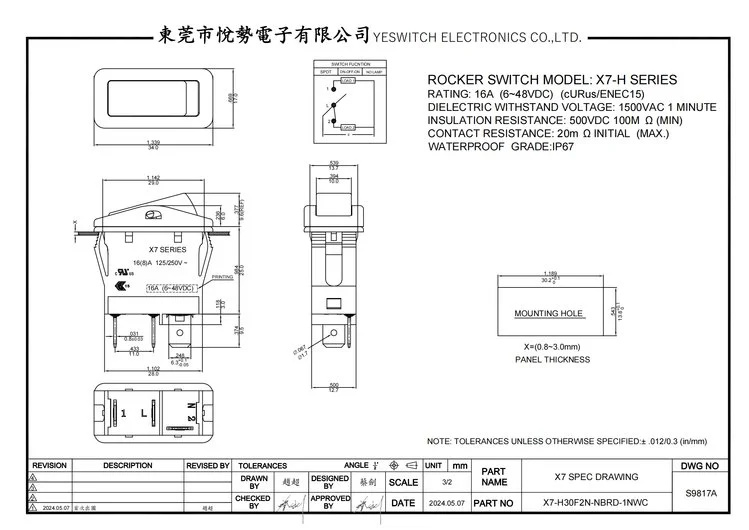

SPECIFICATION

ROCKER SWITCH MODEL: X7-H SERIES
RATING:16A(6-48VDC)(CURUS/ENEC15)
DIELECTRIC WITHSTAND VOLTAGE: 1500VAC 1 MINUTE
INSULATION RESISTANCE: 500VDC 100MΩ(MIN)
CONTACT RESISTANCE: 20MΩ INITIAL (MAX.)
WATERPROOF GRADE:IP67
