Product Description
Main uses:
The machine is composed of main motor, auxiliary motor and electrical control cabinetwiththe capabilities of winnowing, nonsieve or mesh equality of granule size and continueinuous processing,etc.It meets the international advanced level and issuitable for the material grinding by the trade of and foodstuff etc.
Working principle:

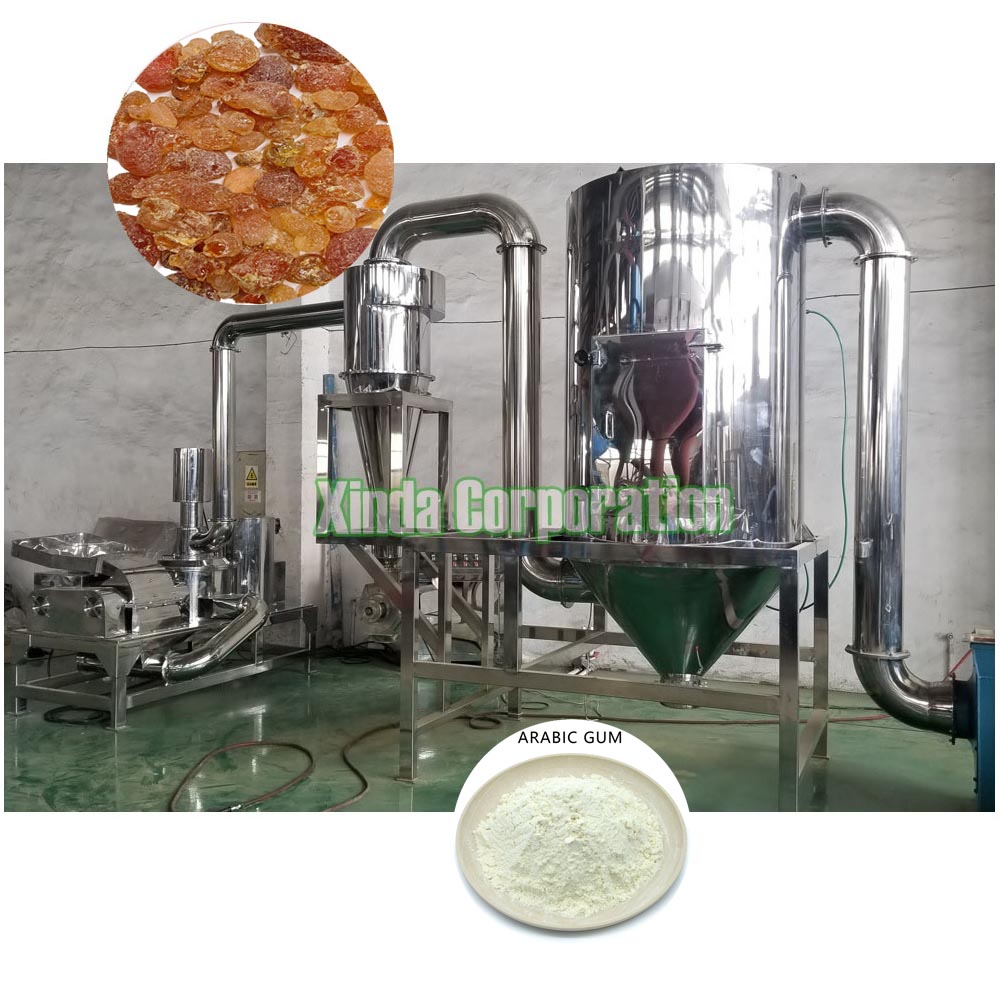

Raw material is delivered to the grinding chamber via hopper by spiral feeder Ind is cut andsheared by the high speed cutters, then the material is moved into thewhirlwind separator and the sack dust catcher by the negative pressure sucking The dust is collected and recycled via cloth bag or filter of dust absorption box .There is no dust flyingduring production,so as to improve the utilization and rease the production cost.
Technical Parameters:
MODEL | WFJ-30 | WFJ-60 | WFJ-80 | WFJ-110 |
Capacity (kg/h) | 80-800 | 100-1200 | 150-2000 | 200-3000 |
Size of input granules (mm) | ≤10 | ≤12 | ≤15 | ≤20 |
Fineness of products (mesh) | 60-450 (inverter adjustable) | 60-450 (inverter adjustable) | 60-450 (inverter adjustable) | 60-450 (inverter adjustable) |
Total Power (kw) | 46 | 85 | 120 | 160 |
Main shaft Speed (rpm) | 3800 | 3200 | 2800 | 2000 |
Weight (kg) | 1800 | 3200 | 4200 | 6500 |
Overall size (L×W×H) (mm) | 6450×1800×3150 | 7500×2300×4530 | 8200×2500×4700 | 9600×2800×5200 |
