Sand Washing And Recycling Machine

Sand Washing And Recycling Machine

4 year ago

109 0

Hebei Ladery Import & Export Co., Ltd.

 4 year year

Product details

Product Brief Introduction

Sand washing and recycling machine integrate water washing and fine sand dewatering and recycling as a whole, so it is also called sand washing and recycling conjoined machine, fine sand recycling and dewatering integrated machine, mud and sand washing and separating equipment. This machine cleverly connects the fine sand recycling machine with the sand washing machine, the structure is reasonable, the floor space is small, and the cost is lower than the price of the two types of equipment.

Sand washing and recycling machine is mainly divided into sand washing parts and fine sand recycling parts; the sand washing parts have the same functions as general wheel sand washing machines, and are used for water washing, dehydration, and mud removal; and the recycling parts can be combined according to customer needs If you need fine sand recovery, you can connect to a general fine sand recovery system. If you need fine sand dewatering, you can connect a dewatering type fine sand recovery machine. If you need different sand production effects, you can also configure a multi-layer dewatering screen. The sand washing and recycling machine is composed of a pressure separator, a dewatering screen, an impeller separator, a reducer, a vacuum, a pressure pump, a cleaning box, a return water tank, a motor, a vibration motor, and other components.

Company Overview

Our company mainly produce mining machinery, construction machinery and other relevant series of equipment. The products have passed ISO9001:2000 international quality management system certification and EU CE certification. The products are exported to Russia, Kazakhastan, Azerbaijan, Turkey, Kuwait, South Africa, Egypt, Vietnam, Malaysia, India, Australia, Canada, the European Union and other countries and regions.

Company Photos

Product Description

According to the dfferent structure of the equipment, it can be divided into wheel type sand washing and recycling machine, Screw type sand washing and recycling machine. No matter what kind of recycling equipment, it can play a great value in artificial sand, machine -made sand production line, coarse slime recovery of coal preparation plant, etc.. and complete the recyecling operation.
After the preliminary treatment, the materials are sent to the cleaning tank, separated by the rotary separator, and then enter the dehydration screen. Atter dehydration by the dehydration screen, the fine sand and water are effectively separated. and a small amount of fine sand and mud are returned to the cleaning tank through the return tank, realizing the recycling of fine sand and the reuse of water resources, with good energy- saving effect. When the soil content in the cleaning tank is too high. the sediment mixure and water ad added to the cleaning tank will raise the finally discharge from the water outlet.

Features of Sand Washing Aan Recycling Machine

1.Higher sand quality, lower moisture content.
2.Recycled fine size 0.16-3mm sand, lower mud content.
3.Compact structure, multiple functions, easy install, convenient maintenance, small occupation area.
4.High capacity, after this machine 95% sand can be washed.
5.Solve sedimentation tank cleaning problem, higher economical profit.

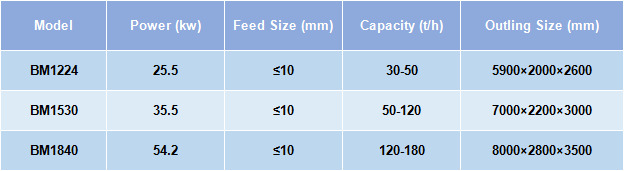

Main Technical Parameters

Sand Washing And Recycling Maching Main Technical Parameters

Packing & Shipping

After Sales Service

Firstly ------ Your raw material information

I will provide you the most suitable jaw crusher machine accroding to your raw material information. Such as I need to know your raw material; your production capacity; your final product's requirements.

Secondly ------ Guidance

If customers plan to visit my factory, I will pick customers up at the airport, and then accompany with customers to test jaw crusher machine in my factory. We can chat the most suitable machines' Commercial Invoice in my factory, and do the cooperation.

Thirdly ------ After-sale service 1

Our factory will prepare jaw crushers after receiving the down payment. Normally, after 5-25days preparing time, my factory will finish the machines' preparing, and then test machines for you, and I will send the testing effect to customers. Then after customers are satisfied with the testing effect, then customers will plan to send the down payment to my factory, then we load machines for customers.

Finally ------ After-sale service 2

After customers receiving the machines, my factory will dispatch technicians to install machines for customers, and teach customers how to operate machines.

FAQ

1.How to buy a machine i want to have ?

Please tell us more details if you like, normally, we need: a, what kind of the stone it is, b, how about the input size and output size you want, c, capacity. d, Any other requirement.

2.How about the quality guarantee?

Our material is checked carefully before buy them from brand supplier, so that guarantee the original quality. During the producing, every step will be recorded. When we get the finished products, we have more than 24 hours testing. Products quality is guaranteed for one year. We have a 24 hours response system, any thing the customer required will be handled with within 24 hours. If the customer required, we can get the project place within 72 hours.

3.How to get the wear parts supports?

We supply the wear parts with very favourable price. Especially for the present cooperated customer, wear parts will be supplied without any benefits as a long-terms cooperation support.

4.Our advantage:

A, quality guarantee but cost less. B, Good after service and no benefit supply in wear part. C, 12 hours response to customers' requirement and 72 hours technician on site guiding.
