DN50 PVC Ball Valve CNS DIN ISO model PV131W is an new designed economic type pvc ball valve for water use only. it has light torque for manual operate. socket and thread connection with standards ANSI DIN JIS CNS BSPT, size from 1/2" to 4", PVC true union ball valve is completely made by PVC body with EPDM seal and TPE seat, it is suitable for water supply, water treatment, swimming pool, fish farm, agriculture and irrigation. working pressure by PN10/PN16, temperature from 0 degree to 70 degree.
PVC True Union Ball Valve model PV131W with specifications as follows:
Basic specification
Size: 1/2 inch ~ 4 inch
Body Material:PVC-U
Seal material:EPDM
Seat Material:TPE
Socket connection:ANSI DIN JIS CNS BSPT
Design pressure:1.0Mpa(PN10 bar)
Feature of valve
All the parts that will touch medium is made from plastic and rubber.
Self sealing ball design make valve sealing better

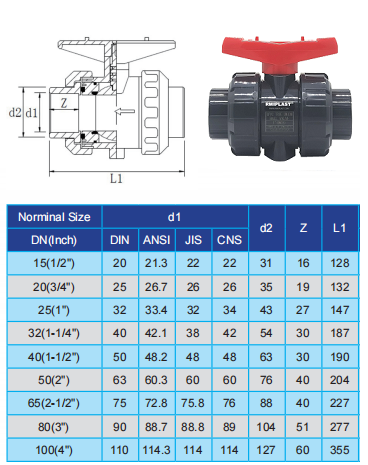

Dimension
