Rough drawing LZ7/560 drawing machine (wire drawing machine) line include the following machines
1-Wire drawing machine 2-Layer winding machine or 3-Drum packing machine 4-Anealing furnace the assisting machine are butt welding machine and pointing machine
1 Machine included:

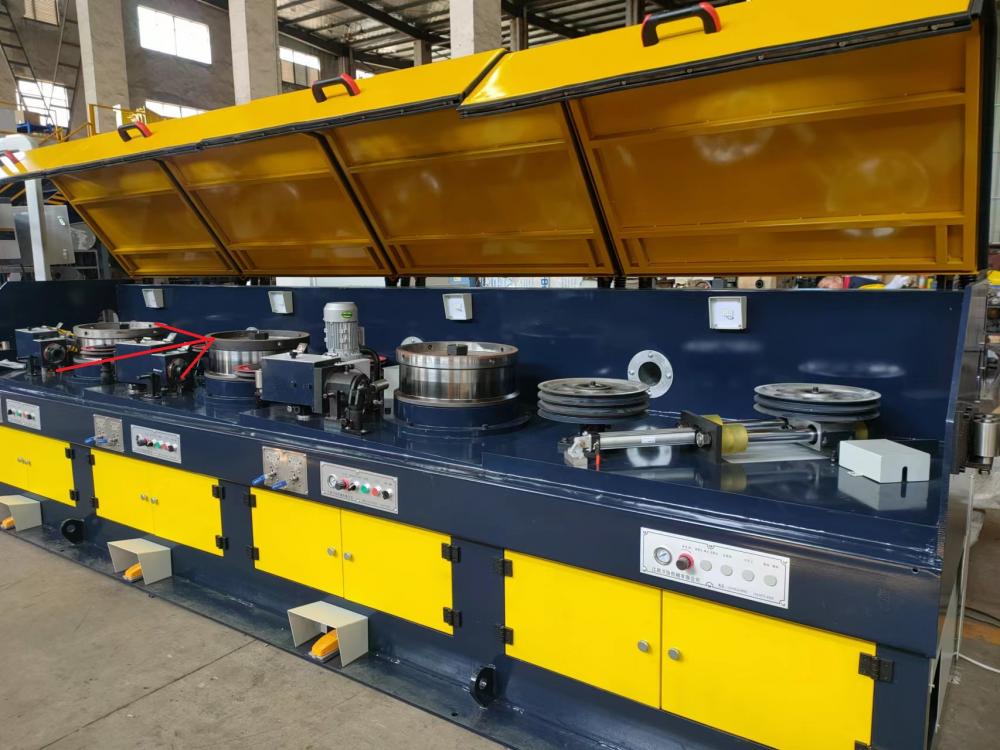

(1) LZ7/560 straight line drawing machine
(2) tensile rack devices
(3) Ф600 trunk type take up machine
(4) with human-machine interface touch screen control work station
(5) complete electrical control cabinet
2main technical parameters and points:
(1) biggest inlet strength: 700MPa or less
(2) biggest inlet diameter: Ф7.0mm
(3) minimum outlet diameter Ф2.7mm
(4) max compression ratio: 85.1% each block reduction is 23.8%
(5)the highest speed 10m/s, normal speed: 6-8m/s(finished wire 2.7mm)1.0 ton one hour
(6) water and water pressure: 6m³/h water pressure 0.25 Mpa or more
(7)air and pneumatic: 2.0 m³/h Air pressure 0.6 Mpa or more
(8)motor :(1) the main motor: the first block 30KW, and the rest 22KW, ac conversion motor
（2）Take-up machine :15KW ac frequency conversion motor
(9) block: straight line type: diameter is 560mm----seven blocks
2 block materials: stainless steel,ZG45 - 55,working surface, tungsten carbide spraying alloy powder, hardness more than HRC60 finish.32 Ra or less
3 Using life: two years or more, since wear chamfer, free replacement.
4 block cooling way: inner by slit type water-cooling
(10)mould box adopts welded parts, surface of guide wheel or roller spraying tungsten carbide rod, using life is one year, since wear chamfer, free replacement.
(2) mode box body are two parties: lubrication powder body and the water body of indirect cooling
3 mode box can be adjusted universally to ensure the angle of wire drawing machine
(11) tuning roller: adopt pneumatic anti-tension tuning, tension as per and the air pressure for adjusting, guide wheel is WC spraying, guide service life assurance for more than one year.The angular sensor,is Germany imported of non-contact sensor,die arrangement is wide, die automatic compensation after wear,no break-off
The next step is layer winding machine or drum packing machine,or annealing furance.
The assisting machine is butt welding machine,pointing machine,and so on
