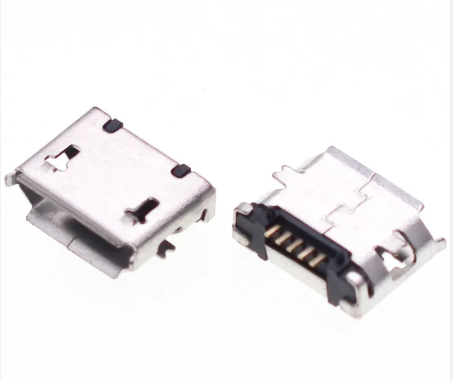

Micro USB SMT Type Female Connector
A micro USB SMT (Surface Mount Technology) type female connector is a component used in electronic devices for connecting and charging. It's designed for surface mounting onto a printed circuit board (PCB). This type of connector typically has a small form factor and is commonly found in various electronic devices like smartphones, tablets, and other portable gadgets. The female connector allows for the insertion of a male micro USB plug, facilitating data transfer and power charging.

Overview:

*Small footprint

*Stainless steel shell

*Lead-in feature on receptacle housing

*Simple edge-contact beam geometry of connector shell

*Overmold process used for receptacles

*Passive latching window with angular tabs on receptacle shell

*Rear shield of stainless steel shell in standard mount parts

*Pick and place area on connector shell

Feature:

1.Material:

1.1 Housing: High temperaturethermoplostic with g.f,UL94v-0

1.2 Contact:copper alloy,t=0.20mm

1.3 Shell: copper alloy,t=0.25mm

2.Specification:

2.1 Current rating:1 A Mox.

2.2 Dielectric withstondingvoltage:100V(ac)for 1 min.

2.3 Contact resistance:50 mW Max.

2.4 Insulation resistance: 100 MW Min.

2.5 Total mating force: 3.57 Kgf Max.

2.6 Total unmating force: 1.0 Kgf Min.0.81~2.05Kgf Min.

2.7 Temperature range:-30'C~80'C

Application:

The micro USB SMT type female connector finds application in a wide range of electronic devices where a compact, reliable, and versatile connection interface is needed. Some common applications include:

Smartphones and Tablets: Micro USB connectors are widely used for charging and data transfer in smartphones and tablets due to their small size and compatibility with many devices.

Portable Gaming Devices: Handheld gaming consoles often utilize micro USB connectors for charging the device and transferring data.

Digital Cameras and Camcorders: Many digital cameras and camcorders use micro USB connectors for transferring photos and videos to a computer and for charging the device.

Portable Media Players: Devices like MP3 players and portable media players use micro USB connectors for charging and transferring media files.

Bluetooth Headsets and Accessories: Micro USB connectors are commonly used in Bluetooth headsets, speakers, and other accessories for charging the internal batteries.

Wearable Devices: Smartwatches, fitness trackers, and other wearable devices often use micro USB connectors for charging and data transfer.

Embedded Systems and IoT Devices: Micro USB connectors are used in various embedded systems and Internet of Things (IoT) devices for power supply and communication with other devices.

Automotive Electronics: Micro USB connectors can be found in car audio systems, GPS devices, and other automotive electronics for charging and data connectivity.

Industrial Electronics: In industrial settings, micro USB connectors may be used in equipment for data logging, diagnostics, and firmware updates.

Consumer Electronics: Other consumer electronics such as e-readers, portable speakers, and handheld scanners may also incorporate micro USB connectors for charging and data transfer functionality.

The micro USB SMT type female connector offers several advantages, which contribute to its widespread use in electronic devices:

Compact Size: Micro USB connectors have a small form factor, making them ideal for devices where space is limited, such as smartphones, tablets, and wearable devices.

Versatility: Micro USB connectors are versatile and can be used for both data transfer and power charging, eliminating the need for multiple ports on devices.

Standardization: Micro USB connectors are standardized, meaning they are widely accepted and compatible with many devices and accessories across different manufacturers.

Durability: These connectors are designed to withstand frequent plugging and unplugging, making them durable for everyday use.

Cost-Effectiveness: Micro USB connectors are cost-effective to manufacture, contributing to their widespread adoption in consumer electronics.

Ease of Use: The design of micro USB connectors allows for easy insertion and removal of the cable, simplifying the user experience.

Support for Fast Charging: Many micro USB connectors support fast charging protocols, allowing for quicker charging times compared to standard USB connectors.

Compatibility: Micro USB connectors are backward compatible with older USB standards, ensuring compatibility with existing devices and accessories.

Surface Mount Technology (SMT): The SMT design of micro USB connectors enables them to be mounted directly onto the surface of a PCB, simplifying the manufacturing process and reducing assembly time.

Availability: Micro USB connectors are readily available from various manufacturers, ensuring easy procurement for device manufacturers.

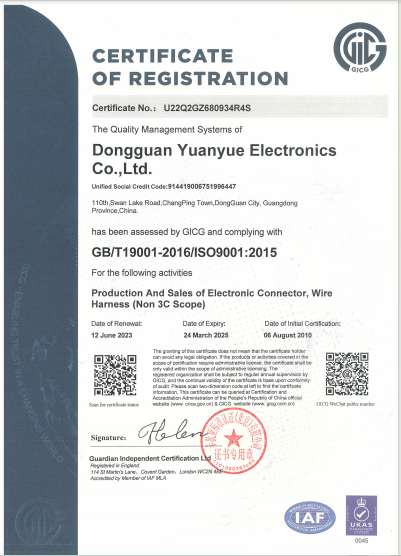

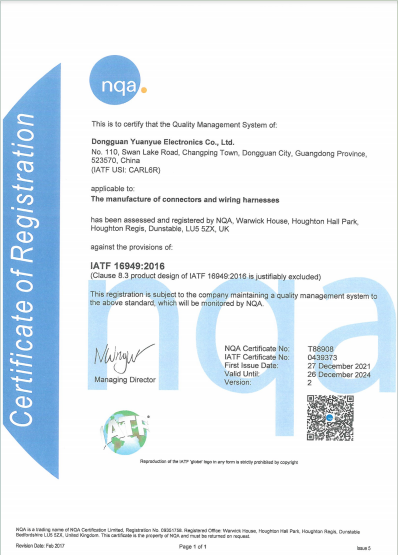

Certification：
