Product details

Product Introduction

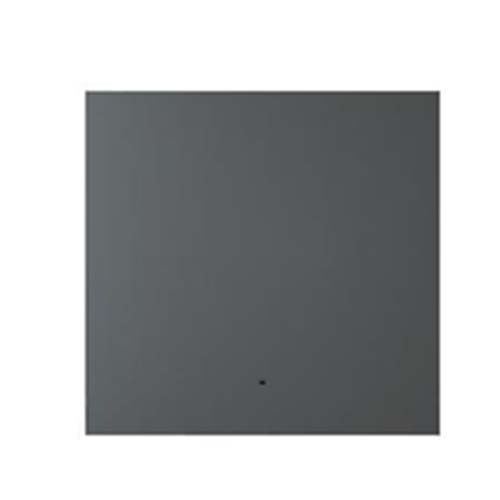

The MixSwitch super intelligent switch adopts the MixPad family's large button design, supports the original MixCtrl technology, and allows for free definition of button functions; V0 fire-resistant PC material, safe and durable.

Basic parameters

1. Product size: 86 * 86 * 39mm 2. Input voltage: AC250V, 50/60hz 3. Maximum load: 200w/circuit 4. Communication protocol: Zigbee 3.0 5. Working environment: -20 ℃ -60 ℃, humidity ≤ 80RH

Reserved plan

1. Reserve one standard concealed bottom box with a depth of ≥ 5cm, using circular screw posts or circular iron plate ear buckles; 2. A light control neutral wire must be reserved; 3. Lighting circuit ≤ 1 circuit; 4. The center distance between adjacent bottom boxes without millimeter frames is 87mm; 5. If a millimeter frame is used, the center to center distance between adjacent bottom boxes is 89.6mm; Or suggest using a millimeter frame dedicated bottom box

Wiring scheme

1. Reserve 220V power neutral wire; 2. Reserve 1 control line 3. Each bottom box needs to have an independent output line, and it is forbidden for the bottom box to cross the line.

Acceptance criteria

Pre embedded national standard 86 bottom box (depth 50mm), with reserved 220V neutral wire and 1 lighting control wire inside the bottom box
