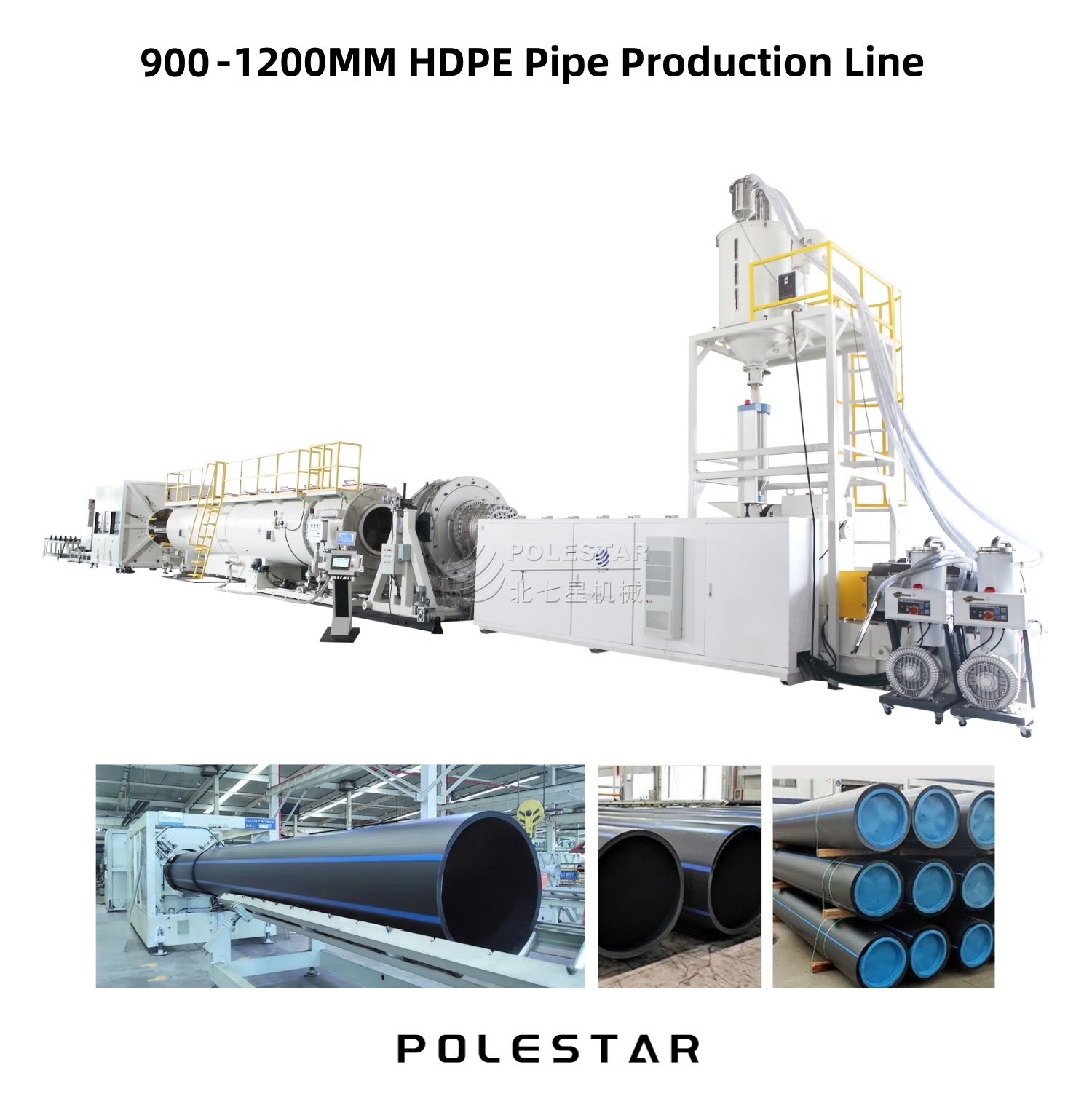

PE800 pipe extrusion production line

9 month ago
26 0
Product details



Description:

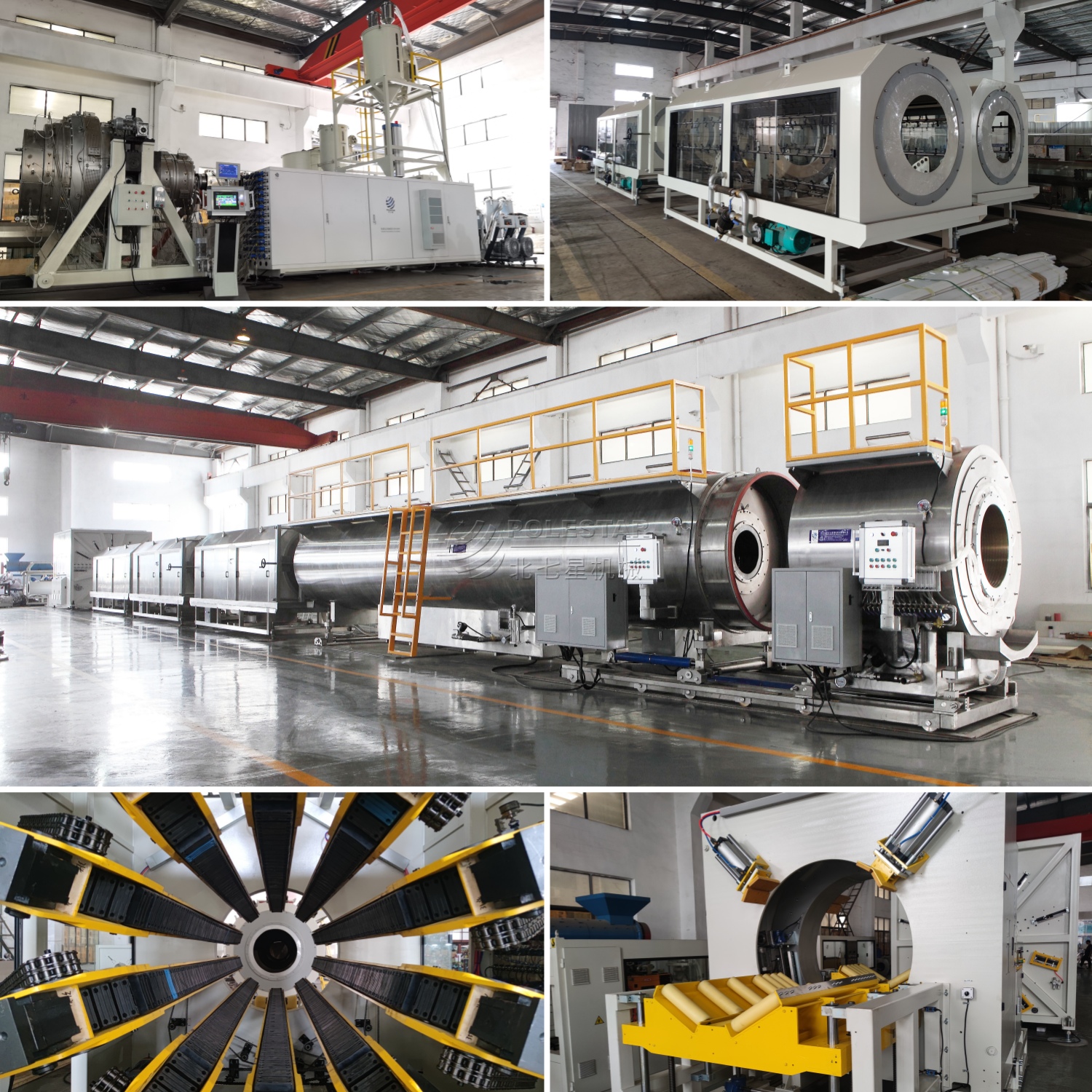

The plastic pipe production line can be widely used in the production of water supply pipe, gas pipe, electrical pipe, building drainage pipe, etc. The main parts are single screw extruder, mold, vacuum setting tank, cooling water tank, tractor, cutting device, stacker or pipe winding machine.

Application:
  1. HDPE pipes have many advantages and are widely used in water, gas and power systems. HDPE pipes are made of high-density polyethylene, a thermoplastic polymer known for its toughness, flexibility and resistance to corrosion and chemical degradation. They come in different diameters to meet a variety of water supply needs.
  2. Modified polypropylene (MPP) power cable protection pipe is a new type of plastic pipe, using modified polypropylene as the main raw material, using special formula and processing technology. It has a series of advantages such as high strength, high temperature resistance, simple construction and cost saving.

Features and Advantages:
  1. The optimum spiral feed port greatly increases the output of the extruder.
  2. Precise temperature control system ensures material melting performance.
  3. The unique screw design enables better plasticization and high quality products.
  4. The precision design of the high-torque transmission ensures stable operation.
  5. The "H" frame reduces extruder vibration.
  6. Advanced PLC operating system for synchronization and automation.
  7. Automatic water temperature and level control, vacuum and cooling tanks are equipped with special individual filters.
  8. Provides stable traction with 2-12 track traction straps.
  9. Saw blades and chip-free and planetary cutting options are available.
  10. Low energy consumption, excellent performance and easy maintenance.

Production Line Flow Chart:
Raw material+additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → extrusion mold → calibrators → vacuum calibration tank → water cooling tank → haul-off machine → cutting machine → stacker or pipe winder

Main Technical Parameter:

Model

Pipe Range(mm)

Extruder Model

Max Hauling Speed(m/min)

Main Motor Power(kw)

Max Extrusion Output(kg/hour)

BQX63

20-63

SJ65/33

12

55

150

BQX110

20-110

SJ65/33

10

75

180

BQX160

75-160

SJ75/33

8

110

350

BQX250

90-250

SJ75/33

5

110

350

BQX315

110-315

SJ90/33

3

160

450

BQX450

160-450

SJ90/33

2

160

450

BQX630

315-630

SJ120/33

1.6

280

850

BQX800

500-800

SJ120/33

0.8

280

850

BQX1000

630-1000

SJ150/33

0.8

400

1200

BQX1200

710-1200

SJ150/33

0.6

400

1200

BQX1600

1000-1600

SJ120/33 & SJ90/33

0.3

280+160

1400
