Machine overview:

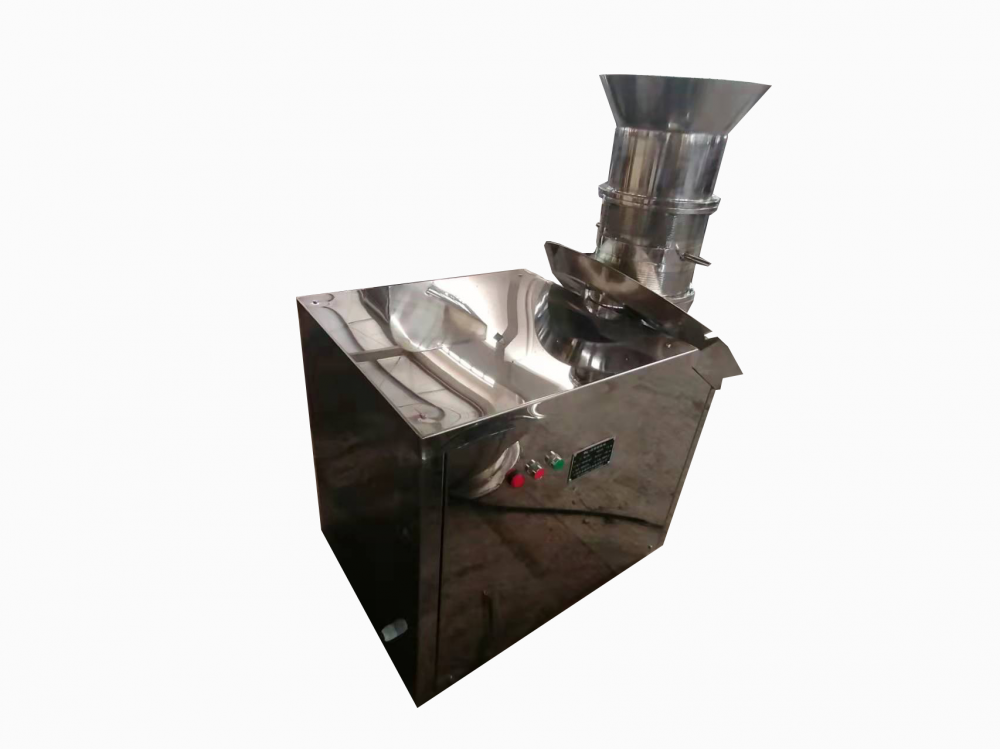

Rotary granulator is a set of relative rotary grinding knife, through the stainless steel screen, the material extruded particles equipment. It can be combined with conveyor and drying equipment to form automatic production lines, saving labor costs. This machine is suitable for pharmaceutical, food, powder, chemical, solid beverage and other industries to make the required particles from the stirred material, especially for the material with high viscosity.
Main features:
1. Rotary granulator machine made of stainless steel, easy to clean and maintain, in line with the requirements.
2. Simple structure, wide adaptability, small footprint, low noise, easy to clean.

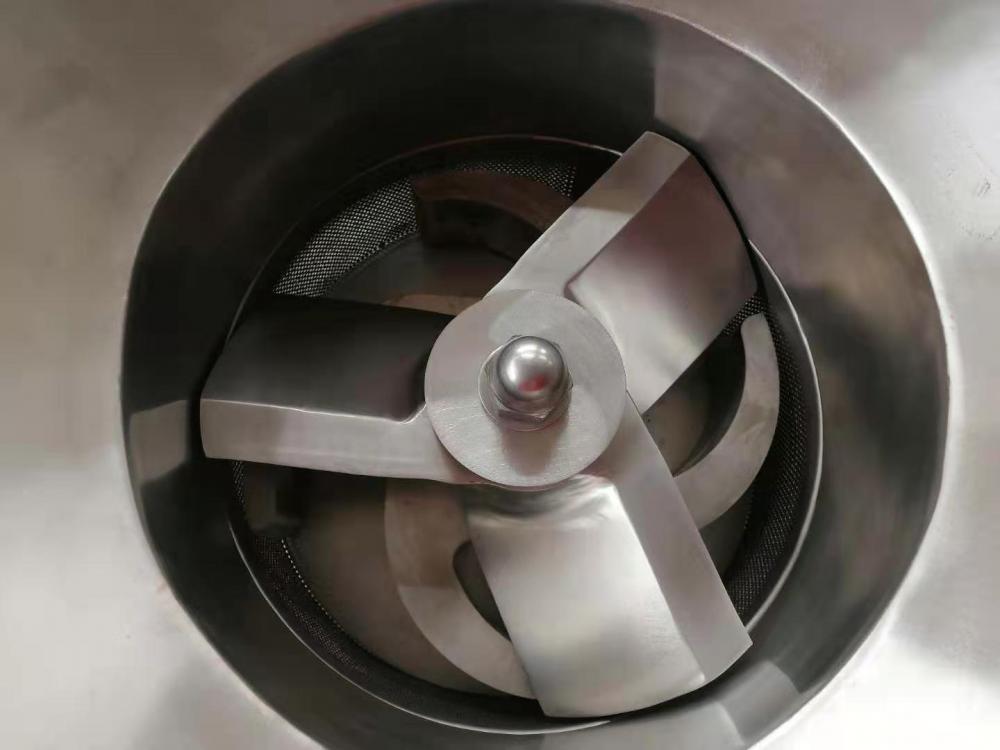

3. The granulating device is mainly composed of a mesh ring, a press blade and a large Angle grinding knife, and the material is extruded from the screen hole through the blade into pellets. This machine is easy to install and disassemble.
4. The grinding knife with special shape is used to improve the processing technology of the pelleting knife, which can reduce the heat of the material and reduce the extrusion pressure between the knife and the screen, thus extending the service life of the screen.
Main parameter:
| Model | ZL300 | ZL500 |
| Diameter of granule(mm) | 1-5 | 1-5 |
| Capacity(kg/h) | 50-400 | 300-1500 |
| Motor(kw) | 4 | 30 |
| Size（mm） | 1300x600x1300 | 1700x1600x2300 |
| Weight(kg) | 400 | 1000 |
