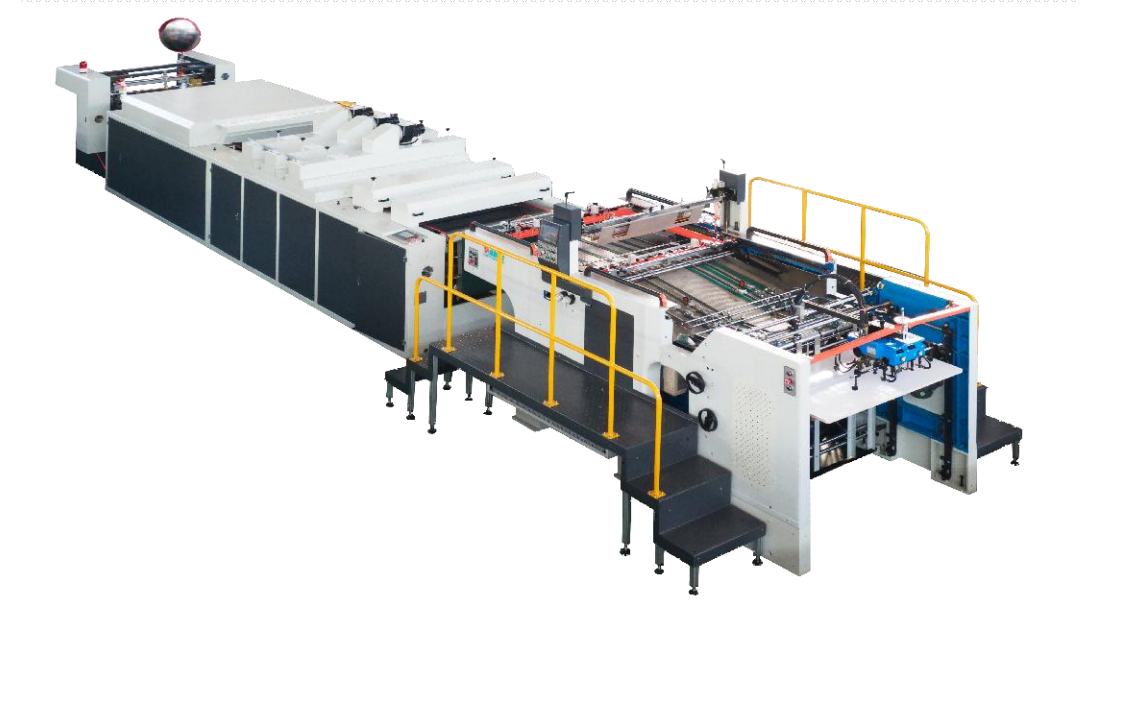

Full Automatic Spot UV varnish coating line
Full Automatic Stop Cylinder Screen Press adopts the classical stop cylinder technology with the advantages such as: paper located exactly and steadily, high precision, high speed, low noise, high degree automatization and so on, it is suitable for printing on ceramic and glass applique, electron industry (film switch, flexible circuitry, meter panel, mobile telephone), advertisement, packing and printing, brand, textile transfer, special technics etc.
Main features:
1. Driven by a special brake motor for frequency conversion, the whole machine is centrally controlled and operated by Mitsubishi PLC programmable controller, 7-inch color touch screen operation interface, displaying all functional data, printing operation is simpler and more convenient;
2. Automatic optical fiber positioning detection throughout the process, line failure, paperless, jammed scraper automatically rise and stop or not, reduce the waste of printing paper;
3. Set up a perfect alarm bell alarm system to prompt the operator to carry out targeted troubleshooting, so that maintenance is easy and fast;
4. The whole set of electrical components are imported products from Schneider and Yaskawa, which greatly improves the stability of the electrical system and reduces the frequency and difficulty of maintenance and overhaul;
5. The cast iron frame and some components precision processed by the CNC "machining center" ensure the accuracy of key parts and ensure the stable and long-term rapid operation of the machine;
6. The printing cylinder is made of stainless steel 316L material, which is precise and durable; The flexible range of the paper tooth is designed to be flexible, which is convenient to adjust at any time when printing on different thicknesses and thin papers;
7. The paper output table that can be flipped 90 degrees, double conveying adjustable speed belt, practical size paper, convenient for screen cleaning, loading and unloading; Screen plate fine-tuning device, which can be adjusted in all directions up and down, front and back, left and right;
8. Good gray cast iron (HT250), wall plate and base cast by aluminum mold, after aging treatment, and then processed by imported large-scale three-dimensional machining center, high precision level requirements, smaller processing error, the operation of the whole machine is more stable and reliable.
9. Centralized lubrication control system: automatic lubrication of main transmission components, effectively prolonging the use accuracy and machine life;
10. The appearance is made of environmentally friendly primer, which is carefully polished and painted, and finally the outer surface cover varnish;
11. All pneumatic components adopt Taiwan Airtac brand, and the air pump adopts Becker vacuum pump;
12. Printing knife and feeder platform are precisely controlled by separate brakes, and the pressure is uniform;
13. The machine automatically detects whether there is paper or not, and automatically increases and lowers the speed;
14. One-button pneumatic switching device for pulling&pushing side lay
15. Mesh frame drawer design, can be pulled out as a whole, which is convenient for cleaning and loading and unloading of screen plates, and convenient for the calibration and adjustment of screen plates and prints.
Main technical parameter
|
Model |
GST-1450 |
|
Max. paper size |
1500 X 1100mm |
|
Min. paper size |
550 X 450mm |
|
Max. Printing size |
1450 X 1050mm |
|
Paper thickness*1 |
120-420gsm |
|
Registration accuracy |
≤0.15mm |
|
Frame size |
Standard 1700 x 1530mm |
|
Margin |
≤15mm |
|
Printing speed*2 |
600-3000pcs/h |
|
Power |
3P 380V 50HZ 11.0KW |
|
Weight |
5700KGS |
|
Overall size |
4550X3850X1950mm |
