1.Production:

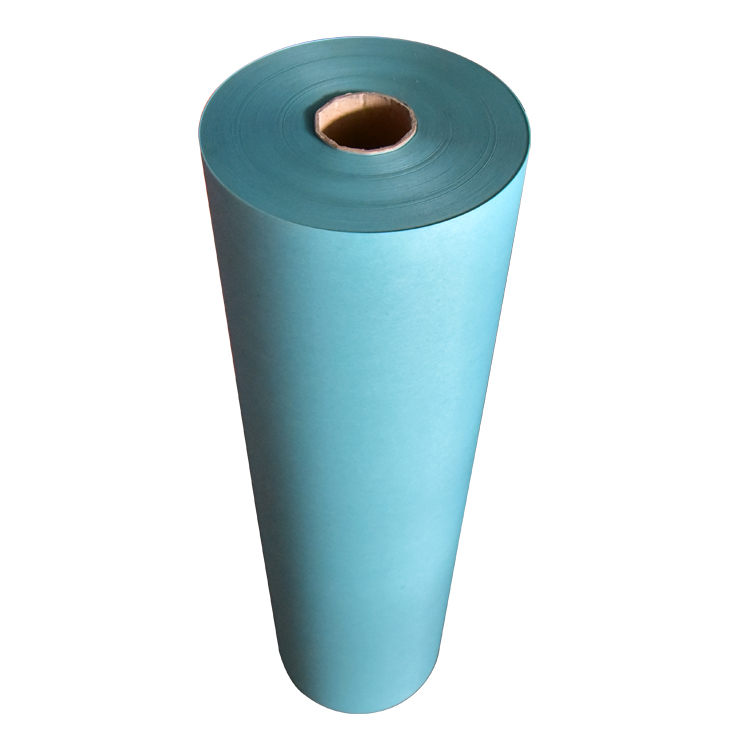

--6641 Polyester film/Polyester fiber non-woven fabric flexible Laminate is a three-layer flexible composite material.
--The thicker Polyester film you choose, the higher electrical strength is.
2.Features and Aplication:
--Insulation class: F class (155 °C)
--Polyester film/Polyester fiber non-woven fabric flexible Laminate has high dielectric properties, tear strength and tensile
strength, good impregnation performance
--As slot, interturn and liner insulation for E-grade motors, generators and electric appliances. The polyester film for
electrical industry has high dielectric properties, tear strength and tensile strength, good impregnation performance
--6641 / F grade DMD polyester film polyester fiber composite foil for motor, electrical stator winding in the slot insulation,
liner insulation and turn to turn insulation.
--F-class DMD insulation paper is also used in dry-type transformer coil insulation layer, the end of insulation, liner
insulation.
|
Colour
|
Pink,white,green,grey
|
|
Thickness
|
0.05-0.2 mm
|
|
Feature
|
Soft
|
|
Size
|
100 mm * 100 meters
|
|
Sample
|
Available
|
|
Surface finishing
|
Smooth
|
|
Usage
|
Insulation Protection
|
|
Port
|
Qingdao
|
|
Name
|
Insulation paper DMD
|
