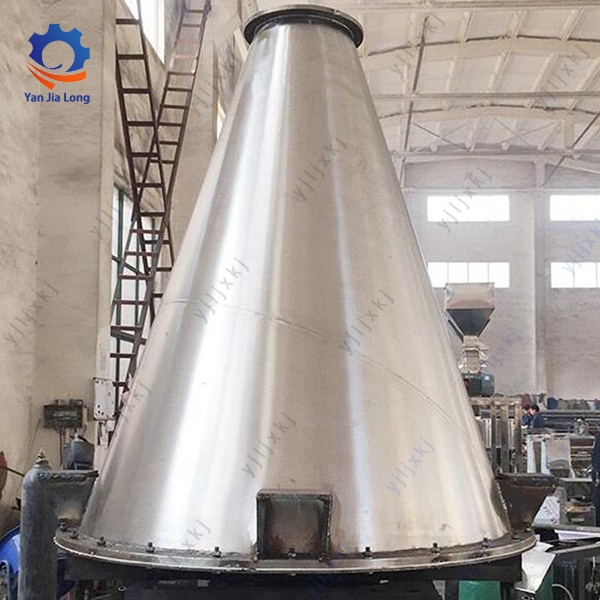

Vertical Double Screw Nauta Mixer for Powdered Ink,Double Screw Conical Mixer,Double screw cone mixer/dsh mixing machine
Please answer below questions and send answers to email, and then we will send you offer as soon as possible.
1, What materials do you mix? (Names of raw materials?)
2, What is the power fineness (or particle size)? (mesh, mm)
3, What is the bulk density (or specific gravity) of mixed materials? (kg/liter, kg/m3)
4, How many kgs or liters to be mixed per batch?
5, What is the distance from bottom discharge outlet to ground? (cm, mm, m)
6, What construction materials do you require? (Please choose below option)
A, all construction materials mild steel;
B, contact parts stainless steel, non-contact parts mild steel;
C, all construction materials stainless steel;
Application
DSH double screw mixer is suitable for powder and powder, powder and liquid as well as liquid and liquid mixing. It is widely used in chemical, fertilizer, pesticides, dyes, breeding, food, pharmaceutical, health food, bioengineering and nuclear materials industries. This twin screw mixer has a good adaptability to coarse, fine and ultrafine powder, fibers or flakes mixing.
Features
1. Twin screw blender is greatly adapted to mixed materials.
2. This machine has no over-hearting phenomenon to sensitive materials.
3. Double screw mixer will not grind particulate materials.
4. This twin screw mixer will not produce segregation phenomenon when it comes to poor proportion materials.
Technical parameter
|
Model |
DSH0.3 |
DSH0.5 |
DSH1 |
DSH2 |
DSH4 |
DSH6 |
DSH10 |
|
(m3)Total Volume |
0.3 |
0.5 |
1 |
2 |
4 |
6 |
10 |
|
loading ratio(%) |
0.4-0.6 |
||||||
|
material diameter |
40-3000 |
||||||
|
operation condtion |
Under normal temperature and normal pressure, dust seal |
||||||
|
mixing capacity every time(kg) |
160 |
300 |
600 |
1200 |
2400 |
3600 |
6000 |
|
power(kw) |
2.2 |
2.2 |
5.5 |
5.5 |
11 |
20.7 |
30.7 |
|
mixing time(min) |
4-10 (special materials by experiment) |
||||||
|
weigh(kg) |
500 |
1000 |
1200 |
1500 |
2800 |
3500 |
4500 |
