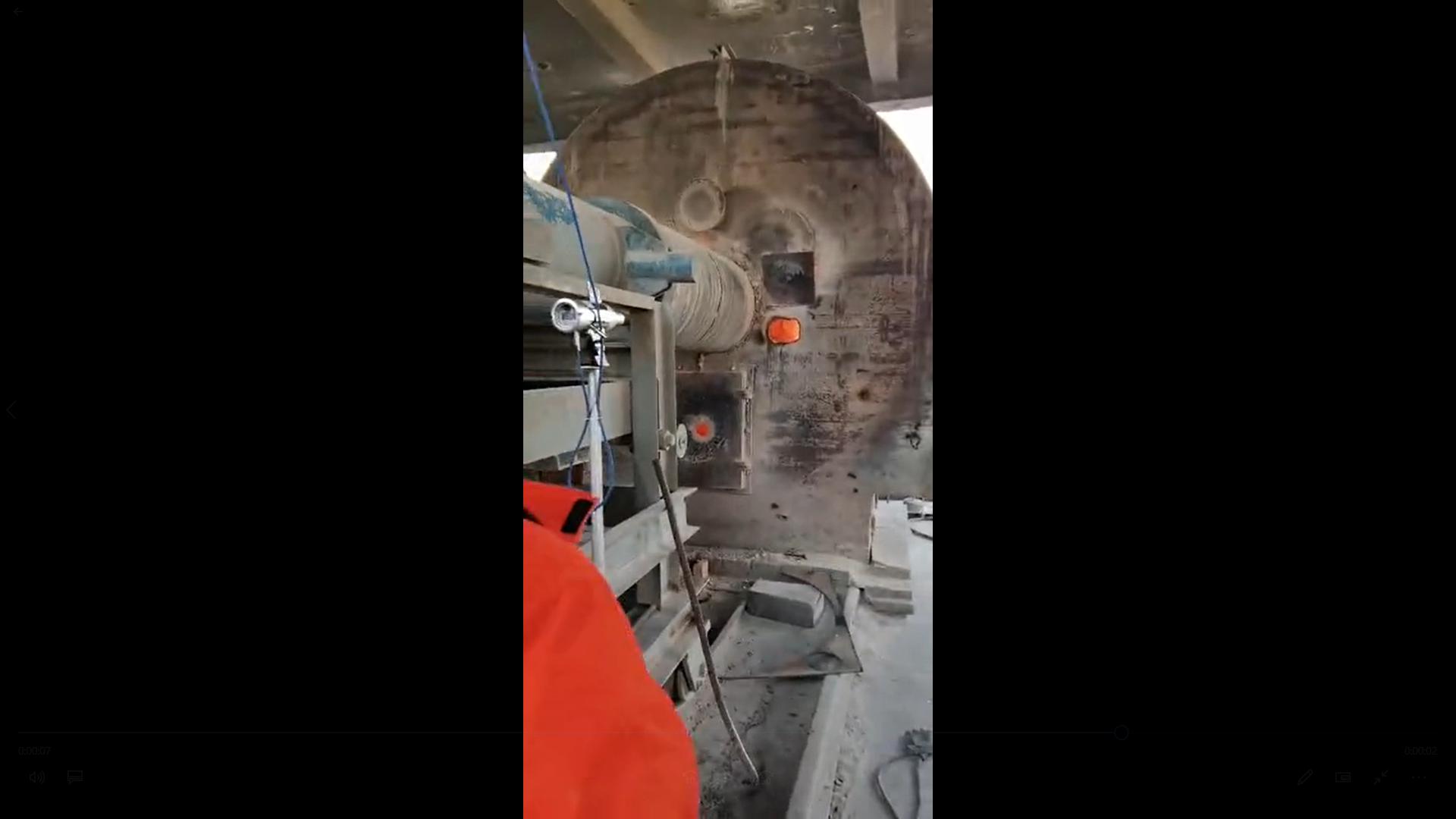

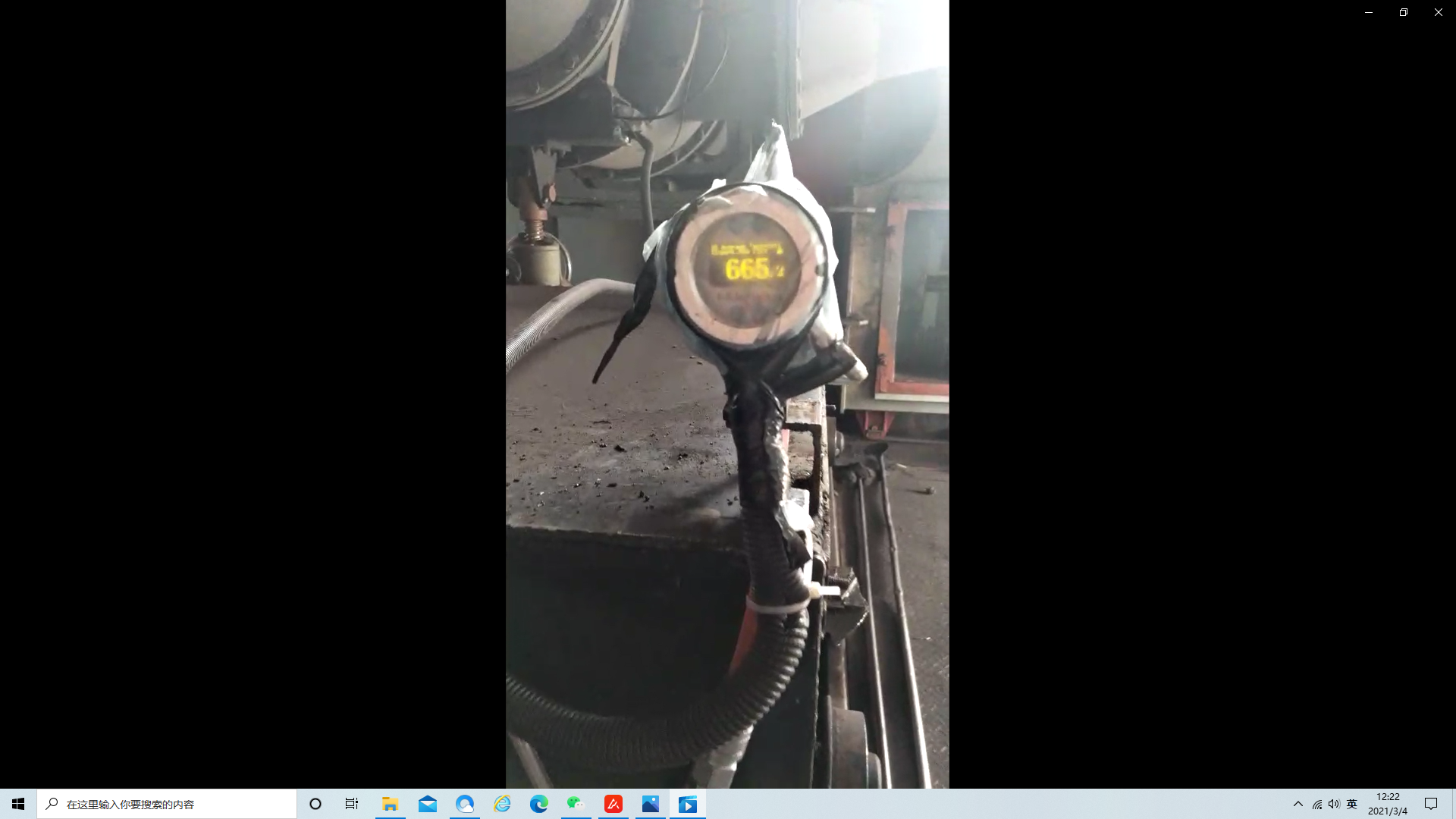

We cosider STRONG-SR-6018 two color infrared pyrometer as a rotary kiln head two color temperature measurement solution, the big advantage of 2-color infrared pyrometer will output a resonalbe result if a signal gets weaker independently of the wavelength. For example, influence of smoke, oil, dust and dirty inspection glass in the visual field of the fixed pyrometer lead to a degradation of the signal, the ratio and thus the displayed temperature will not decrease and remain constant.
In order to overcome the above shortcomings, STRONG-SR-6018 industrial infrared pyrometer solves the above problems well, which can ensure that the infrared temperature measurement system can work reliably in complex environment.
From the economic consideration, if requirement of temperature accuracy is not high, user can also consider one color pyrometer, model MARS-S-6018.
Wavelength1：（0.7～1.08）μm
Wavelength 2：1.08μm
Hot rolled steel, wire rod, metal forging, casting, induction heating, cement kiln, semiconductor, vacuum furnace etc.
Standard：0.35m adjustable to infinity, near focus distance from 0.15m to 0.5m
Model
STRONG-SR-6018
Measuring Range
600 degC～1800 degC
Detector
Si/Si
One-color mode Wavelength
1.08μm
Two-color mode Wavelength
Applications
Distance coefficients
60：1
Focal length
Accuracy
±0.5%T（T is measured temperature）
Resolution
0.1 degC
Repeat Accuracy
±2 degC
One-color mode: Calibration coefficient
0.100～1.100, Adjustable in 0.001 increments
Two-color mode: Calibration coefficient
0.850～1.150, Adjustable in 0.001 increments
Response time
Fasted: 5ms，adjustable in 5ms-99.99s
Display mode

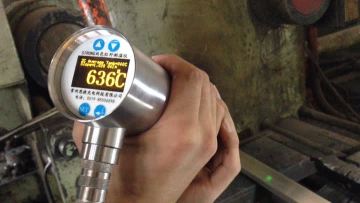

Industrial-grade self-luminous OLED display screen
Aiming method
Visual green spot (default) or eyepiece aiming, alternative
IP Rating
IP65
If you are interested in the product, contact 2bvideo.com for more information for more information
