Machine For Minor Injection
Micro Liquid Silicone Injection
Mini Silicone Molding Machine
https://www.lsrexpert-better.com/rubber-filling-machine/63462842.html

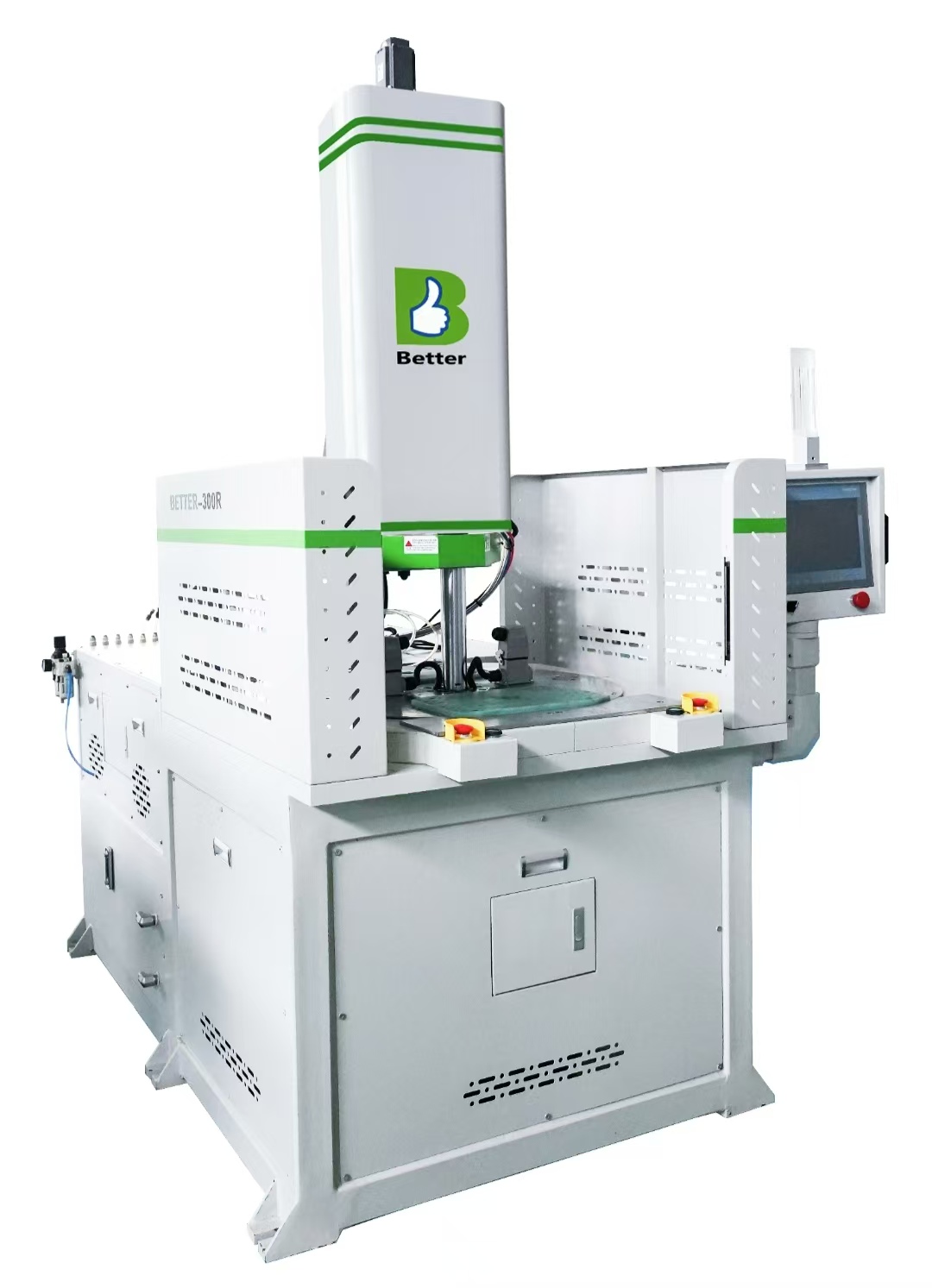

LSR VERTICAL MINOR INJECTION MACHINE
1) Vertical mold clamping with rotary plate, full computer control.
2) Rotary plates shift alternately and shape in one-mold.
3) Servo control with its locating accuracy to 0.01mm.
4) More stable and accurate than the traditional hydraulic motor.
Highlight of our injection sets
1.Mould clamping device: The designed finite element analysis casting ensures the strength of the mould clamping . Both of the movable plates and the tail plates are casted with the hinged lugs to increase its rigidity of the whole machine.
2.Injection device: High precision dosing machine are designed by ourselves which ensures the stability of the whole injection process.Precise injection operation,intelligent control and high stability .
3.Full digital CAN control mode ：Make the system pressure, flow control more accurate, easy to use, easy to maintain, accurate operation.
4.Manifold: the circuit board equipped with a YUKEN solenoid valve--reliable sealing;stable on and off; long life service.
5.The main die cylinder :the forged steel parts is quite stable to use.
6.The adjustable ejector : flexible and convenient to use according to the characteristics of different mould.
7.High-quality PLC system :distribution box.
8.The humanized computer operation display: be convenient to operate and reduce the waiting time.
Typical Features and Options
1)LSR Injection Unit (Special barrel and LSR screw with static seal)
2)losed loop liquid barrel cooling
3)Pin-type shut-off nozzle (Pneumatic or hydraulic actuation)
4)LSR nozzle tip with static seal
5)LSR tip assembly and non-return valve (Optional spring-lock positive shut-off design)
6)Carriage decompression control
7)Integral mold temperature control system
9)Insulated platens
10)LSR closed loop process software package for precise volumetric control
11)Mould vacuum system (Vacuum pump, vacuum switch, interface, control software)
12)Mould sweep software and sweep device interface
13)Mould cold deck valve gate control system
14)Air blow with pressure regulation
15)Pre-dosing assembly with two component temperature controlled static mixer and purge valve
16)LSR material delivery system
