A vacuum truck is a tank truck with a heavy duty vacuum designed to pneumatically load solids, liquids, sludge or slurry through suction lines typically 2-4" in diameter with 3" being the norm. The typical pump used in the industry is the rotary vane vacuum pump. The truck can be configured to be a direct PTO/belt or a PTO/hydraulic drive system. There are two different ways to mount the pump either directly on the truck with PTO drive or on the trailer with a pony motor. Each application has different handling characteristics.
The trucks are often used by towns and municipalities for street cleanup, sewers, individual septic systems and can also be used for cleanup of contaminated soil.The trucks are used in the cleaning of sanitary sewer lift stations and in the pump out of grease interceptors that are required at many restaurants. The trucks are mostly used in the petroleum industry, for cleaning of storage tanks and spills. They are also an important part of drilling oil and natural gas wells, as they are located at the drilling site. Vacuum trucks are used to remove drilling mud, drilling cuttings, cement, spills, and for removal of brine water from production tanks. They dispose of this in sump pits, treatment plants or if within safe levels may be spread out in a farmer's field.

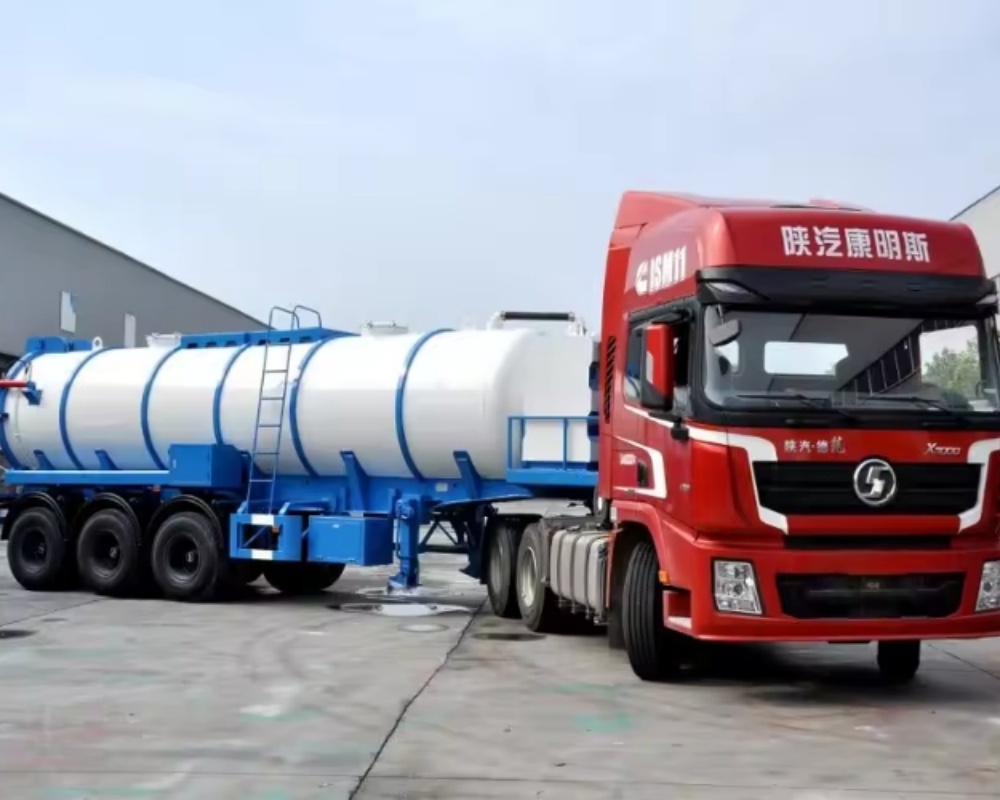

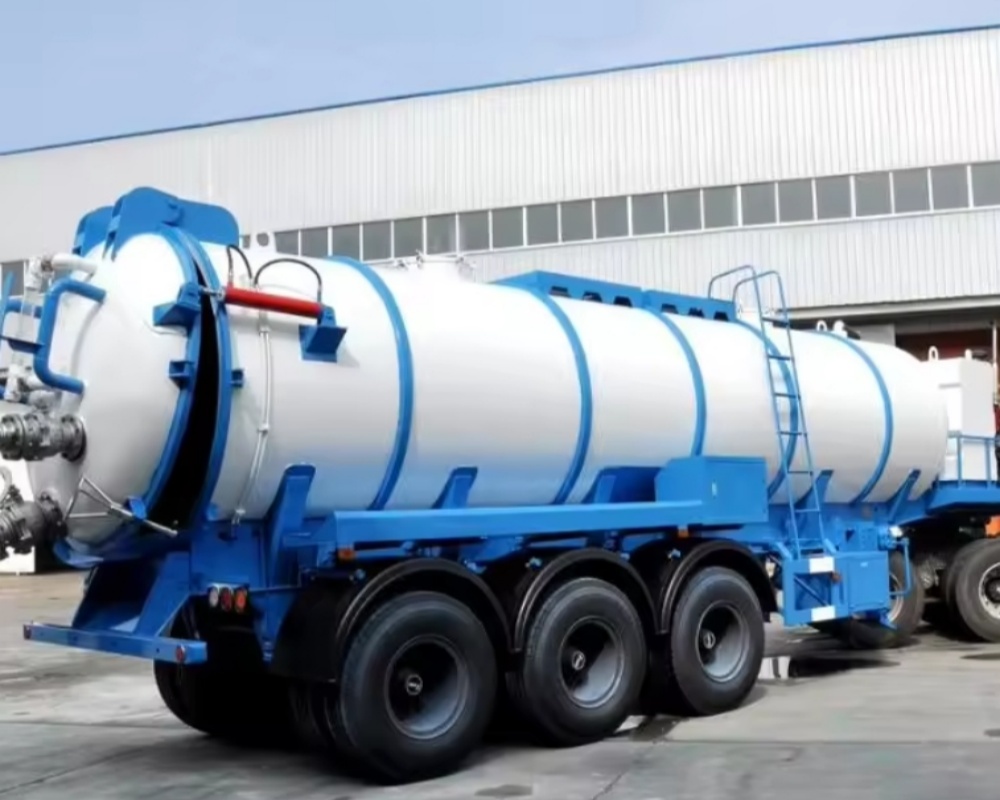

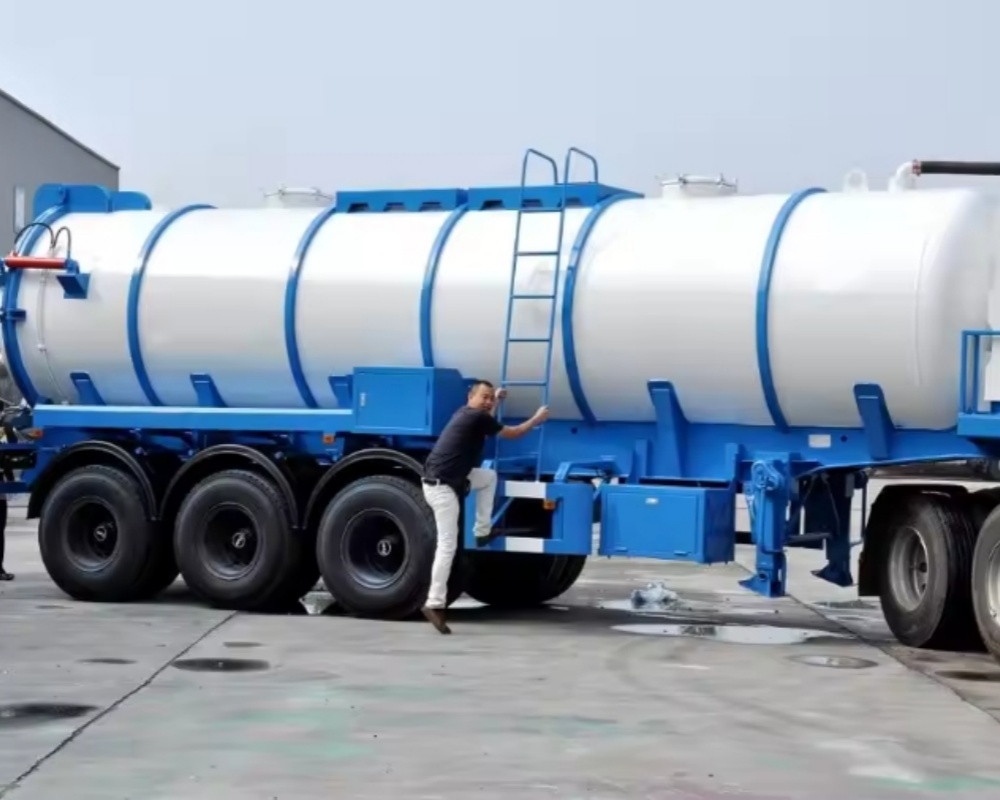

Tank Trailer Overall Size (mm) |
11840×2500×3500 |
|
Tare Weight (kg) |
11000 |
|
Payload (kg) |
40000 |
|
Tank capacity (liter) |
25000 |
|
Tank material |
Q345 |
|
Tank thickness (mm) |
8 |
|
Baffle & Ring |
3 inner baffles and outside 5 rings |
|
Water tank |
One set, capacity 1000liters |
|
Discharge valve |
One set, 4” size |
|
Sewage suction system |
Generator |
One set, Model type ZHBP1 |
Vacuum pump |
One set |
|
Axle |
3 axles 13tons, FUWA brand |
|
Tire |
11R22.5, total 13 pieces with one spare tire, triangle brand |
|
Wheel rim |
8.0R22.5, total 13 pieces with one spare tire, Sunrise brand |
|
Landing leg |
18tons, JOST brand |
|
Kingpin |
90# |
|
Suspension |
Mechanical suspension, JOST brand |
|
Brake System |
Air tank |
One set |
Brake Chamber |
6 pieces, 2 pieces T3030, 4pics T30 |
|
Air connector |
One set standard air connector |
|
Valve |
One set, WABCO brand |
|
Electrical system |
7-PIN socket |
One set |
Lamb |
One set of standard LED lights |
|
Cable |
One set |
|
Spare wheel carrier |
One set |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
If you are interested in the product, contact 2bvideo.com for more information for more information
