Product details
LYV Series V Type mixer

Product Introduction:
V type mixer is widely used in pharmaceutical, food, chemical industry, building
materials industry, coating, condiment of industries such as powder mix the raw materials.

Working Principle:
V type cylinder in the drive shaft driving to rotate around the center for the rotary motion, one of the material
also with V type two tilt cylinder for gravity diffusion movement, when V type cylinder (bottom) the joint of the
rotation is located in position, and when V type cylinder is located in the joint of the rotating position, together
in the bottom of the material be shunted to the two inclined the cylinder body, make each inclined cylinder
materials and the mouth can be connected to another inclined in the cylinder. With the constantly rotating
cylinder, the location of the changes,V type cylinder material being repeatedly dislocation, translation, and
the diffusion, so as to realize the mixture evenly.

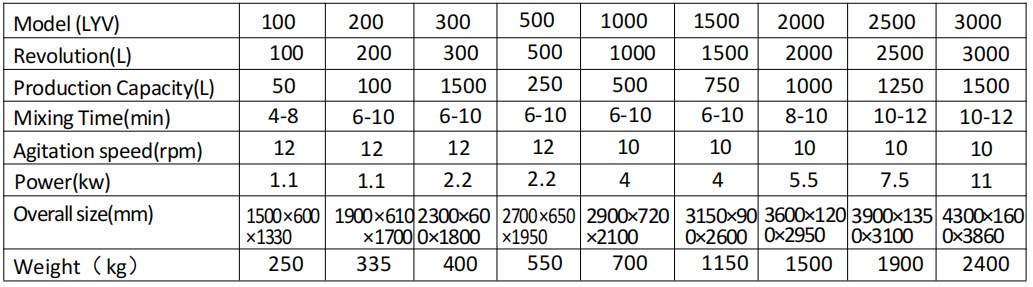

Technical Data:
v mixer zhutu (13)

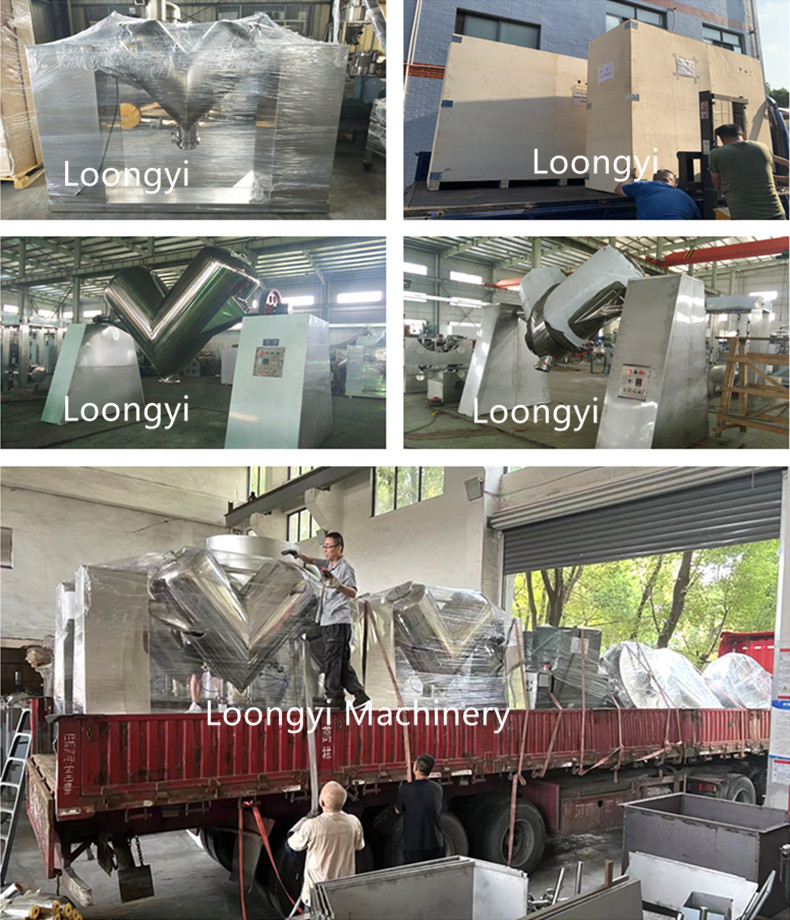

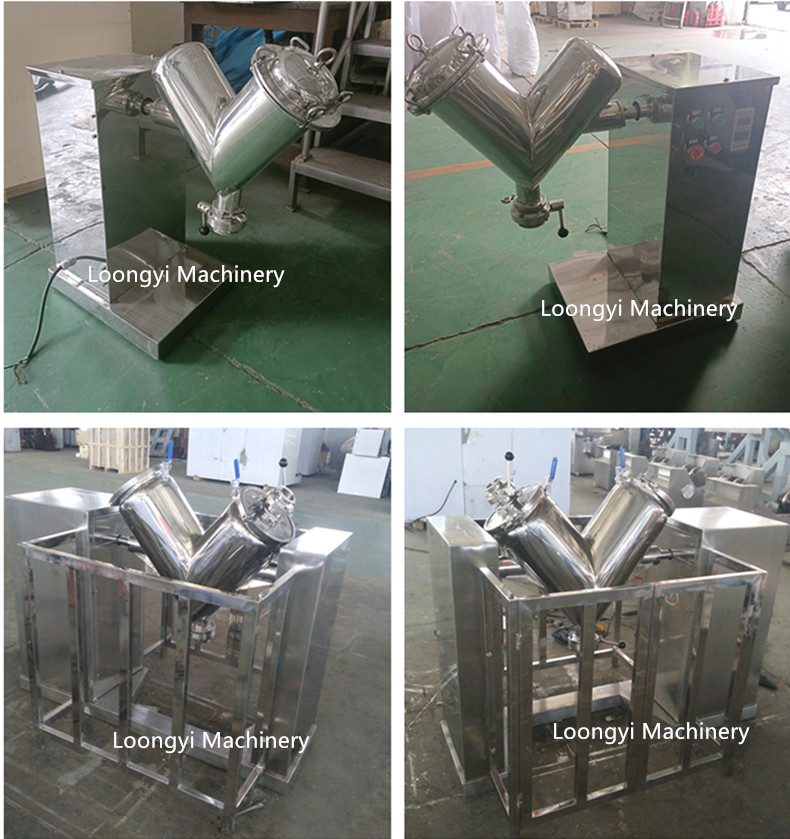

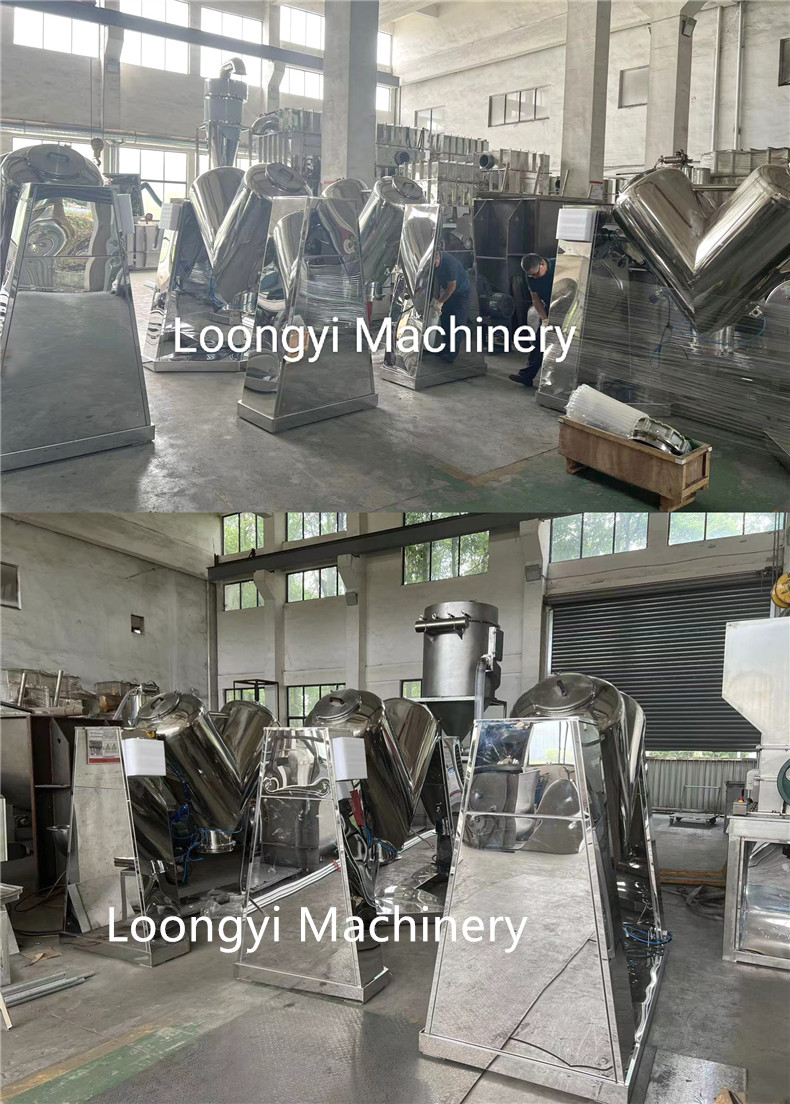

Product Pictures of V Mixer Machine:

Vmixer photobank (3)Vmixer photobank (2)Vmixer photobank (4)

Company Information:

With more than 20 years of manufacturing experience, Jiangyin Loongyi Machinery Co.,ltd specialized in manufacturing
powder grinding machine, mixing machine, sifting machine, granulator machine, packing machine, drying machine,
conveying machine, slicing machine, cleaning machine and so on, which are widely used in foodstuff, chemical and
other industries,etc.

Since its foundation, Loongyi has always adhered with the principle of quality firstly and technology is life. The company
owns more than 100 employees, about 1000m2 of office space, cover about 9000m2 of manufacturing space. With
customer concentric idea as base, it takes every detail seriously in the process of production to assure high performance
and quality of each part and equipment as well as the stable operation in more than 80 countries around the world. Our
products have been exported to such countries and regions as USA,Canada, Europe, Japan, Australia,Africa,South Asia,
middle Asia. We also welcome OEM and ODM models. Our products are approved by CE and ISO.

Loongyi Machinery locates in Wuxi city, Jiangsu Province, China. It takes 30-40 minutes from Loongyi Machinery to
Wuxi railway station or Wuxi airport. And it takes 20 minutes from Wuxi station to Shanghai railway station or Shanghai
airport by high-speed railway, so transportation is very convenient.

Over these years, our company has made elaborate design and improvement,on the basis of absorbing features and
advantages of similar products both at home and abroad.

The products have won good reputation and praises among all customers, from at home and abroad,too.

photobank (1)photobank (2)photobank (6)
