Solar On and Off Grid Inverter Fetures:
1.Main circuit adopt USA TI company DSP chip and IGBT from Mitsubishi,driving
protection is from Japan Mitsubishi chip,the part of off-grid output adopt isolation transformer,safe and reliable.
2.With SPWM pulse width modulation technology,pure sine wave output,power factor
approaches 1,low current harmonic content
3.MPPT(Maximum Power Point Tracking)Technology
4.Inverting current close-cycle control,power to control and adjustable
5.With wide input voltage range to adapt to the needs of different occasions
6.Have a full range scheme of power protection and perfect self-detection and self- protection function.When there’s something wrong with the system,it will automatically
stop working.
7.Close circuit structure, the maximum efficiency> 94%
Solar On and Off Grid Inverter

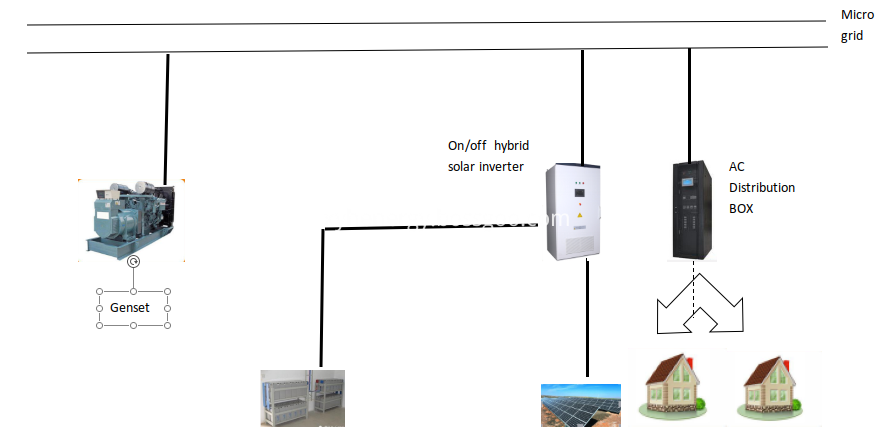

on/off hybrid Solar inverter can not only feed-in power to grid,but also store PV power to the battery, and directly power loads .Combing the funcation of the solar on-grid inverter. MPPT solar charger/controller, and battery charger to offer uniterruptible power support .Its comprehensive LCD display offers user configureable and easy accessible button operation. Such as AC/solar charging piority, battery charging current, and accecptable input voltage beased on different appications.
20~600kw solar hybrid inverter Spec.
|
Type |
XYH-20KS |
XYH-30KS |
XYH-40KS |
XYH-50KS |
XYH-100KS |
XYH-250KS |
XYH-500KS |
XYH-600KS |
||||
|
AC side parameter |
||||||||||||
|
Rated capacity |
20kw |
30kw |
40kw |
50 kw |
100 kw |
250kw |
500kw |
600kw |
||||
|
Overload |
22 kw |
33kw |
44kw |
55 kw |
110 kw |
275kw |
550kw |
660kw |
||||
|
On-grid charging mode |
||||||||||||
|
Rated grid voltage |
400 Vac |
|||||||||||
|
Grid voltage range |
310~450Vac |
|||||||||||
|
Grid frequency |
50Hz(47-51.5Hz) |
|||||||||||
|
Total harmonic distortion(THD) |
<3% |
|||||||||||
|
Power factor |
≥0.99 |
|||||||||||
|
off-grid mode |
||||||||||||
|
Rated output voltage |
400 Vac |
|||||||||||
|
Output voltage accuracy |
<3% |
|||||||||||
|
Output frequency |
50Hz |
|||||||||||
|
THDU |
<1% line load |
|||||||||||
|
Overyload ability |
110% 30minutes 120%1minute |
|||||||||||
|
DC voltage range |
||||||||||||
|
Max DC power |
22 kw |
33kw |
44kw |
55 kw |
110 kw |
275kw |
550kw |
660kw |
||||
|
Rated DC voltage |
384 Vdc |
480Vdc |
||||||||||
|
MPPT routes |
1 |
2 |
5 |
10 |
12 |
|||||||
|
Solar input DC voltage range |
450~750 Vdc |
560~850 Vdc |
||||||||||
|
Connect terminals |
Terminal connection line |
Cooper bar |
||||||||||
|
System |
||||||||||||
|
Max efficiency |
96.6% |
|||||||||||
|
Temperature |
-25~+55°C |
|||||||||||
|
Humidity |
0~95%,non condensing |
|||||||||||
|
Noise |
<65dB |
|||||||||||
|
Protection |
Polarity inverse,short circuit,island efficiency.overheat,overload.ground fault protection |
|||||||||||
|
Cooling method |
Forced cooling |
|||||||||||
|
Protect degree |
IP20 |
|||||||||||
|
Indication |
Touching screen |
|||||||||||
|
Communication |
Ethernet/RS485(MODBUS protocol) |
|||||||||||
|
W×D×H(mm) |
650*600*1560 |
1000*800*2060 |
1200*900*2060+1000*900*2060（transformer） |
|||||||||
|
Weight (kg) |
350 |
400 |
650 |
700 |
900 |
2300 |
2700 |
3000 |
||||
