Product details

Product Features

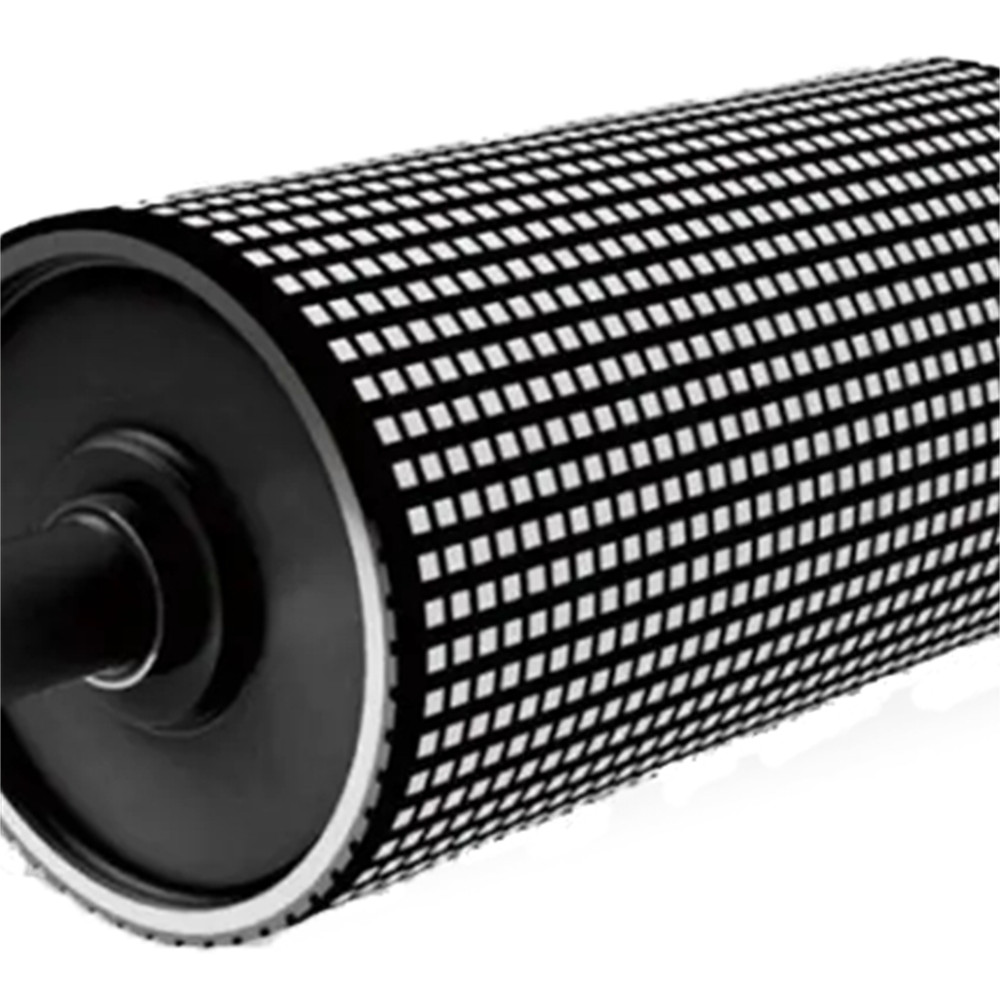

The unique groove design of the roller covered Ceramic rubber sheet gives it a self-cleaning feature that also excels in extreme environments. This design is particularly suited to the overmoulding of core components and ensures that the machine will not shut down, even under severe operating conditions.
To improve friction between the machines, the Ceramic rubber sheets are inlaid with ceramic blocks, which significantly increase the traction of the conveyor belt and ensure the stability of the conveyor system.
The high hardness and abrasion resistance of the ceramic material also increases the wear resistance of the rubber plate.
On the backside of the Ceramic rubber sheet, a semi-cured CN layer has been added to the design. When used with our cold bonding agent, the CN layer can react chemically with the cold bonding adhesive to form a strong adhesive force, ensuring that the Ceramic rubber sheet will not come off easily.

Application Scenarios

Ceramic rubber sheet with its unique structural design and excellent performance, in the industrial conveying system plays a vital role, suitable for a variety of industrial environments, is now widely used in coal, mines, grain silos, power plants, fertiliser plants, cement factories, iron and steel, ports and terminals, and other industries, not only to enhance the operational efficiency of the system, but also to extend the service life of the equipment, reducing maintenance costs.

Ceramic rubber sheet technical parameters

Rubber tensile strength ≧15MPa

Rubber elongation ≧250%

Shore hardness of rubber 60SHA-75SHA

Adhesive strength of ceramic and rubber ≧4MPa

Peeling Strength ≧8KN/m

Product Specification

Thickness of Ceramic rubber sheet:12mm,15mm,20mm,25mm.

The width of Ceramic rubber sheet is 500mm.

Length can be customised according to requirements

This product is a customised product, the price is not the final price, please contact customer service before placing an order, to communicate the specific parameters of the product and other content.

The main products we produce are:Wear-resistant Ceramics（Roller Covered Ceramic Adhesive Sheet,Roller Covered Rhombic Rubber Sheet,Three-in-one Ceramic Composite Liner）,Engineering Plastic,Adhesive.

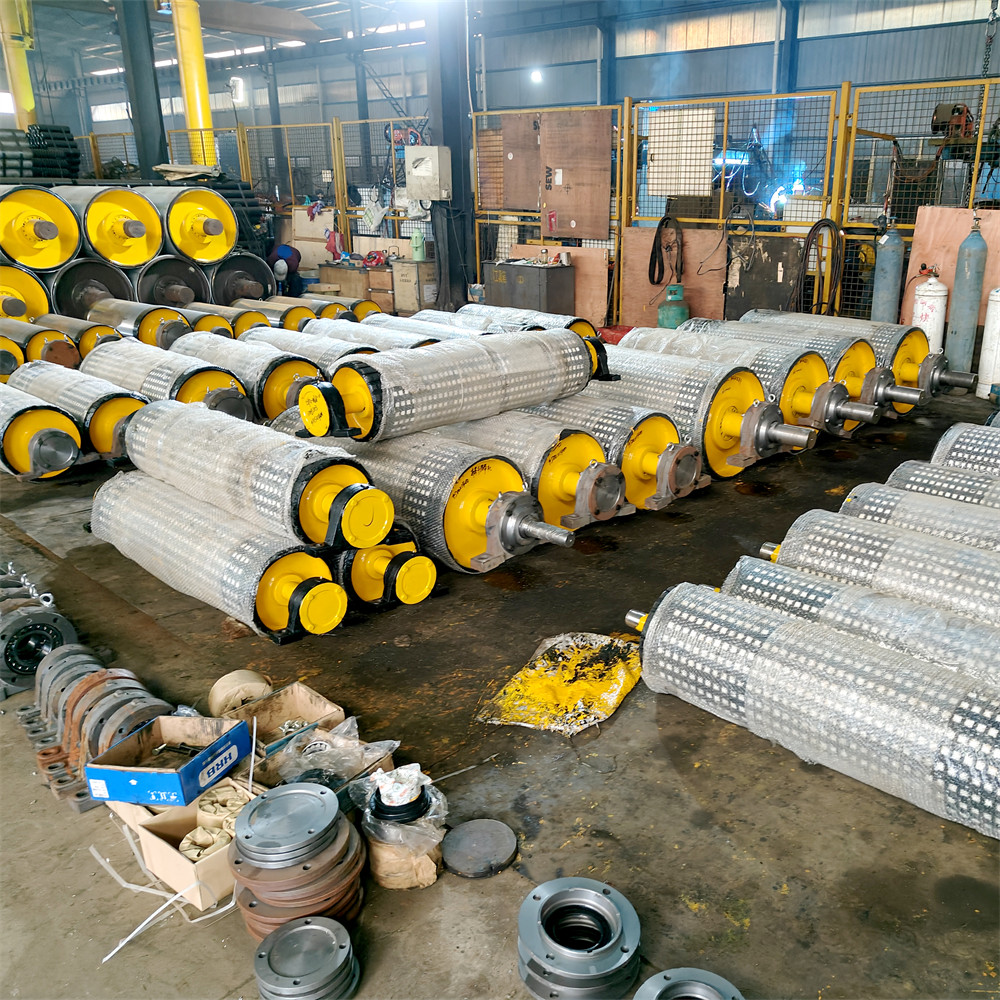

Roller Covered Ceramic Rubber Application
