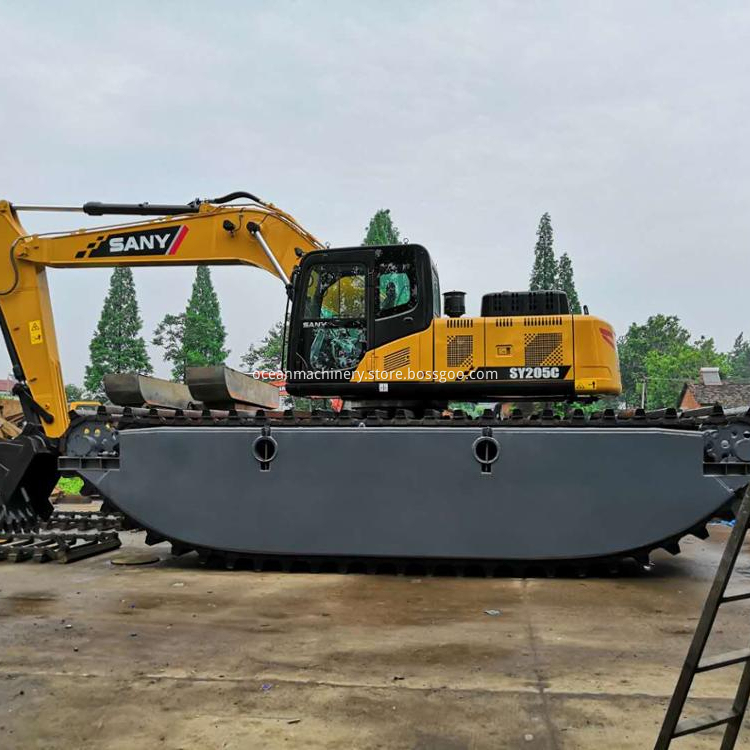

SY205C 21Ton Swamp Buggy Amphibious Dredging excavator
amphibious excavators are widely used in river dredging, watershed management, wet embankment and other work, on the river, river, lake, sea, beach resources development and environmental remediation operations are of great help. The vehicle is equipped with imported engine and hydraulic system, and the operation efficiency and reliability are higher. Walking device with sealed box, 5 times the conventional excavator grounding area can be adapted to very soft ground, wetlands, swamps. Three rows of walking chains ensure safe and reliable walking in the water.also have the Hydraulic Crawler Excavators,rock bulldozers and other road machinery .
The amphibious excavator is suitable for beach development, dam upgrading, municipal ditch silting, photovoltaic piling, swamp topography excavation and fish pond upgrading. This product is suitable for normal construction of water depth below one meter.
|

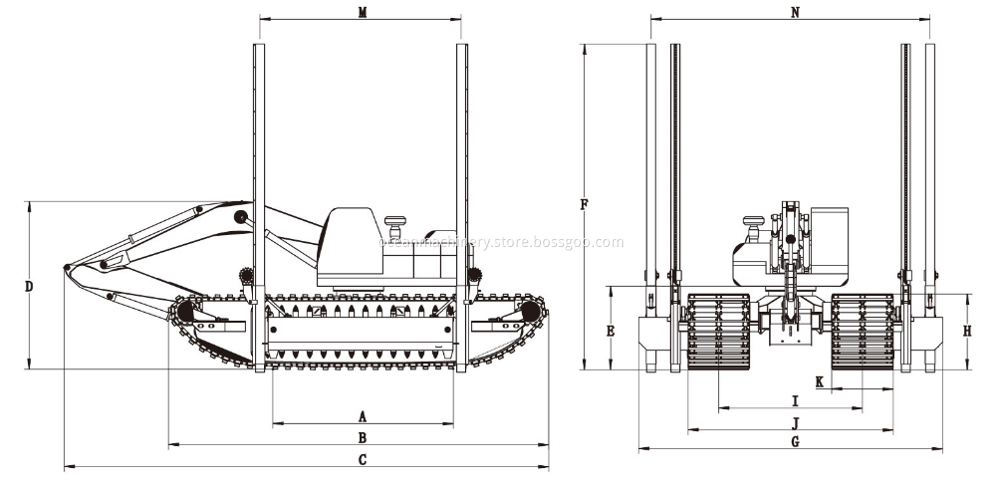

Position
|
Name
|
Parameters (standard arm)
|
|
A
|
Chassis length
|
7800mm
|
|
B
|
Distance from bottom of counterweight to ground
|
2015mm
|
|
C
|
Total height (to the top of the cab)
|
3900mm
|
|
D
|
Height of the whole machine (to the top of the arm)
|
3880mm
|
|
E
|
Overall length
|
10700mm
|
|
F
|
Rotary radius of boarding tail
|
2794mm
|
|
G
|
Gauge
|
3000mm
|
|
H
|
Overall width
|
4500mm
|
|
I
|
Width of floating tank
|
1500mm
|
|
J
|
Minimum ground clearance
|
9600mm
|
|
K
|
Floating height
|
1800mm
|
|
L
|
Vehicle width
|
2990mm
|
|
M
|
Grounding length of floating box
|
3800mm
|
It will also have the best performence toghter with the excavator spare pars ,engine spare parts ,all with high quality and reasonable price .
It will be work smoothly together with our bulldozers wheel loaders ,motor graders ,road rollers etc.
