double jackets 24 cores ADSS

double jackets 24 cores ADSS

3 month ago

13 0

Guangzhou Jiqian Fiber Optic Cable Co.,ltd

 4 month year

Product details

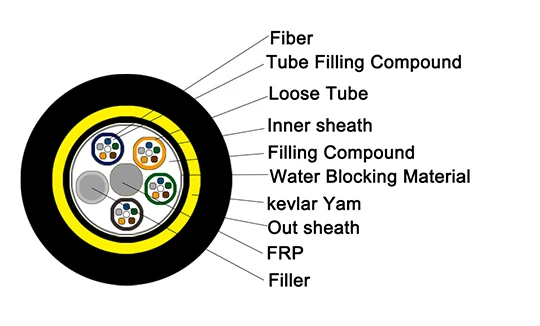

Double Jacket ADSS outdoor fiber optic cable is designed for self-supporting and duct applications for cable spans up to 1,050 feet, allowing an easy and cost-effective one-step installation using standard hardware and installation methods. Reduced weight design and smaller diameter allows the usage of smaller ducts.Loose tubes are made of PBT which provide great mechanical properties under a wide range of conditions such as crush test and impact test, and are filled with water blocking gel. PE double jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors. The SZ-stranded method for loose tubes and four ripcords ensure a quick and easy mid-span access.Dielectric central strength member requires no bonding or grounding. Aramid yarns have an excellent performance against high tension for direct-aerial installations, aerial to duct transitions and can be used for other applications that require added tensile performance such as long duct pulls. No messenger cable is required for installation, and no metallic components are used in ADSS cables.

24 cores Double Jacket ADSS Cable features

1. Cable be installed without shutting off the power;

2. Excellent AT performance.Maximum inductive at the operating point of AT sheath can reach 25KV;

3. Light weight and small diameter reducing the load caused by ice,wind,load on towers and backprops;

4. Large span lengths(Largest span is over 1000m)

5. Good performance of tensile strength and temperature;

6. Design life span is 30 years.

Double Jacket ADSS application

1.Telecommunication networks

2.CATV – Cable television

3.Fibre-To-The-Home (FTTH)

Item	24 cores span 100m double jackets ADSS fibre optic cable
Number of loose tube	4 loose tubes , each tube contains 6 fibers
span length	100m
Central strength member	FRP (fiber reinforce plastic)
jackets	inner jackets + outer jackets
Attenuation Coefficient 1310nm dB/km	≤0.35
Attenuation Coefficient 1550nm dB/km	≤0.22
cable diameter	12.0mm
RTS ( Rated Tensile Strength)	12 KN
cable span life	≥25 years

More details about the 24 cores double jackets ADSS fiber optical cable

Package and delivery
