Bushing Products features
Mechanical properties (variable stress and excellent fatigue resistance)

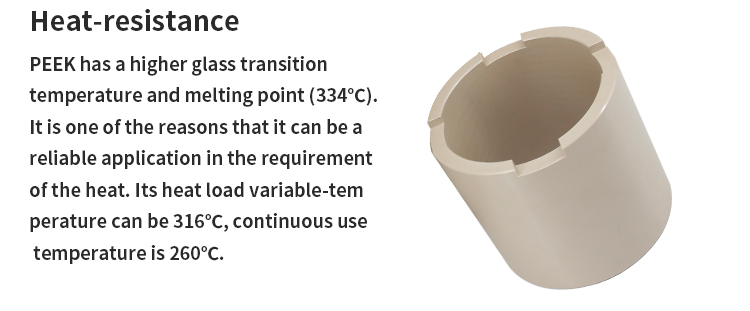

High temperature resistance (long-term use at 2600C)
Self-lubricity (low coefficient of friction and wear resistance)
Chemical resistance (corrosion resistance)
Flame retardant (can reach the highest flame retardant standard)
Peeling resistance (can be made into thin coated or electromagnetic wire)
Fatigue resistance (resin material has the best fatigue resistance)
Hydrolysis resistance (excellent in high temperature and high pressure water)
Radiation resistance (up to 1100Mr AD)
|
Property |
Item No. |
Unit |
PEEK-1000 |
PEEK-CA30 |
PEEK-CA30 |
| 1 |
Density |
g/cm3 |
1.31 |
1.41 |
1.51 |
| 2 |
Water absorption(23℃ in air) |
％ |
0.20 | 0.14 | 0.14 |
| 3 |
Tensile strength |
MPa |
110 | 130 | 90 |
| 4 |
Tensile strain at break |
％ |
20 | 5 | 5 |
| 5 |
Compressive stress(at 2%nominal strain) |
MPa |
57 | 97 | 81 |
| 6 |
Charpy impact strength (unnotched) |
KJ/m2 |
No break |
35 | 35 |
| 7 |
Charpy impact strength (notched) |
KJ/m2 |
3.5 | 4 | 4 |
| 8 |
Tensile modulus of elasticity |
MPa |
4400 | 7700 | 6300 |
| 9 |
Ball indentation hardness |
N2 |
230 | 325 | 270 |

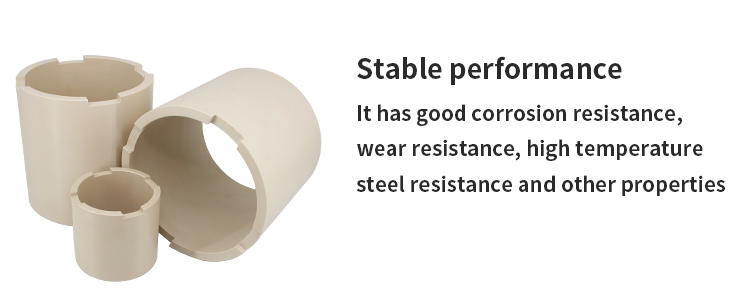

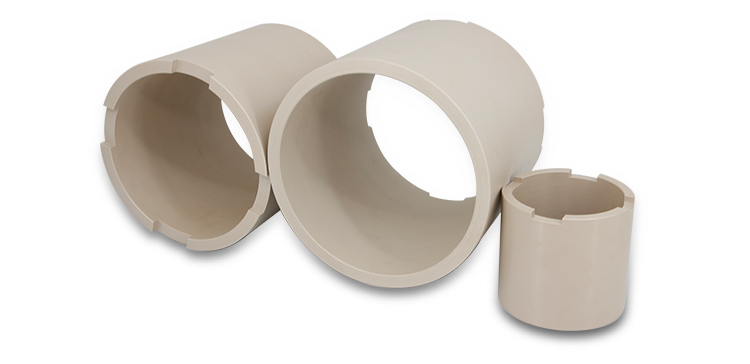

Plastic Bushing Sleeve - Model number
Peek-1000 (natural color):PEEK-1000 is made of pure polyetherketone resin
Toughness and impact resistance in all PEEK grades.
Peek-1000 can be sterilized with convenient disinfection methods (steam, dry heat, ethanol, and Y radiation),and the raw materials used to manufacture peEK-1000 comply with eu and US FDA regulations on food compliance. These characteristics make it very popular in the medical, pharmaceutical, and food processing industries.
Peek-hpv (Black): The result of the addition of PTFE, graphite and carbon fiber makes peEK-HPV a bearing grade plastic whose superior friction properties (low coefficient of friction, wear resistance, high peak pressure limit) make this grade an ideal material for friction applications.
Peek-gf30: This material is filled with 30% glass fiber reinforced grade stage material, more than peEK-1000.
It has better rigidity and creep resistance and better dimensional stability.
It is ideal for manufacturing structural parts that can withstand fixed loads for long periods of time at temperature.
If peEK-GF30 is used as a sliding piece, its suitability should be carefully checked as the glass fiber scratches
the mating surface
Peek-ca30: This material is filled with 30% carbon fiber reinforced and has an advantage over peEK-GF30
Mechanical properties (higher elastic modulus, mechanical strength, and creep) and wear resistance, and the plastic reinforced with carbon fiber is 3.5 times more thermally conductive than the unreinforced PEEK material -- it dissipates from the bearing surface faster.
Many years of industry experience weare trustworthy
For CNC machining, the products will be sent for 3 days. And we support OEM and ODM.
