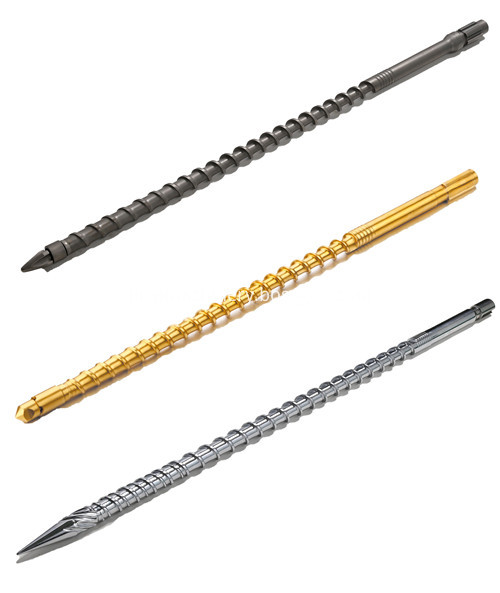

Chrome Plated Screw
Chrome plating (less commonly chromium plating) is a technique of electroplating a thin layer of chromium onto a metal object. The product of chrome plating is called chrome.
The chromed layer can be decorative, provide corrosion resistance, ease cleaning procedures, or increase surface hardness. Sometimes, a less expensive imitator of chrome may be used for aesthetic purposes.

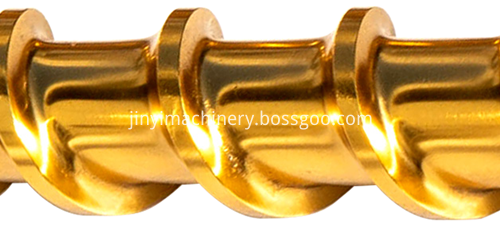

PVD (Physical vapor deposition) is characterized by a process in which the material goes from a condensed phase to a vapor phase and then back to a thin film condensed phase. We are using this technology on our Titanium nitride coated screws.
HVOF (High Velocity Oxygen Fuel) coating process is a kind of thermal spraying technique that melted (or heated) materials are sprayed into the surface.
Technical Parameters
Product Name: TiN-Coating Screw
Material: JYG3 + TiN
Suitable Machine: Injection / Extrusion / Blowing ...
Available Size: Φ14-80mm, L < 1,800mm
Process Method: PVD Coating
Surface Hardness: 2200-2500HV
Advantages
Physical vapour deposition coating is of high hardness and performance, which provide additional protection against abrasion & corrosion.
Application
Suitable for optical products & abrasive plastics processing.
Parameters of screw coatings
|
COATING TYPE |
COATING METHOD |
COATING THICKNESS |
HARDNESS |
MAX. LENGTH |
APPLICATIONS |
|
TiN |
PVD |
0.002 – 0.003mm |
2000 – 2200 HV |
1900mm |
Optical products & abrasive plastics processing. |
|
Chrome Plate |
Electroplating |
0.02 – 0.08mm |
650 – 720 HV |
6000mm |
Transparent products & corrosive plastics processing. |
|

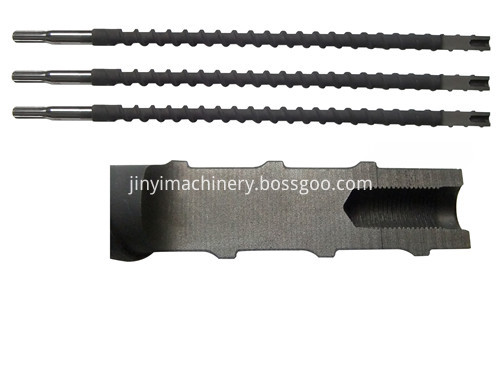

Tungsten Coating |
HVOF |
1.0 - 1.5mm |
1100 – 1400 HV |
2300mm |
High abrasive plastics processing. |
