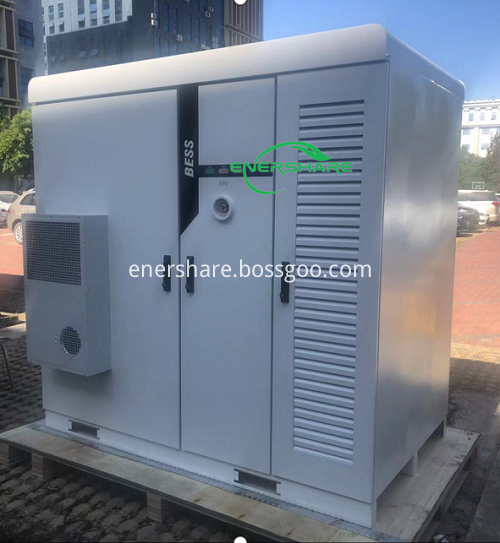

Enershare's high voltage battery cabinet served as a medium-sized Lithium battery storage power station, can apply to village, factory, data center, government,etc. We provide state-of-the-art technological and engineering knowledge to give our customer the best user experience as possible. Well, you may would like to know what a high voltage battery system is. For lithium battery cells, voltage of each battery cell is always 3.2V. High voltage lithium battery system usually refer to the battery system voltage greater than or equal to 96V, eg:672V 220Ah battery system is 1P210S (210 cells series connected) cell connection based on 220Ah single cell.
High voltage battery enegy storage system Product features:
1.Four layers of protection design, safe and reliable.
2.Intelligent temperature control to ensure optimal working temperature.
3.Smart fire fighting system, IP55 protection for outdoor use.
4.This high voltage energy storage system supports on grid/micro grid mode, and MPPT charging function.
5.Remote monitoring, start/stop button, smart operation, support multiple parallel connection.
Battery parameters:
Cell type | LFP-200Ah |
Module Model | 1P10S |
Battery Cluster Configuration | 1P210S |
System Configuration | 1*1P210S |
Battery Capacity(BOL) | 150 KWh |
Battery Voltage Range | 500V-800V |
System efficiency
≥88%
IP protection rating
IP55
Seismic intensity rating
8 (IEC60980)
Anti-corrosion grade
C4 (optional C5)
operating temperature
-20℃~50℃
relative humidity
0-95% (non-condensing)
working altitude
<2000m
cooling method
battery section:air conditioning / power section:forced air cooling
system efficiency
>88%
cycle life
5 years, more than 2000 times
fire extinguishing media
aerosol (optional tube gas fire FM200/N1230)
fire fighting system
automatic fire extinguishing
communication interface
Ethernet
communication protocols
Modbus TCP/IP
If you are interested in the product, contact 2bvideo.com for more information for more information
