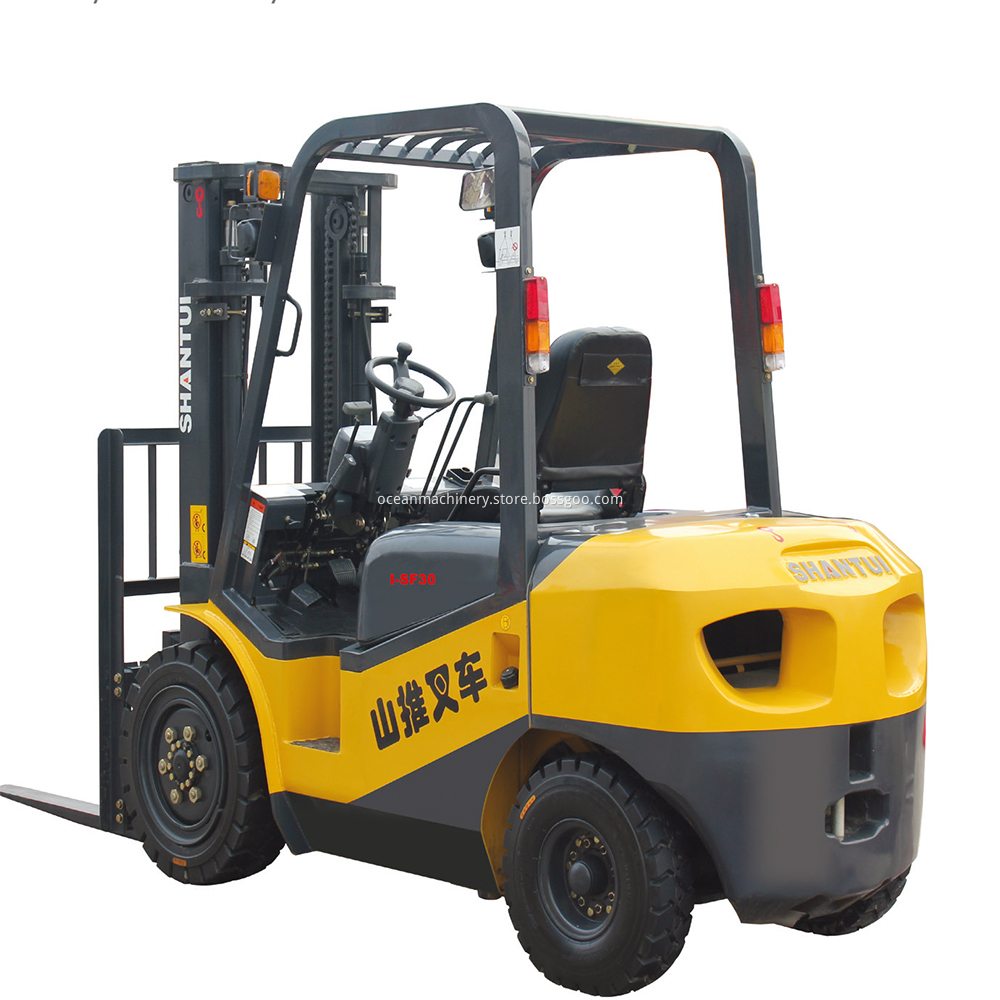

3Ton Brand New SHANTUI SF30 Forklift
Product Description
Powerful engine and transmission system
Power and transmission system is composed of excellent components by using advanced manufacturing technology and machine and high quality engine.
This combination made the truck powerful reliable.
also have other road machinery ,crawler excavators ,coal bulldozer etc
Reliable special designed instrument
Solid State Digital instrument with built-in intellectual chip, what makes it sensitively, accurately, reliably, low power consumption and long-life. It also works in wide temperature range(-40℃~+80℃) and with high interference resistant capability.
Scientific ergonomic application
We use scientific ergonomic method to design H2000 Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends.
Strict environment protection design
All the safety concerned key components, such as steering axle with rubber, front axle and mast etc, should pass severed reliability tests. Thicken insulator on the inner surface and the rubber edging can absorb vibration and reduce noise.
we can make sure all the products with excellent quality ,including excavator spare parts ,loader spare parts ,forklift spare parts .
| ITEM | Unit | SF30 | |||
| General | Load capacity | kg | 3000 | ||
| Load center | mm | 500 | |||
| Power type | Diesel | ||||
| Dimensions | Lift size | mm | 3000 | ||
| Free lift height | mm | 160 | |||
| Fork size | mm | 1070×122×45 | |||
| Mast tilt angle | deg | 6/12 | |||
| Fork overhang | mm | 495 | |||
| Overall dimensions | Full length | mm | 2704 | ||
| Full width | mm | 1226 | |||
| Height with mast not lifted | mm | 2140 | |||
| Height with mast lifted | mm | 4272 | |||
| Overhead guard height | mm | 2140 | |||
| Minimum turning radius | mm | 2400 | |||
| Minimum right angle passage width | mm | 2100 | |||
| Performance | Drive speed (full load/no load) | Hydraulic forklift truck | km/h | 19/20 | |
| Mechanical forklift | Gear I | 8.8/8.8 | |||
| Gear II | 20/20 | ||||
| Full-load lifting speed | mm/sec | 450 | |||
| Maximum gradeability | % | 20 | |||
| Curb weight | kg | 4500/4474 | |||
| Tires | Front wheel | 28*9-15-14PR | |||
| Rear wheel | 6.50-10-10PR | ||||
| Wheel & tires | Tread | Front wheel | mm | 1000 | |
| Rear wheel | mm | 980 | |||
| Wheelbase | mm | 1700 | |||
| Ground clearance (full load/no load) | Mast | mm | 110/135 | ||
| Frame | mm | 130/135 | |||
| Drive units & control | Engine | Applicable vehicle type | SF30AT | ||
| Model | 490BPG | CA498 | |||
| Rated power | kW/rpm | 8/573 | 3/175 | ||
| Rated torque | N.m/rpm | 37/475 | 19/180 | ||
| Number of cylinders | 4 | 4 | |||
| Cylinder bore/stroke | mm | 90/100 | 98/105 | ||
| Displacement | L | 2.54 | 2.98 | ||
| Transmissions | Type | Hydraulic or mechanical | |||
| Gear position front/rear | - | ||||
| Operating pressure | Mpa | 17.5 | |||
