How to Choose LED Power Supply and Pixels Controller?
First, Calculated The Whole Led Strip Lights Watts.
Parameter Details
Details
60LED/M, 60IC/m
5m/roll, antistatic bag packing
Adhesive Tape on the back
-20~60℃
Features
Lighting Mode

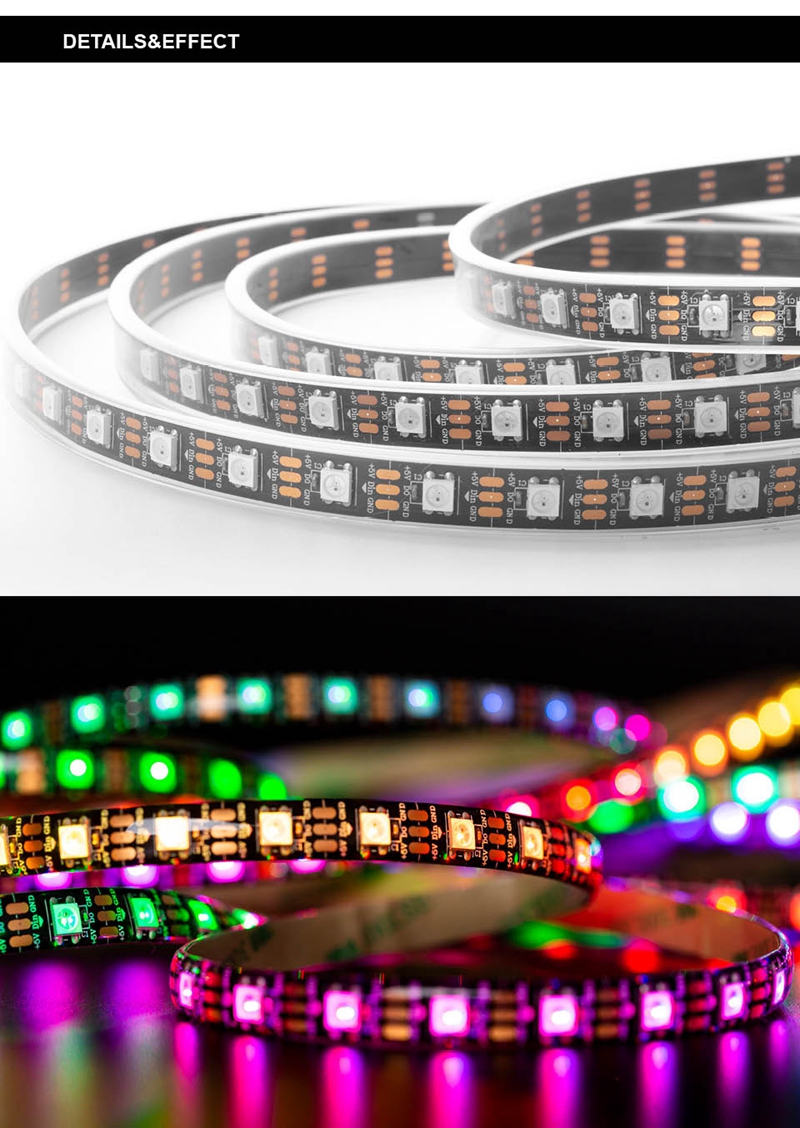

5V DC SMD5050 60LED/m WS2812 pixel LED Flexible Strip Lights
LED Chip Method
SMD5050
LED Quantity
Packing
Waterproof Rate
IP20/65/67 available
PCB Color
White or black PCB and 10mm PCB width
LED Color/CRI
WS2812 digital color, CRI>80
Power
14W/m
Lumens
35lm/led
Lighting Time
>50000 HOURS
Type of Tapg on the back
Operating Temperature
Dimesion
500MM*10MM*2.5MM
Net Weight
100/250G/roll
Features:
Input Voltage:DC 5V
Power:
30leds/m----9watt/meter.
60leds/m----18watt/meter.
74leds/m----22watt/meter.
96leds/m----28.8watt/meter.
100leds/m----30watt/meter.
144leds/m----43.2watt/meter.

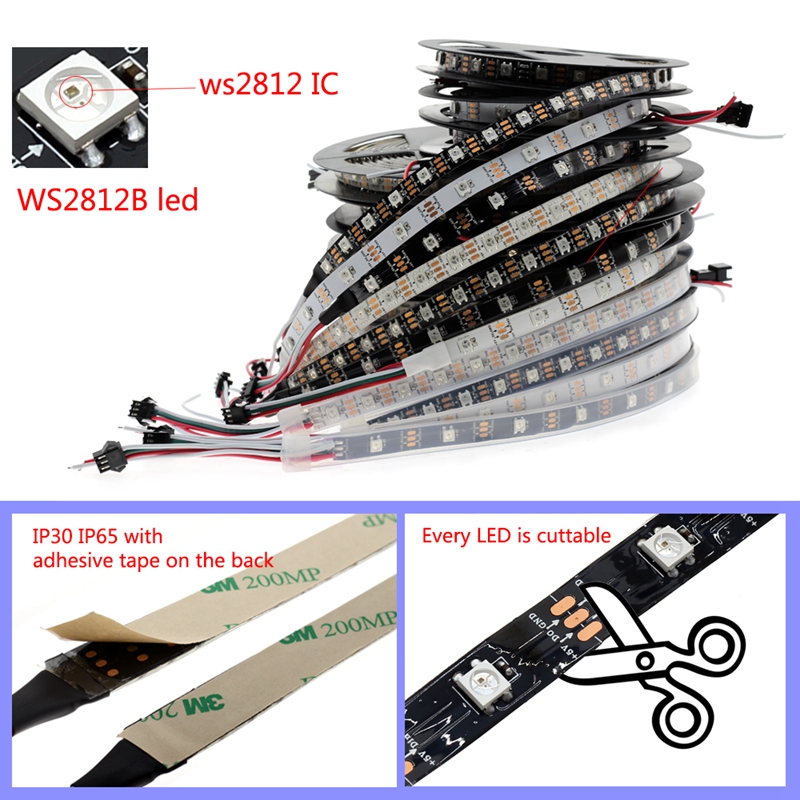

LED Resource: WS2812B led (5050 SMD RGB LED with built-in improved version of ws2811 ic).
LED: Each LED is separately controlled.
IC Type: Improved version ws2812 IC(built inside the 5050 smd rgb led).
Of IC: (1 IC drives 1 led chip).
Pixels: 30/60/74/96/100/144/meter.
Grey Scale: 256.
Bits/color: 8-bits/color.

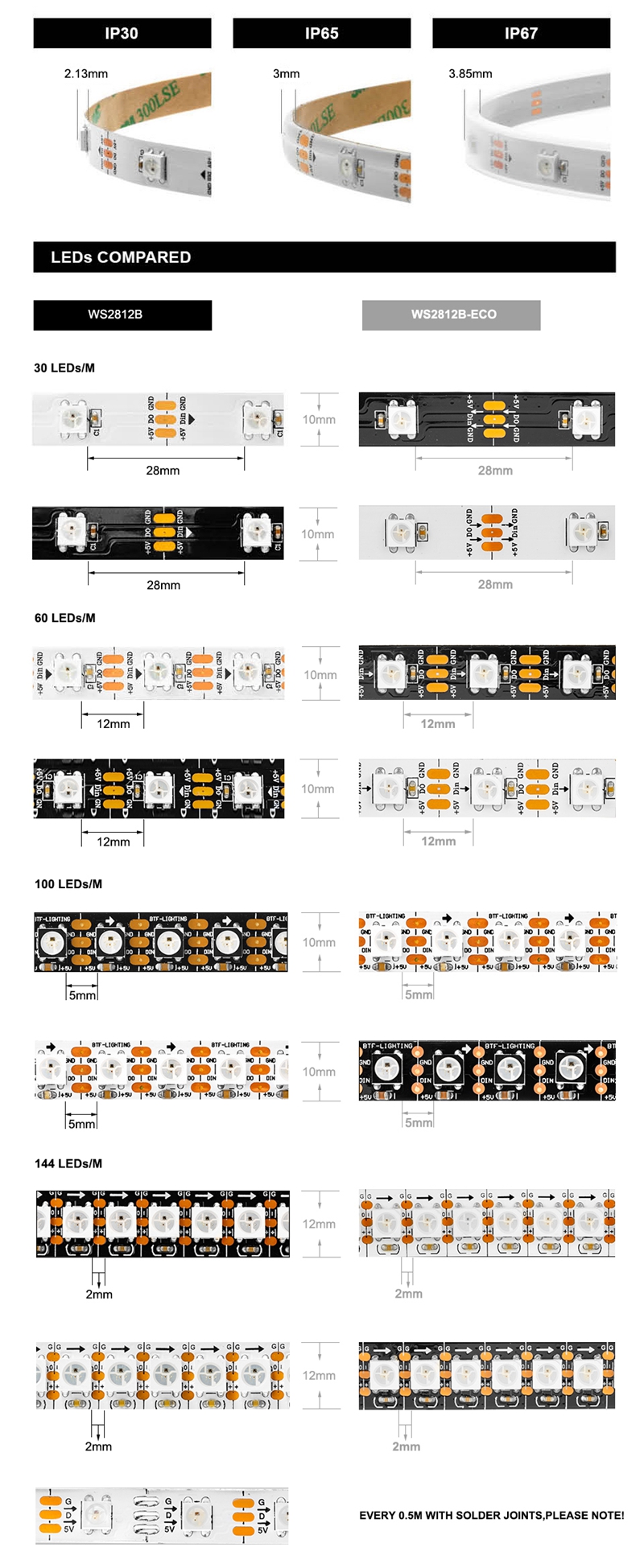

FPCB Width:
30leds/m----10mm.
60leds/m----10mm.
74leds/m----12mm.
96leds/m----12mm.
100leds/m----10mm.
144leds/m----12mm.
FPC Color: Black/White.
Protection rate:

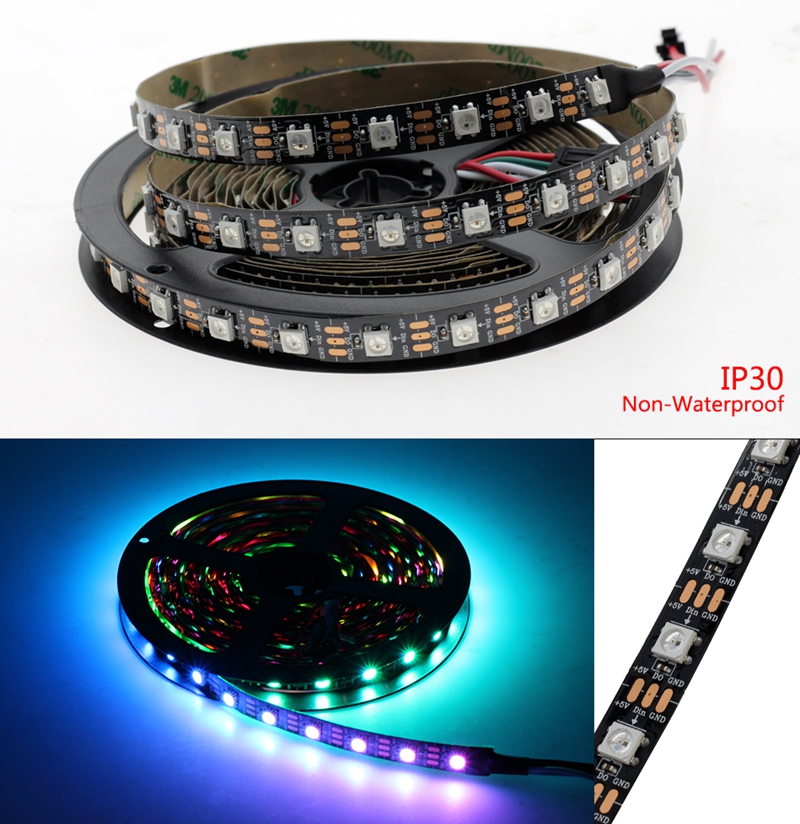

IP30 Non-Waterproof.

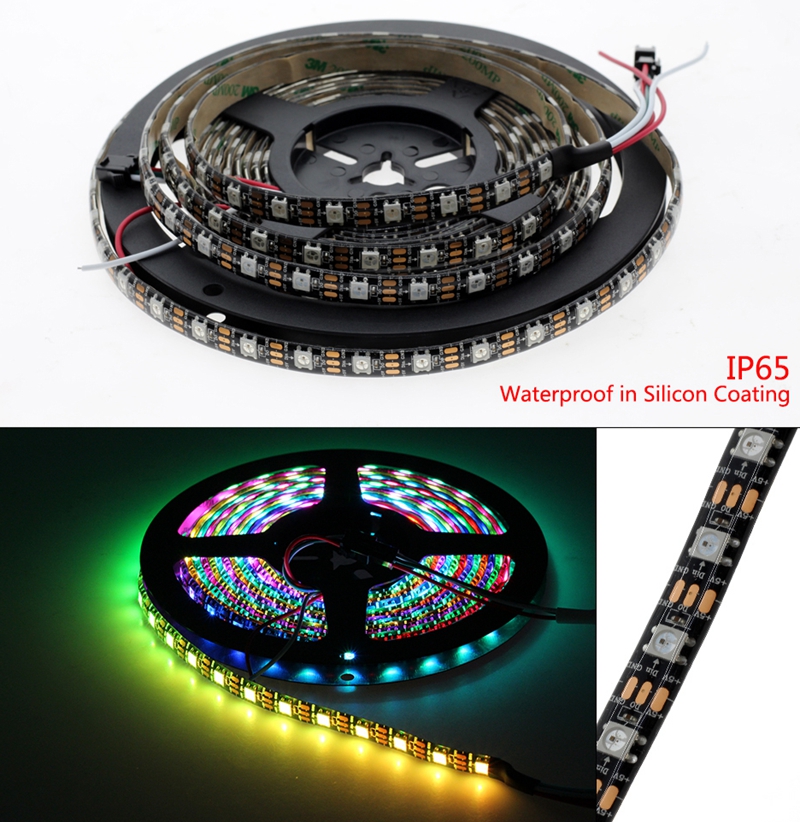

IP65 Waterproof in Silicon Coating.

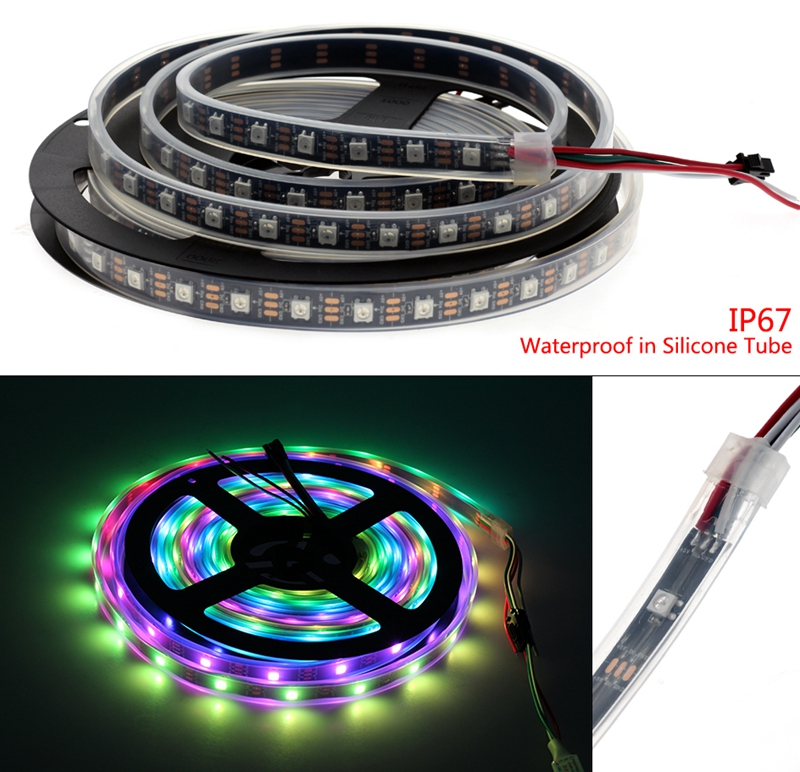

IP67 Waterproof in Silicone Tube.

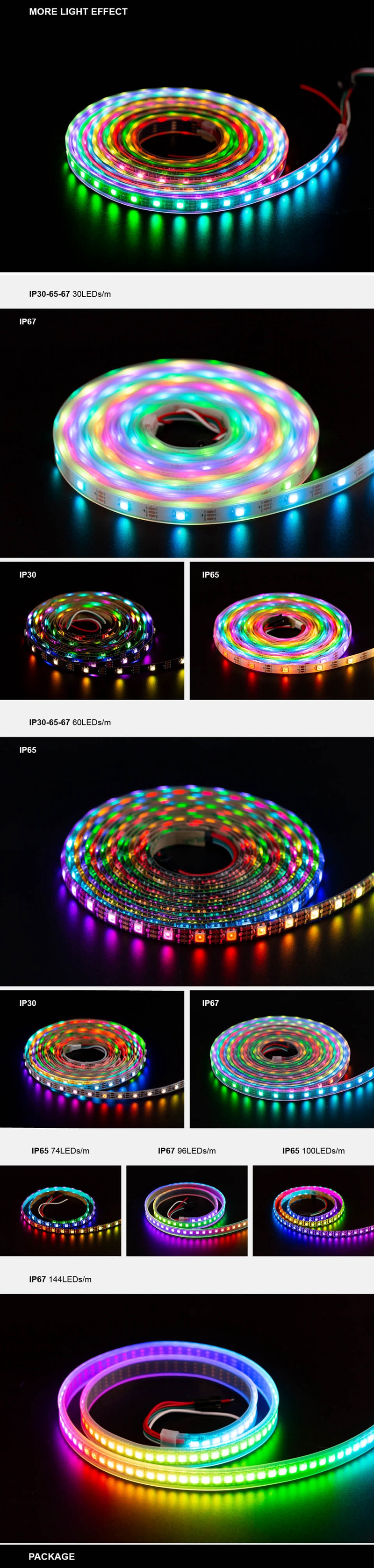

Lighting Colors: Full color RGB, dream color changing.
Cuttable: Every LED is cuttable.
Package: In anti-static bag, IP30 IP65 with adhensive tape on the back.

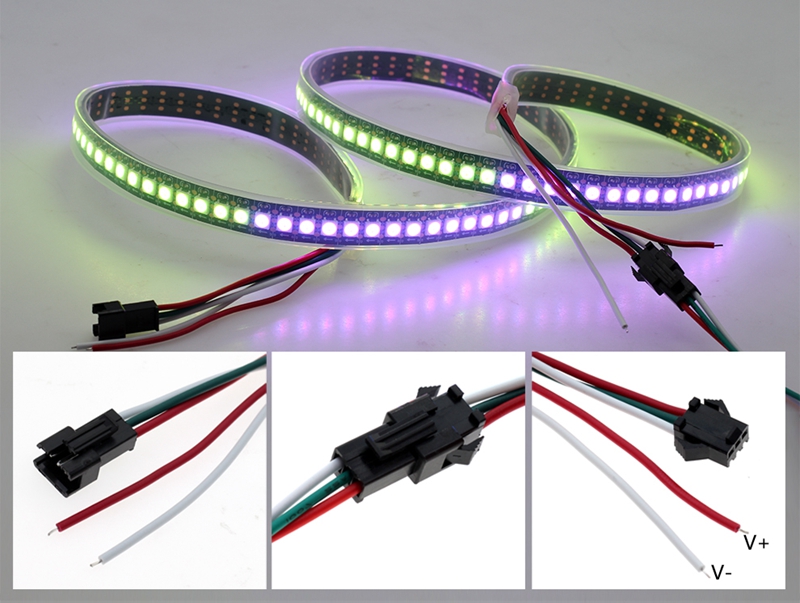

(IP67 without adhensive).Each strip with one free male connector for connector.
How to Install the led strip Light?
1,clean the surface on the installation,
2,cut or connect to the lenght you need,
3,Tear off the M tape for easy installation,
4,connec adapter to led strip
Notice: 12V 24V LED strip is low voltage led strip, must connect 12v or 24V power supply, should not connect 220V or 110V voltage, otherwise will be heating!
FAQ
Q1: Can I have a sample order for led lights?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for led light order?
A2: Low MOQ, 1pc for sample checking is available
Q3. What about the lead time?
A3: Sample needs 2-5 days, mass production time needs 1-2 weeks for order quantity more than
Q4. Is it OK to print my logo on led light product?
A4: Yes. Please inform us formally before our production and confirm the design firstly
Q5:How do your factory control quality?
A5:Quality is the most important part for us.
In order to control quality better, We have professional QC. All our products pass 4 times inspection by QC before delivery. The first time for raw material, second for finished products, third for products appearance and fourth for function.
Q6:How do you ship the goods and how long does it take to arrive?
A6: If ship by Express ( DHL, UPS, FedEx or TNT) It usually takes 4-7 days delivery to you.
If By sea shipping LCL Take 15-45 Days ,FCL need 5-35 Days to your port
Q7: How about the delivery cost and tax cost?
A7: Delivery cost is depend on the way, destination and weight. And tax is depend on customer's local customs.
Q8: Do you offer guarantee for the products?
A8: Yes, we offer 2-3 years warranty to our products.
If you are interested in the product, contact 2bvideo.com for more information for more information
