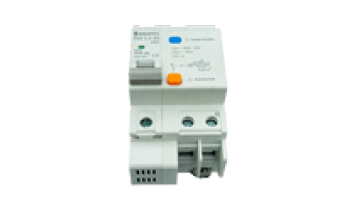

ELCB TRE-50 3P

4 year ago

39 0

ZHEJIANG QIANNA ELECTRIC CO.,LTD

 4 year year

Product details

ELCB TRE Series

TRE2-50 series ELCB

Standard
TRE series circuit breaker and auxiliaries comply with the following international standard:
1.IEC/EN 60947-1
Low-voltage switchgear and controlgear-part 1: General rules;
2.IEC/EN 60947-2
Low-voltage switchgear and controlgear-part 2: Circuit breakers;

TRE series ELCB(Standard use environment for TRE series ELCB)
1. Ambient temperature: Within the range of -5ºC--+40ºC(However, the average for the duration of 24 hours must not exceed 35ºC);
2. Altitude: 2000m or less
3. Installation class: III
4. The magnetic field near the instalation site should not be more than five times the earth magnetic field in any direction.
5. Pollution: II

Classification:
According to the poles: 2-poles, 3-poles
According to the rated current: Fix type
According to the trip action time: Fix type
According to the rated residual current: Fix type
FRAME 50 MCCB 3 poles

Technical data table

壳架Model (AF)		50AF
型号Product type		TRE2-50/2				TRE2-50/3
极数Number of poles		2				3
额定电流Rated current (A)	In	5, 10		15, 20, 30, 40, 50		5, 10		15, 20, 30, 40, 50
额定电压Rated voltage(V)	Ue	220/415				220/415
额定绝缘电压 (V) Rated Insulated voltage, 50/60Hz	Ui	500				500
额定冲击电压(kV) Rated impulse voltage	Uimp	6				6
额定剩余动作电流(mA) Rated residual current		30				30
动作时间(sec) Action time		<0.03 sec				<0.03 sec
额定极限短路分断能力(kA) Ultimate breaking capability(lcu) GB 14048.2, IEC/EN 60947-2	Icu	220V	415V	220V	415V	220V	415V	220V	415V
		5	2.5	10	5	5	2.5	10	5
lcs=%×lcu		75%		75%		75%		75%
尺寸Dimensions (mm)	a	50				75
	b	98				98
	c	60				60
	d	80				80
重量Weight (kg)		0.31				0.41
