IBR Roof Sheet Roll Forming Machine
This High Speed Roof Sheet Making Machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets. SUF100-330 Ridge Cap Roof Forming Machine produce building material so Warehouse Storage Racking Forming Machine is usually use for construction. To be more precise that's widely used in various industrial factory, beauty spot, holiday village building, hotel, exhibition, easy steel building manufacturing, and have features such as nice appearance and durable.
Components:
5 Tons Hydraulic Decoiler
Leveling
Main Roll Forming
Hydraulic station
PLC Control system
Hydraulic cutting
Receving table
Technical parameters:
1. Raw materials: Galvanized coils, Pre-painted coils, Aluminum coils
2. Material thickness range: 0.35-0.8mm
3. Forming speed: 10-15m/min
4. Rollers: 16-20 rows(according to drawings)
5. Material of rollers: 45# steel with chromed
6. Shaft material and diameter: 75mm, material is 45#steel
7. Material of body: 400H steel
8. Wall panel: 20mm Q195 steel(all with electrostatic spraying)
9. Controlling system: PLC
10. Main power: 7.5KW
11. Material of cutting blade: Cr12 mould steel with quenched treatment
12. Voltage: 380V/3Phase/50Hz (customized)
13. Total weight: about 4 tons
5 Tons Hydraulic Decoilers:
Inner Diameter: 450-600mm
Outer Diameter: 1500mmCoil Width: 1300mm

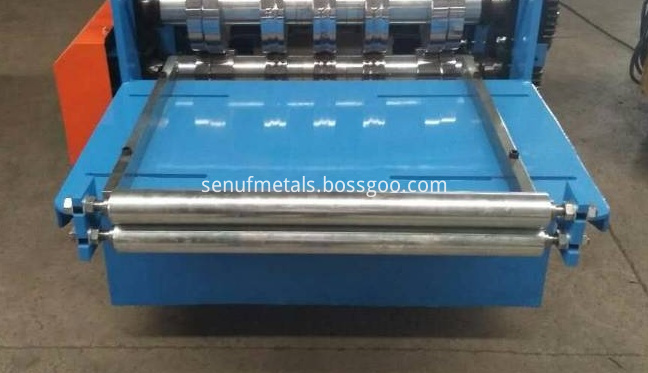

Leveling:
Keep materials straight, and the width can be adjusted by manual.

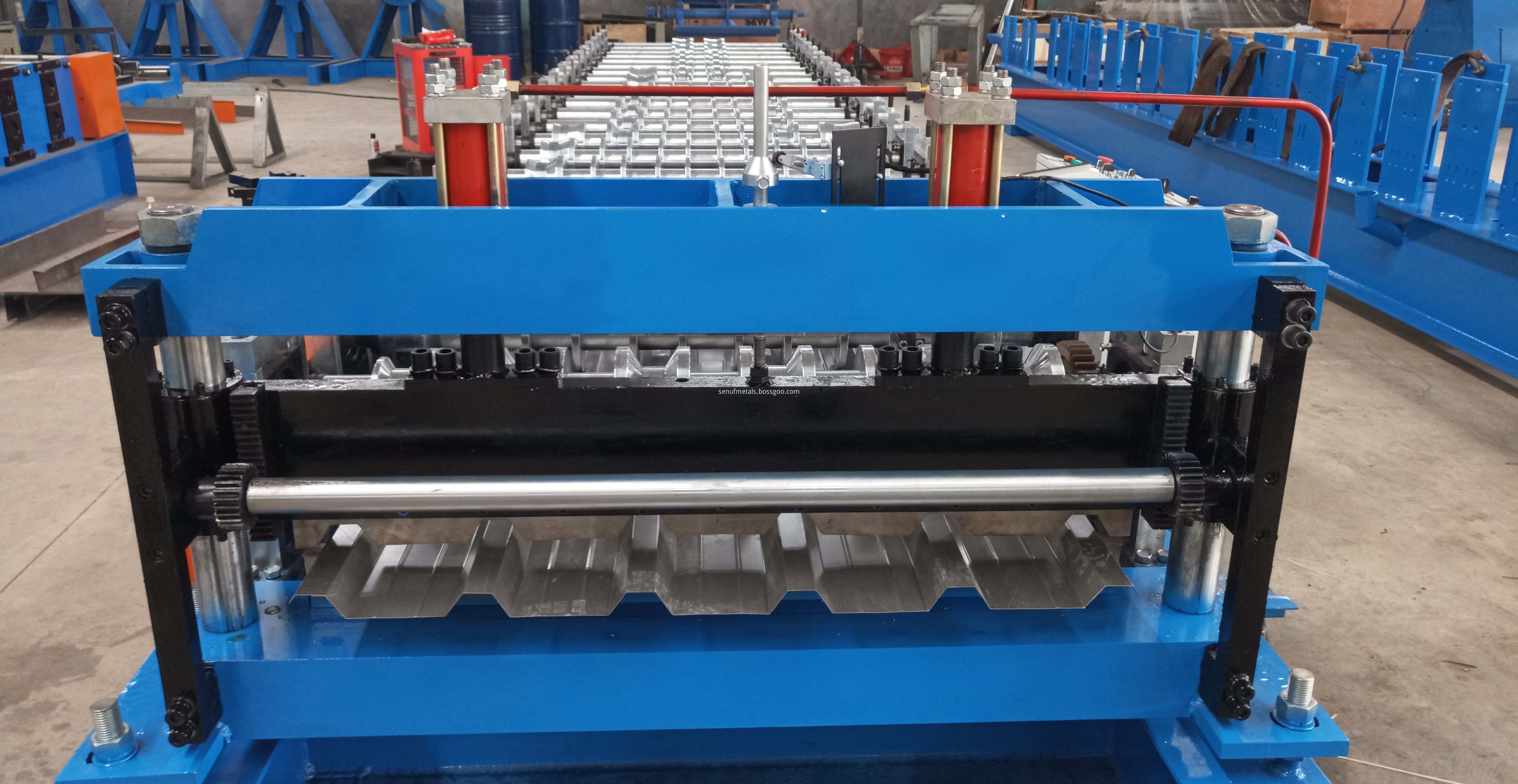

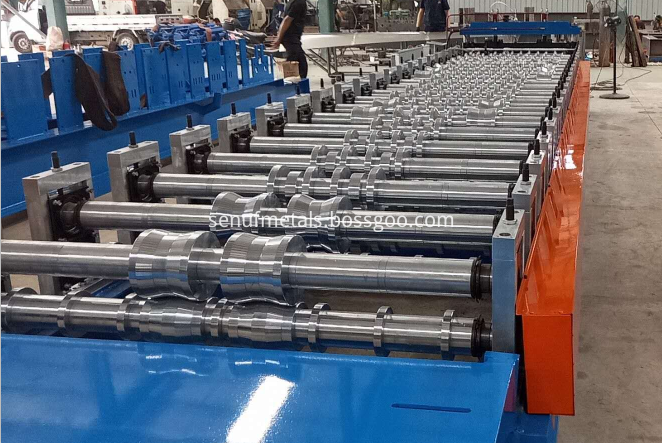

Main Roll Forming:
1. Machine frame: 400H Steel
2. Transmission: Chain
3. Forming steps: 16-20 steps
4. Shaft Diameter: 75mm
5. Roller Material: 45# steel with chromed
6. Forming Speed: 10-15m/min
7. Motor: 7.5KW
Hydraulic station:
1. Power of the oil pump: 4kw
2. Hydraulic oil :40#
Control System: PLC
Brand: Delta
Language: Chinese and English (as required)
Function: Automatic control the cutting length and quantity, easy to operate and use.
Hydraulic cutting:
Cutter Material: Cr12 mould steel with quenched treatment
Cutting Tolerance: ±1.5mm
If you are interested in the product, contact 2bvideo.com for more information for more information
