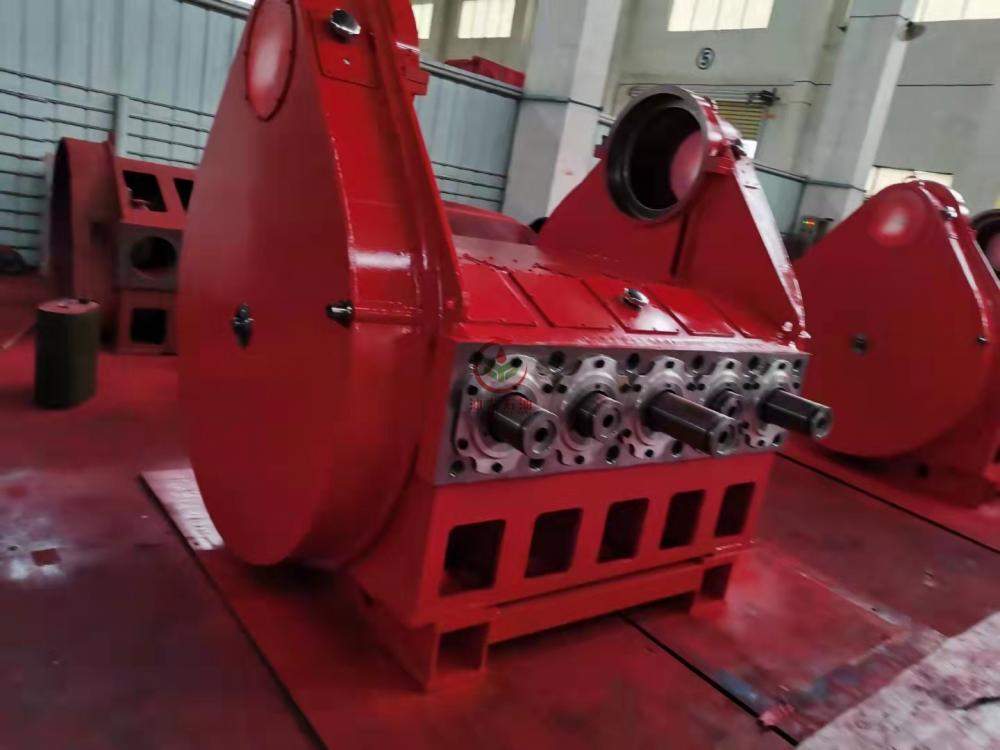

2500 Quintuplex Plunger Pump is applicable for Fracturing, Cementing, Sand proof, acidizing etc. Compared with the same rated power pump, The pump's volume and weight are increased a lot, but its capacity increased by nearly 1.7 times, so that the work efficiency has been a qualitative leap. The pump also adopts herringbone gear reducer, its operation is stable and reliable. New spring supporting structure for the fluid end, not only improve the volumetric efficiency, but also make maintenance and repairment more convenient.
（1）Power end
Technical parameters
|
Power Braking (Max) |
2,500HP (1,864KW) |
|
Connecting rod Load (Max) |
192,325 lbf (855.5KW) |
|
Stoke |
8" (203.2mm) |
|
Driving Model |
Double cylinder oblige gear transmission |
|
Speed rations |
6.353:1 |
|
L×W×H mm |
86.65×79.27×45.7 in. (2,201×2,013×1,161mm) |
|
Weight |
16,093 lbf (7,300Kg) |

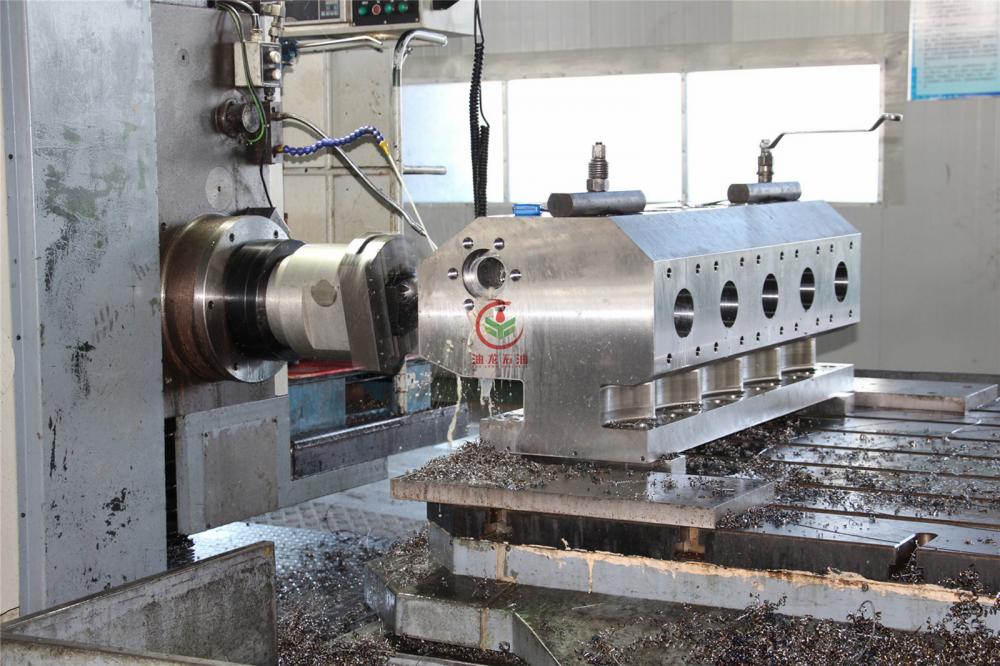

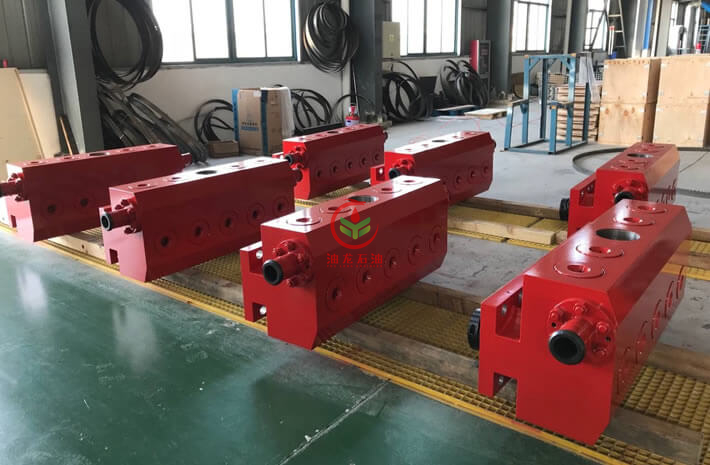

(2) Fluid end
|
Item |
Model |
Specification |
Monthly output/ Set |
L×W×H （mm） |
|
Fluid end |
2500 |
4",4.5",5",5.5" |
30 |
1323×581×506 |
Specifications and parameters
|
Plunger Diameter |
Output Per Rev |
DISPLACEMENT AT PUMP STROKES PER MINUTE/PINION RPM |
|||||||
|
100/635 |
150/953 |
250/1588 |
330/2100 |
||||||
|
In(mm) |
Gal/Rev(Liter/Rev) |
GPM(LPM) |
PSI(Mpa) |
GPM(LPM) |
PSI(Mpa) |
GPM(LPM) |
PSI(Mpa) |
GPM(LPM) |
PSI(Mpa) |
|
3 3/4in.(95.3) |
1.91(7.24) |
191(724) |
17800(122.7) |
287(1085) |
13500(93.1) |
478(1809) |
8100(55.8) |
631(2388) |
6100(42) |
|
4 in.(101.6) |
2.17(8.23) |
217(823) |
15600(107.5) |
326(1235) |
11800(81.3) |
544(2058) |
7100(48.9) |
718(2717) |
5400(37.2) |
|
4 1/2in.(114.3) |
2.75(10.42) |
275(1042) |
12400(85.5) |
413(1563) |
9300(64.1) |
688(2605) |
5600(38.6) |
908(3438) |
4200(28.9) |
|
5 in.(127) |
3.4(12.86) |
340(1286) |
10000(68.9) |
510(1930) |
7600(52.4) |
850(3216) |
4500(31) |
1121(4245) |
3400(23.4) |
|
5 1/2in.(139.7) |
4.11(15.56) |
411(1556) |
8300(57.2) |
617(2335) |
6300(43.4) |
1028(3891) |
3800(26.2) |
1357(5136) |
2800(19.3) |
|
5 3/4in.(146.1) |
4.49(17.01) |
449(1701) |
7600(52.4) |
674(2552) |
5700(39.3) |
1124(4253) |
3400(23.4) |
1483(5614) |
2600(17.9) |
|
6in.(152.4) |
4.89(18.52) |
489(1852) |
6900(47.5) |
734(2779) |
5300(36.5) |
1223(4631) |
3200(22) |
1615(6113) |
2400(16.5) |
|
6 1/2in.(165.1) |
5.74(21.74) |
574(2174) |
5900(40.6) |
861(3261) |
4500(31) |
1436(5435) |
2700(18.6) |
1895(7474) |
2000(13.7) |
|
6 3/4in.(171.45) |
6.19(23.44) |
619(2344) |
5500(37.9) |
929(3517) |
4200(28.9) |
1548(5861) |
2500(17.2) |
2044(7736) |
1900(13.1) |
|
INPUT POWER: BHP (KW) |
2200(1641) |
2500(1864) |
2500(1864) |
2500(1864) |
|||||
