Small Brass Chips Briuqetting Press

Small Brass Chips Briuqetting Press

2 year ago

13 0

DILOYA GROUP CO.,LTD.

 2 year year

Product details

A small brass chips briquetting machine is a device used to compress brass chips into briquettes. These briquettes are easier to handle, transport, and store, making them a more convenient and efficient way to deal with brass chips waste.

The machine typically consists of a hopper, a compression chamber, a hydraulic system, and a control panel. The brass chips are fed into the hopper, which then transfers them into the compression chamber. Inside the compression chamber, the chips are compacted under high pressure, resulting in the formation of briquettes.

The hydraulic system provides the necessary force to compress the brass chips. It consists of a hydraulic pump, cylinders, and valves that control the pressure and movement of the pistons. The control panel allows the operator to adjust and monitor the machine's operation.

The small size of the machine makes it suitable for small-scale operations, such as workshops or small manufacturing facilities. It can be operated manually or automatically, depending on the model. The briquettes produced by the machine can be sold to metal recycling companies or used as a fuel source in industrial furnaces.

Overall, a small brass chips briquetting machine offers a cost-effective and environmentally friendly solution for managing brass waste. It reduces the volume of waste, improves the efficiency of waste disposal, and contributes to the conservation of natural resources.

We not only have these briquetting press machine, but have other machines such as Factory Price Steel Drillings briquetting machine, Automatic briqeutting press for Metal shavings, SBJ Stainless Steel Drillings briquetting machine, China steel Chips briquette machine, High Density Brass Millings block making machine, Vertical cast iron Chips briquetting machine, High quality Brass Powder briquetting machine, Automatic Copper Scrap Briquetting Press, Vertical Bronze Chips baler, Y83 Stainless Steel Drillings baler, High Quality Steel Drillings baling machine, Automatic Bronze Millings baling machine, Best Performance Aluminum Drillings baling machine, China Bronze Swarfs baling machine, High density briquetter for Metal shavings, Automatic Bronze borings block making machine, High Quality Bronze borings block making machine, China Stainless Steel Millings briquetting machine, Vertical metal Borings briquetting press, Hydraulic briquette machine for Stainless Steel turnings, Best performance Copper Chips briquetting press, Automatic block making machine for Aluminum borings, Low cost metal Shavings briquette machine, Automatic baling machine for Steel millings, Vertical Steel Drillings baler, High Quality Cast Iron Millings briquetter, China Cast Iron turnings block making machine, High quality metal Swarfs baler, Vertical briquetting Press For Brass chips, Low cost Brass Turnings briquette machine, High Density Stainless Steel shavings block making machine, Copper flakes granules briquetting press baler, Low Cost Brass Drillings block making machine, SBJ Copper Turnings briquetter, Factory Price Metal Drillings Blok Making Machine, Automatic Cast Iron borings block making machine, Vertical briqeutting press for Steel powder, Automatic Hydraulic briquetting machine for bronze powder, Waste Metal Chip Briquetting Press, Hydraulic briquetting machine for Aluminum drillings etc...

Please contact with us if you have any questions.

Parameters:

Model	BPM40	BPM60	BPM80	BPM100
Bale Size	Φ70x(30-40)mm	Φ80x(30-50)mm	Φ90x(40-60)mm	Φ100x(40-70)mm
Bale Weight	0.4-0.65kg	0.54-0.8kg	0.68-1.1kg	0.85-1.4kg
Bale Density	5-7t/m3	5-7t/m3	5-7t/m3	5-7t/m3
Motor Power	4kw	5.5kw	7.5kw	11kw
Machine Weight	670kg	850kg	1260kg	1560kg
Machine Size	1200x980x1200mm	1400x1100x1400mm	1550x1250x1600mm	1800x1450x1750mm

Features:

> Schneider electrical components prolong the service life of the machine.

> 24 hours reply, video, phone call, email support, if any question, we response at first time.

> The bale weight ranges from 1.5kg to 22kg, more options for your choices.

> Output capacity can be up to 200-300bales per hour, more efficient.

> World famous brand of Siemens PLC to promise you run the machine without any worry.

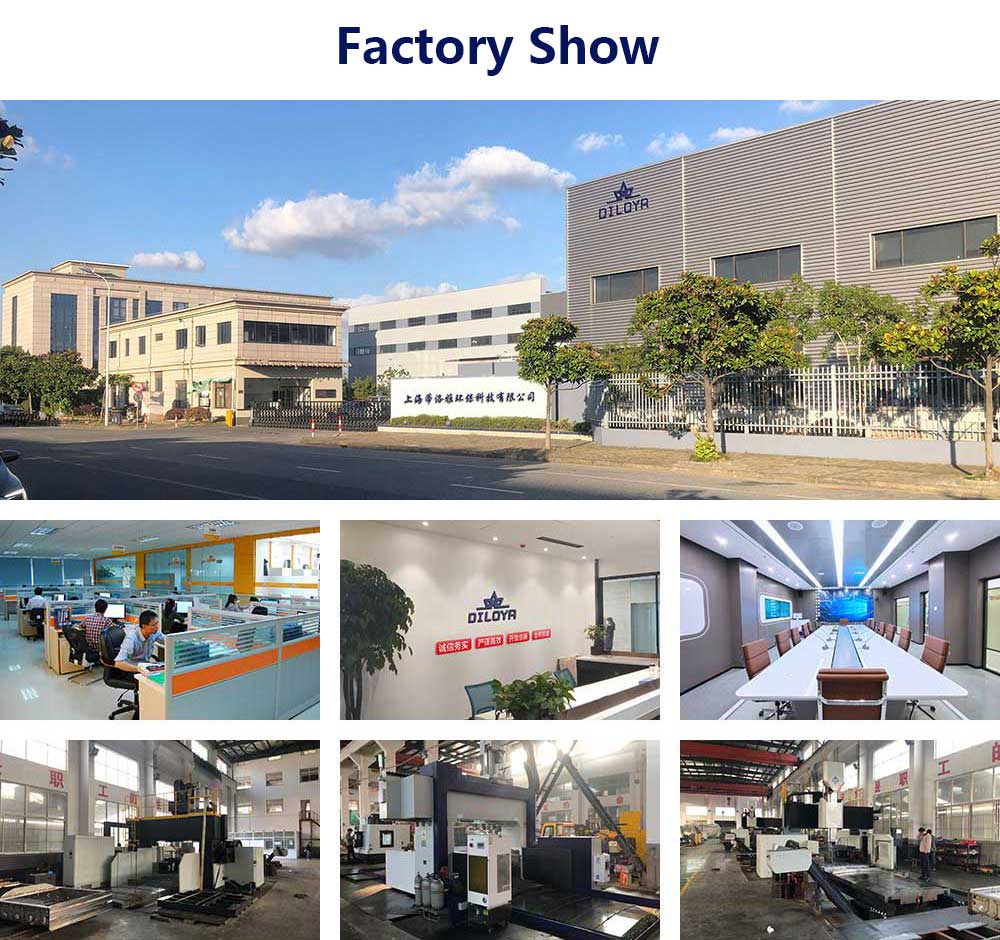

Factory Show

FAQ:

> How to install Best performance Bronze Shavings briquetter?

For small briquetting machine, we will not disassemble it when shipping, you just need to add hydraulic oil and connect to the electrical power, then operate per user manual, that is Ok, for bigger one, we will make detail marks when disassembling the machine, you just only need to assemble the machine per marks, that is alright; and you can contact with our technical team when you have any problems.

> What bale size does the Y83 Bronze Turnings briquetting machine produce?

We can customize the bale size per your requirement, also you can tell us your requirement, we can suggest you suitable bale size accordingly.

> How to maintain Factory Price Bronze Millings briquetter?

When you were operating the briquetting machine, you need to clean the oil tank every 3 months, and check the wire, and oil pipe leakage or not, and also check the bolt every shift, you can find all maintenance items in the user manual.

> What all do I need to install the SBJ Copper Shavings briquette machine?

After the metal scrap briquetting machine arrived your place, you need the hydraulic oil, cable wire, worker, electrical technician, then you can start to test and operate the briquetting machine per user manual, or make video call with our engineer.

> What is output capacity of Automatic Hydraulic Briquetting machine for bronze chips?

The machine capacity ranges from 50kg per hour to 150kg per hour, different models has differnt capacity, small models has small output capacity, and bigger one has big capacity accordingly.
