Product Application

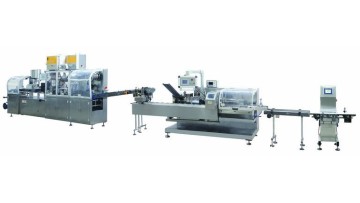

Automatic PFS Syringe blister packing and Cartoning Packaging Line (GYC-300)
The production line is the first domestic automatic packaging equipment for the pre-filled syringe , and developed by ourself. This line suitable for syringe , syringes and vials mixed packing.
Pre-filled Syringe Packaging Line
Vial Ampoule Syringe Blister Packing And Cartoning Line
SPECIFICATIONS FOR Technical Data
|
|||
Max output
|
≤ 300 cartons/min ≤300 syringes/min
|
||
Max Forming area and depth
|
345*130*35mm
|
||
Leaflet Size
|
(100-260)*(100-170)mm
|
||
Carton material
|
250-350g/㎡
|
||
Weight
|
5000kg
|
||
Carton size
|
(60-230)*(20-140)*(14-80)mm
|
||
Air compressor
|
0.6-0.8Mpa≥ 0.8 m³/min
|
||
Leaflet material
|
50-70g/ ㎡
|
||
Power
|
380V 50Hz 8 kw (200V , 60Hz)
|
1) Uses the ABB Robots feeders , improve production effciency and automatic program
2) The feeder can be connect with labeling machine , output can be used with strapping machine , carton packer and other equipment ,thus formed a complete automatic packaging production line
3) F ollows the GMP structure standard , and adopts PLC touch screen interface control system
4) Uses the servo motor-driven and the main motor is adopts frequency control
5) Equipped blister forming detection , feeding Camera detection , lack of material testing , to ensure the passing rate of finished products.
If you are interested in the product, contact 2bvideo.com for more information for more information
