SUF 845mm Width Floor Steel Metal Deck Roll Forming Machine line for Sales
The specs of flooring deck panel roll forming machine could be customized according to your detail requirements. We promise to provide high quality making machines with best price. The machine is widely used in villa, plant and house building. C80-300 Z120-300 Purlin Making Machine is simple and strong and popular with many builders.
Main feaures of Floor Steel Metal Deck Roll Forming Machine
The advanges of 845mm Floor Steel Metal Deck Roll Forming Machine are asa follows:
1. The machine produced floor decking sheet have the features of low cost, light weight but high strength, short building period, and re-cycle use.
2. Save material, no waste,
3. Easy operation, low maintenace cost,
4. One machine for 3 models for optional (by changing spacer)
Detailed Images of SUF845mm Floor Steel Metal Deck Roll Forming Machine Line
Machine parts
1. SUF845mm Floor Steel Metal Deck Roll Forming Machine Line manual pre-cutter
Brand: SUF, Original: China
Only for cutting the first piece and the end of piece of the sheet. For easy operation and save material: The precutter is conneted with PLC control system, PLC is calculating profile length with roll forming. Once material is required to change, PLC is calculating the length for total quantity and remid operator, production finishes and able to manual shearing material before roll forming so as to change material for new production. It is the advanced function and good for production to save material, no waste.
2. SUF845mm Floor Steel Metal Deck Roll Forming Machine Line rollers
Rollers manufactured from high quality 45#steel, CNC lathes, Heat Treatment. with Hard-Chrome Coating for long working life.
Body frame made by 400H steel by welding, The material for embossing roller: bearing steel GCR15, heat treatment.
3. SUF845mm Floor Steel Metal Deck Roll Forming Machine Line post-cutter
Made by high quality mold steel Cr12 with heat treatment,
Cutter frame made from high quality 20mm steel plate by welding,
Hydraulic motor: 5.5kw, Hydraulic pressure range: 0-16Mpa

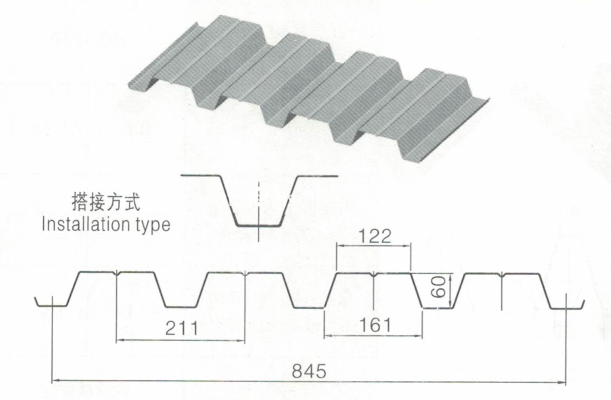

4. SUF845mm Floor Steel Metal Deck Roll Forming Machine Line product sample
5. SUF845mm Floor Steel Metal Deck Roll Forming Machine Line decoiler
Manual decoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max feeding width: 1200mm, coil ID range 508±30mm
Capacity: 5-9 ton
6. SUF845mm Floor Steel Metal Deck Roll Forming Machine Line
Un-powered, one unit
Other detailes of SUF845mm Floor Steel Metal Deck Roll Forming Machine Line
Suitable for material with thickness 0.8-1.5mm
Shaft manufactured from 45#, Main shaft diameter Φ90mm, precision machined
Motor driving, gear chain transmission, 22 steps to form,
Main motor 18.5kw, Frequency speed control, Forming speed approx 12-15m/min
PLC control system (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW, Inverter brand: Taiwan Delta, Encoder brand: Omron)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc,
Cut-to-length tolerance≤±2mm,
Control voltage: 24V
User's manual: English
