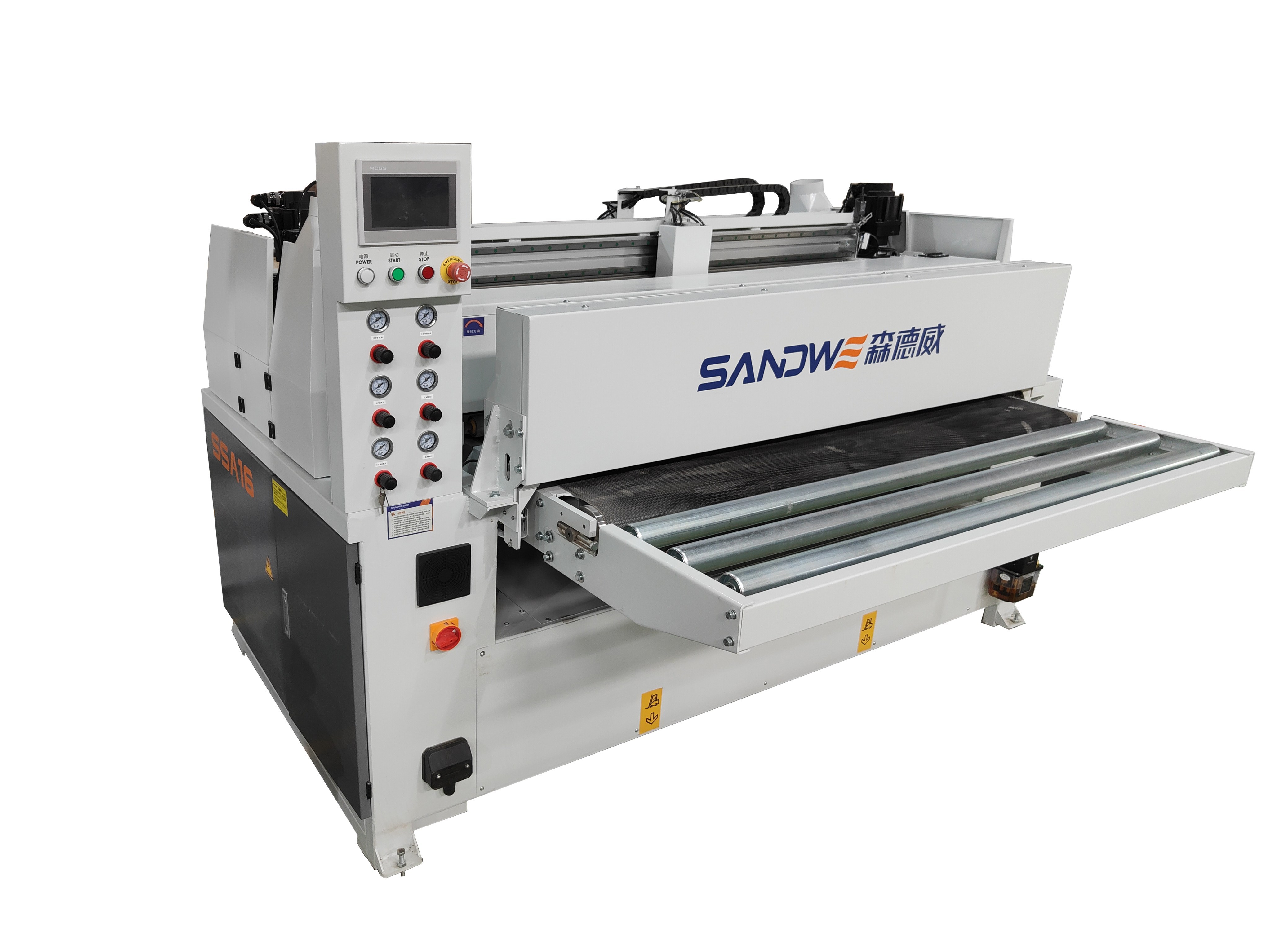

CNC sand pressing
Model No. : SSA16-H2
Equipment characteristics：
1. This series has a wide range of sanding processing. Solid wood, multilayer board, density board, white embryo, wood veneer and primer of flat board can be sanded.
2. One-key start, full-automatic digital control and adjustment of the whole machine, simple and convenient operation.
3. The two sand heads are driven by servo, and the position is accurate, which can well protect the head, tail and side of the plate from sand penetration.
4. The system adopts PLC program to control touch screen communication frequency converter, which can visually display, operate, adjust, maintain and indicate.
|
Equipment model |
SSA16-H2 |
|
Machining width |
30～1600 mm |
|
Minimum machining length |
300 mm |
|
Machining thickness |
5 ～ 250 mm |
|
Feeding speed |
1 ～ 10 m/min |
|
Conveying motor power |
1.5kw |
|
Power of sand pressing servo motor |
2×1.0kw |
|
Lifting motor power |
1×0.55kw |
|
Power of transverse sand main motor |
2×2.2kw |
|
Abrasive belt size |
4450x180mm |
|
Conveyor belt width |
1600mm |
|
Power supply requirements |
3/N/PE 380/220V 50Hz |
|
Gas source pressure |
4-6MPa |
|
Velocity of dust collection |
22n/s |
|
Vacuum suction port |
Φ125mm×2个 |
|
Total power |
8.45kw |
|
Overall dimension |
2150×2180×1650mm |
|
Packaging size |
1750×2180×1650 |
|
Weight |
1200kg |
Why Choose Us
Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory
2) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
