Product description:
Door core board sanding machine Straight sand edge machine SEB-S2W2
The edge sanding machine can sand and polish the door core board of solid wood materials;
Strong targeting, simple and easy to operate;
Configure different abrasive belts according to different process requirements to complete the corresponding work.

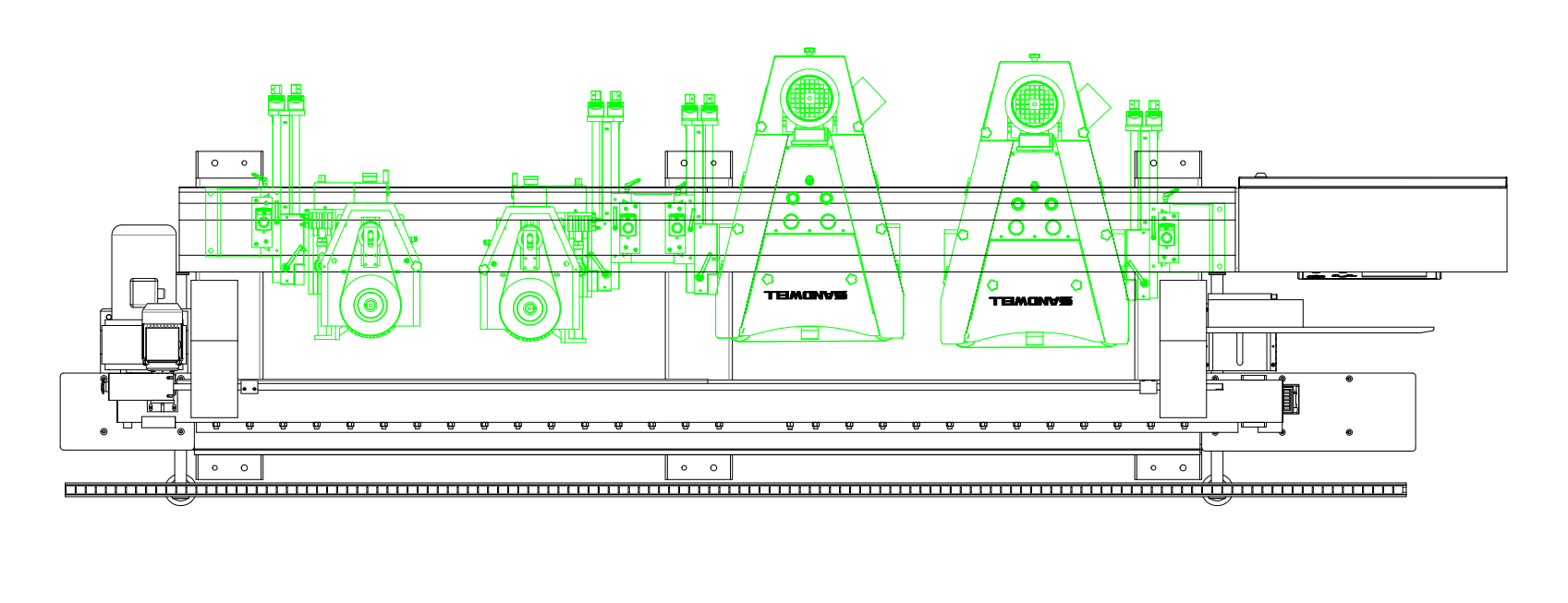

Equipment Configuration Chart
1. The first and second are sand frame units, suitable for flat sand and large arc sanding
2. The third and fourth are two sand head units with automatic wear compensationComponent description:
The sand frame and sand head can be adjusted from 0 ° to+90 °, suitable for edge straight line imitation sanding at a certain angle;
The sand frame is equipped with an oscillation device, and the sand head is equipped with an automatic feed compensation device to ensure wear compensation of the grinding wheel;
The sanding belt speed of this wood sander machine adopts variable frequency speed regulation to adapt to the sanding of different wooden products at the edges and corners; (White embryo, primer)
The material pressing device adopts spring load, belt pressing, reliable pressing, and does not damage the workpiece.
The track adopts chain conveyor and cylindrical guide rail guidance, with strong feeding capacity and stable reliability;
The advance and retreat of the sand frame pressure module are controlled by the program, without the need for adjustment, greatly improving the efficiency of use.
This edge belt sander adopts touch screen operation, PLC program control, and independent variable frequency speed regulation for each working group.
