Four- Side Milling Angle Sander:

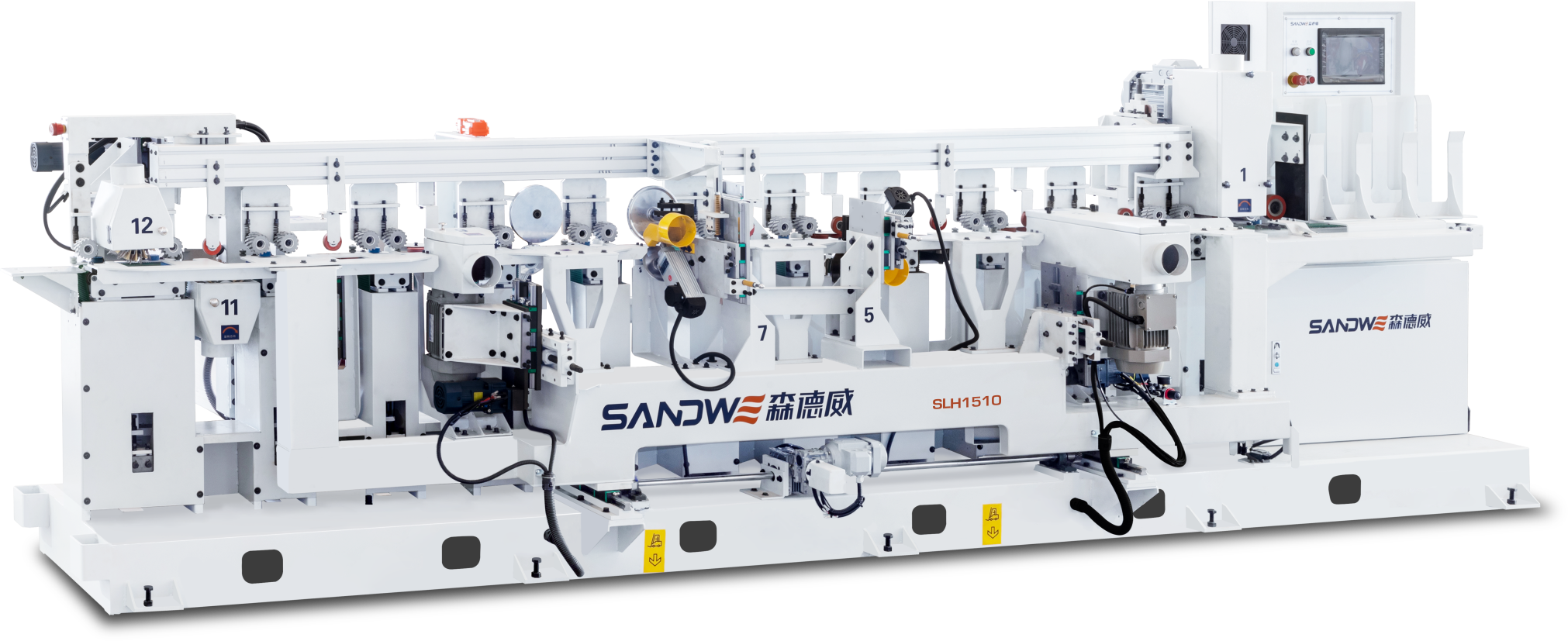

Shaped sand blasting machine SLH1510
Before sanding vs After sanding
VS
Abrasive belt：
Abrasive belt with automatic swing function, and has automatic telescopic function, protect the head and tail of the workpiece, easy to operate, easy to replace the belt. Strong grinding capacity and good flatness.

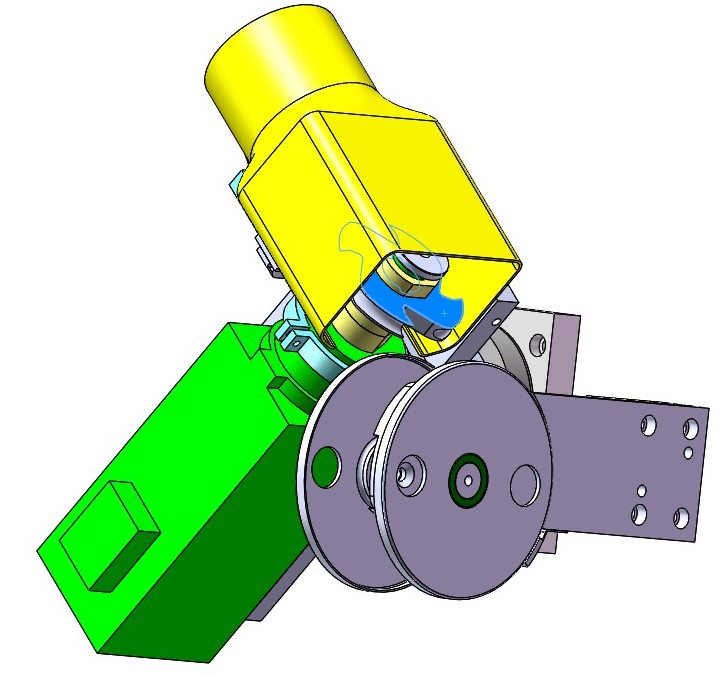

J Milling Cutter Components:
12000 RPM high speed motor, can be on the workpiece edge R2, R3 chamfering.

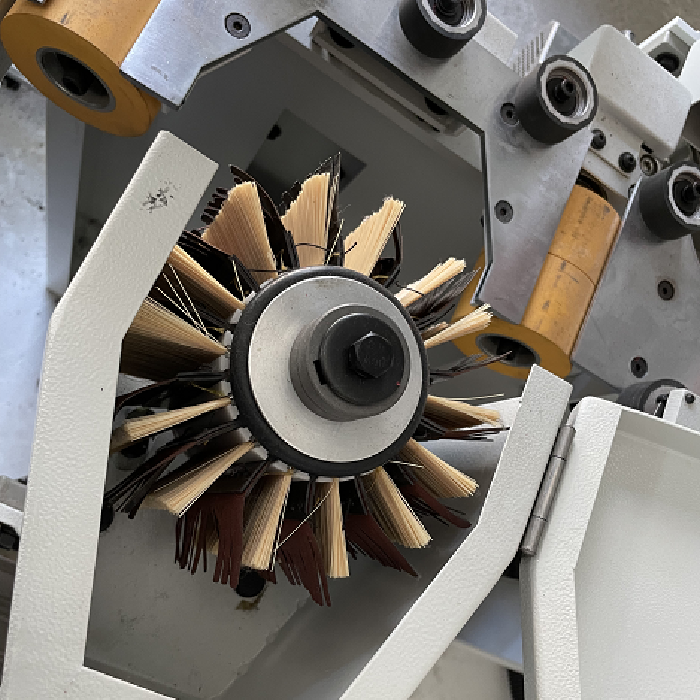

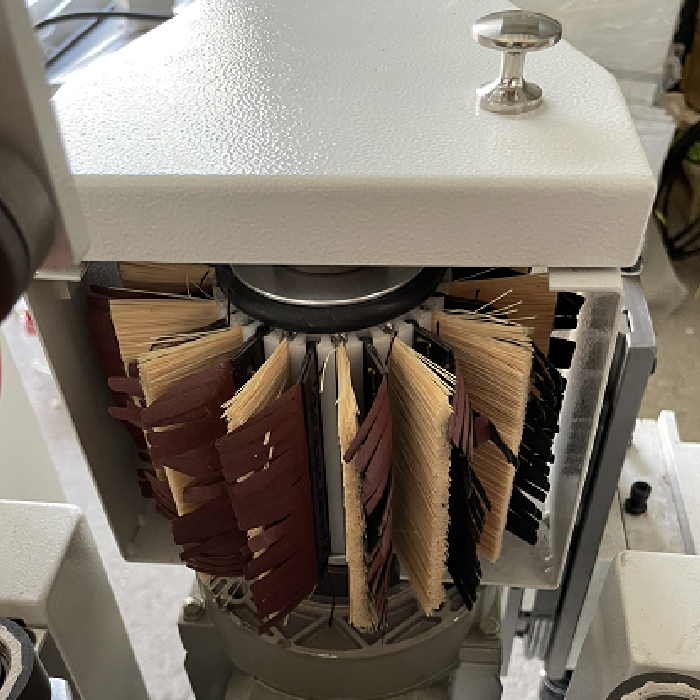

Special-shaped grinding wheel part：
This part is a special-shaped grinding wheel part, which can be used for polishing plane and special-shaped surface, and has channeling function. It can sand wood surface with high efficiency and high quality, and the sand head can independently adjust the speed of abrasive belt by frequency conversion.

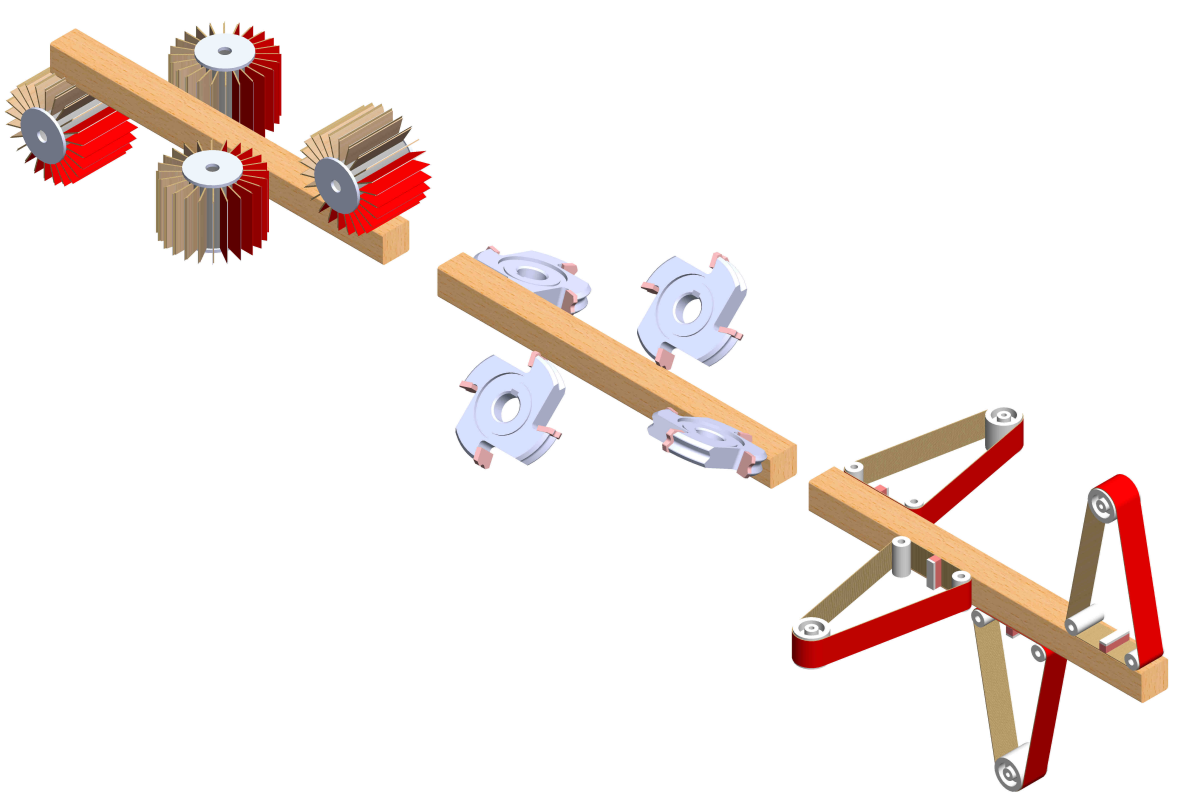

4 Sides Wood Edge Sanding Machine process layout：:
Characteristics of the equipment：
Four-Side Milling Equipment technical parameters：
|
Model |
SLH1510 |
|
Workpiece width range |
30-150mm |
|
Workpiece min length |
300mm |
|
Workpiece thickness range |
5-100mm |
|
Feeding speed |
3-15m/min |
|
Triangle sanding belt size |
1200X150mm |
|
Triangle sanding belt size |
1200X100mm |
|
Polishing sanding wheel |
Φ190×φ25.4×150mm X 2pcs |
|
Polishing sanding wheel |
Φ190×φ25.4×100mm X 2pcs |
|
Dust collector |
Φ100 × 12 pcs |
|
Work pressure |
0.6mpa |
|
Total power |
19.06 KW |
|
oversize |
6000×1300×1350mm |
|
Weight |
3000KG |
If you are interested in the product, contact 2bvideo.com for more information for more information
