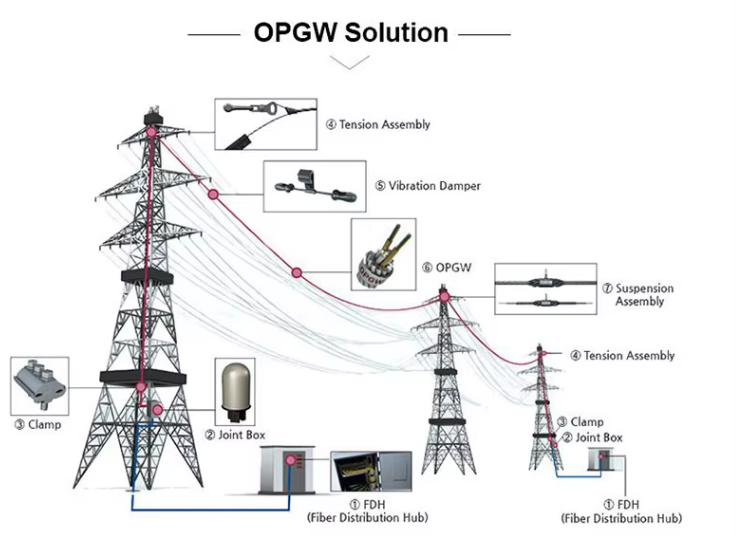

OPGW is a type of cable structure with composite of optical transmission and overhead ground wire for power transmission. Its working in power transmission line both as optical fiber cable and overhead ground wire which can provide protection of lightning strike and conducting short circuit currency.

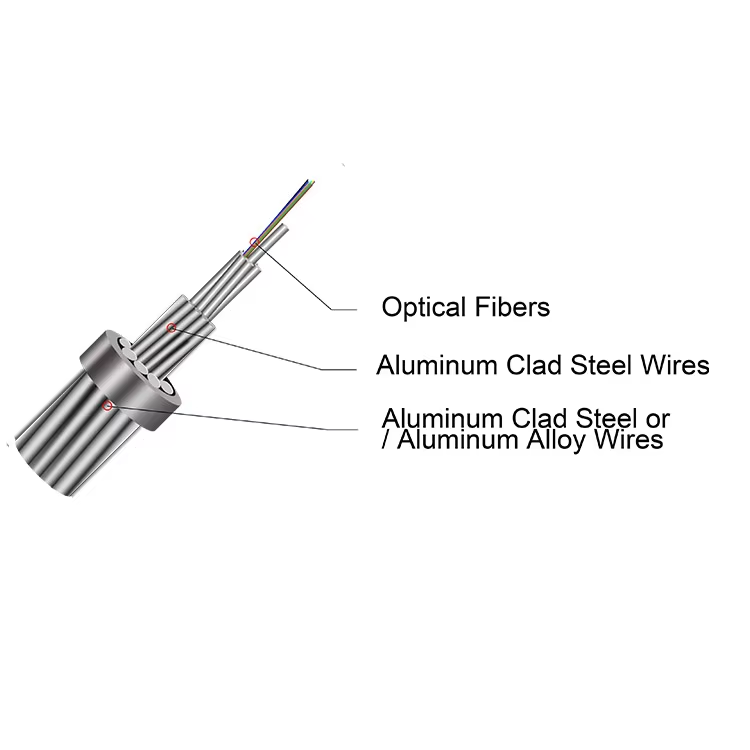

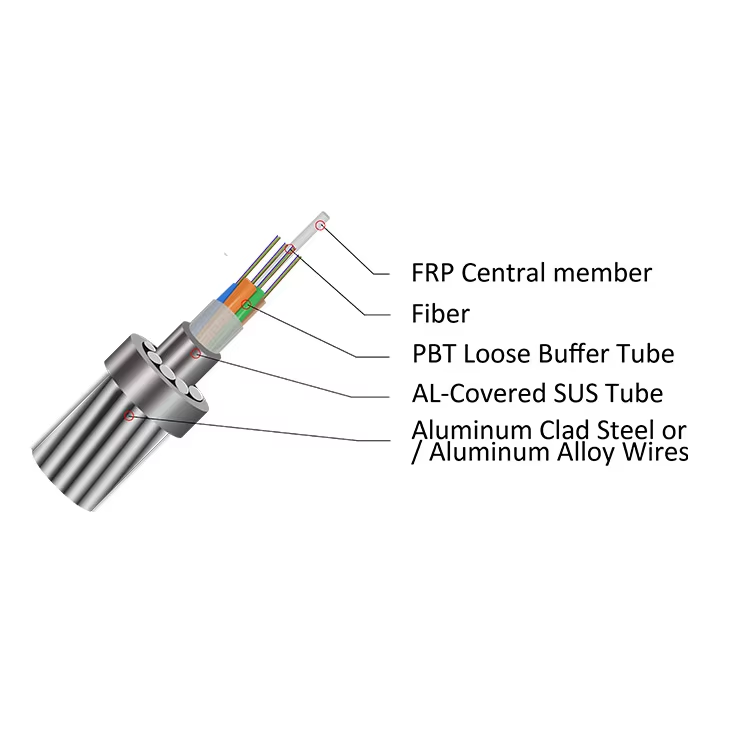

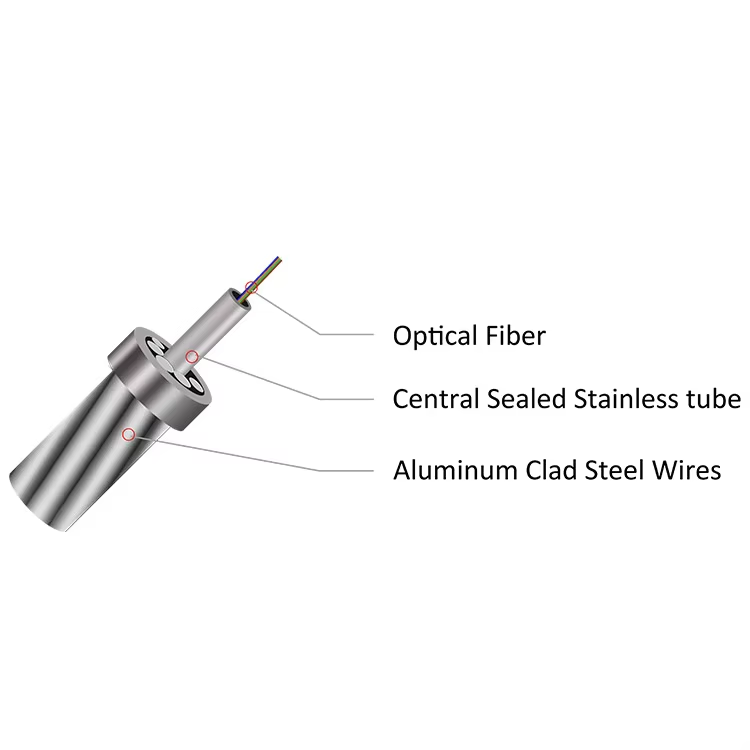

The OPGW consist of stainless steel tube optical unit, aluminum cladding steel wire, aluminum alloy wire. It has central stainless steel tube structure and layer stranding structure. We can design the structure according to different environment condition and customers requirements
Characteristics
optical fibers placed in stranded stainless steel tubes .
fibre excess length in OPGW is more than 0.5%
Stainless steel tubes are gel filled for water resistance and shock absorption.
High fiber counts in several steel tubes (up to 144 cores )
Natural rope-like design very similar to ACSR.
Easy substitution of ACSR ground wires with similar diameter and weight.
No anti-rotation devices required for installtion .
Fully metallic design.
OPGW fiber optic cable datasheet
|
Single Layer Central Tube OPGW |
||||||
|
Model |
Cross Section |
Cores |
OD(mm) |
Weight (KG/KM) |
RTS (KN) |
Short Circuit |
|
OPGW-12(40.6; 4.7) |
32 | 12 | 7.8 | 243 | 40.6 | 4.7 |
|
OPGW-24(54; 8.4) |
42 | 24 | 9 | 313 | 54 | 8.4 |
|
OPGW-24(43.5; 10.6) |
42 | 24 | 9 | 284 | 43.5 | 10.6 |
|
OPGW-36(55.9; 17.5) |
54 | 36 | 10.2 | 394 | 67.8 | 13.9 |
|
OPGW-48(73.7: 17.5) |
61 | 48 | 10.8 | 438 | 73.7 | 17.5 |
|
OPGW-48(55.1; 24.5) |
61 | 48 | 10.8 | 358 | 55.1 | 24.5 |
|
OPGW-54(80.8; 21.7) |
68 | 54 | 11.4 | 485 | 80.8 | 21.7 |
|
OPGW-60(54.5; 41.7) |
75 | 60 | 12 | 459 | 63 | 36.3 |
|
OPGW-60(54.5; 41.7) |
76 | 60 | 12 | 385 | 54.5 | 41.7 |
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
