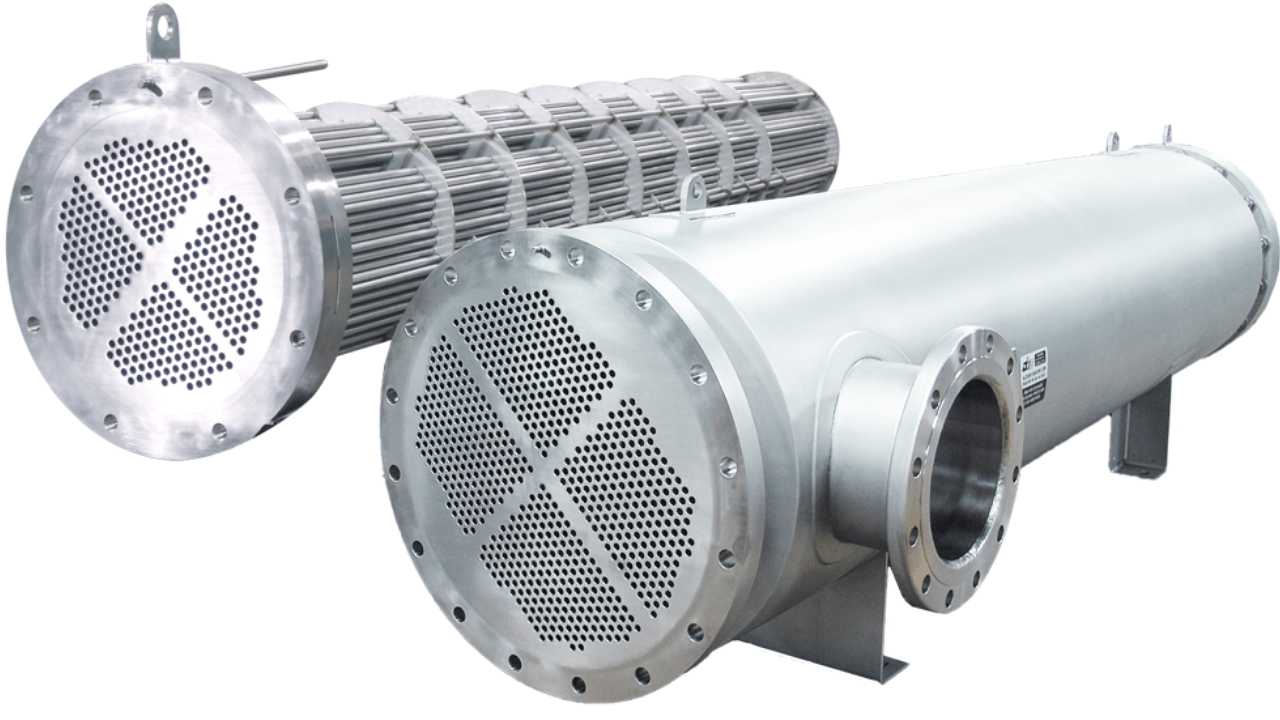

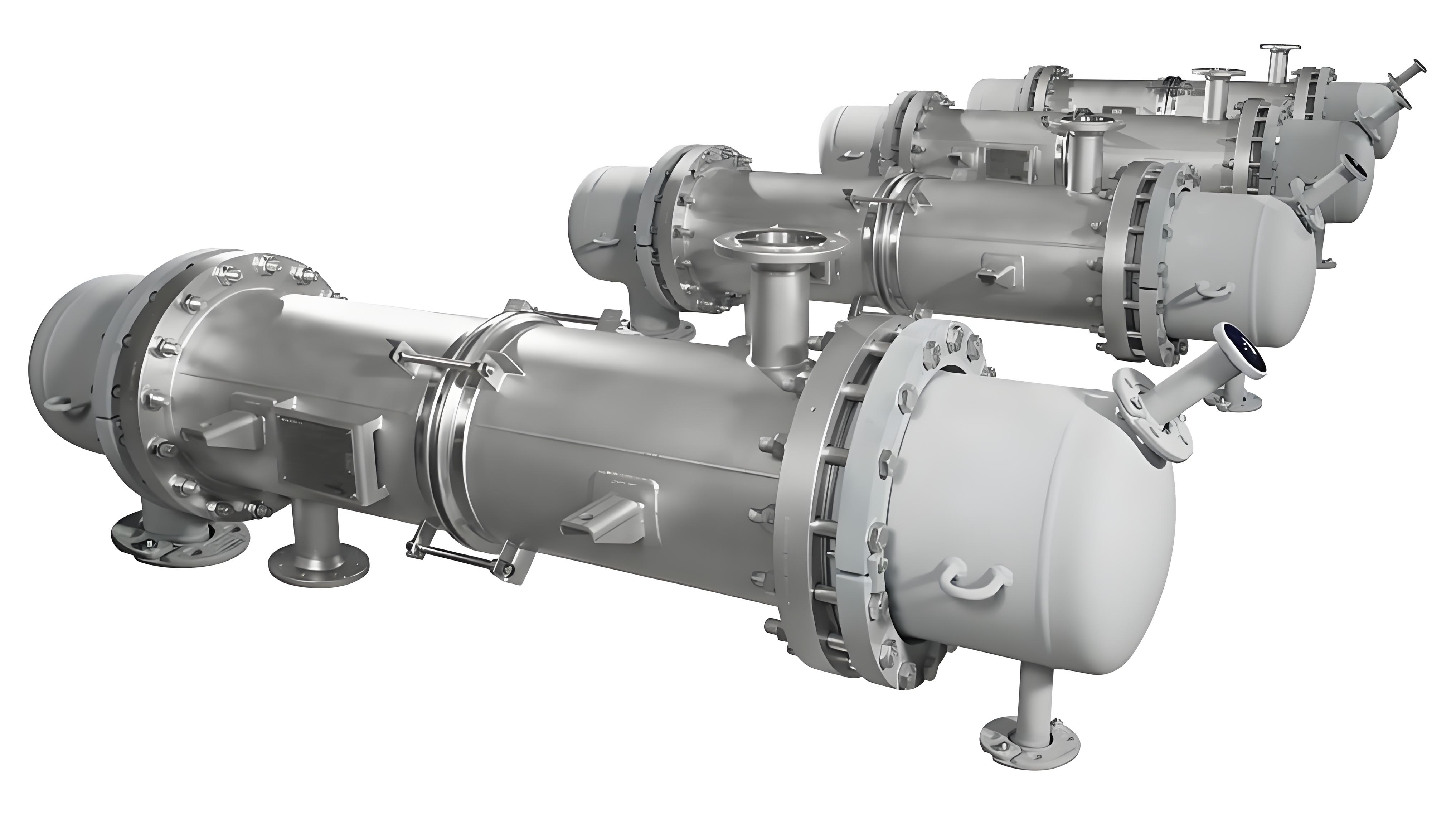

Sanitary Stainless Steel Heat Exchanger Condenser is a premium-quality product designed for applications requiring high hygiene standards. Featuring a robust shell and tube heat exchangers configuration, it offers efficient and reliable heat transfer. This heat exchanger type is ideal for various sanitary processes in the food, beverage, and pharmaceutical industries. Expertise in making heat exchangers ensures precision craftsmanship and corrosion resistance, thanks to its entire construction from high-grade stainless steel. Its seamless design facilitates easy cleaning and maintenance, guaranteeing optimal performance and longevity.
Characteristics of sanitary stainless steel heat exchangers
1. Corrosion resistance: Stainless steel materials have good corrosion resistance and are suitable for a variety of chemical media.
2. High temperature and high pressure resistance: Suitable for high temperature and high pressure working environments.
3. Easy to clean and maintain: The tube bundle can be disassembled for easy cleaning and maintenance.
4. High heat transfer efficiency: Due to the turbulent flow of the fluid inside and outside the tube, the heat transfer efficiency is high.
5. Compact structure: Small size, small footprint, suitable for occasions with limited space.
6. Easy installation: Modular design, easy installation and disassembly.
7. Not easy to scale: The inner wall is smooth, reducing the possibility of scaling.
Application fields of sanitary stainless steel heat exchangers
1. Electronic industry: used for heating, cooling, condensation and evaporation processes.
2. Food industry: used for heating and cooling of products such as milk, juice, beer.
3. Pharmaceutical industry: used for heat exchange in product synthesis and preparation processes.
Sanitary stainless steel heat exchanger condenser structure
1. Shell: usually made of stainless steel, providing the outer frame of the heat exchanger,
2. Tube bundle: composed of many stainless steel tubes
3. Tube sheet: used to fix the tube bundle and connect the tube to the shell.
4. Head: located at both ends of the shell, closes the shell and provides an interface for connecting the pipeline.
5. Baffle: installed in the shell to change the flow direction of the fluid, enhance turbulence and improve heat transfer efficiency.
6. The inner and outer surfaces are mirror polished, with a roughness of Ra≤0.4μm
Working principle of sanitary stainless steel heat exchanger
The working principle of sanitary stainless steel heat exchanger is based on heat conduction and convection heat transfer:
1. The hot fluid flows in the tube and transfers the heat it carries through the tube wall.
2. The cold fluid flows outside the tube, absorbs heat from the tube wall, and increases the temperature of the cold fluid.
3. The tube wall acts as a medium for heat exchange, transferring heat from the hot fluid to the cold fluid.
Quality Assurance and Compliance
1. Quality Control:
(1) Each condenser undergoes rigorous quality control testing before shipment.
(2) Testing includes visual inspection, pressure testing, and functional testing.
2. Compliance:
(1) Compliant with relevant international standards for sanitary equipment.
(2) Meets or exceeds customer-specific requirements for material, design, and performance.
Packaging and Delivery
1. Packaging Details:
(1) Standard export seaworthy packing to ensure safe transportation.
(2) Protection against corrosion and mechanical damage during shipment.
2. Delivery:
(1) Lead times vary based on order size and complexity.
(2) Expedited shipping options available at an additional cost.
