Lubrication pump without time，4L，24V
Introduction of Ciso centralized lubrication systems 24V automatic centralized grease pump for agricultural machinery
Pressured oil delivered by pump moves plunger in distributor to run reciprocating motion, which can force to deliver the oil to each lubrication point quantitatively and orderly.
Performance and characteristics of Ciso centralized lubrication systems 24V automatic centralized grease pump for agricultural machinery
1. DESIGN AND ADVANCED SOLUTIONS,GT-PLUS is a piston pump predisposed to operate with a maximum of five pumping units,Its design is particularly suitable for progressive systems or single-line systems.
2. Five independent line lubrication at the same time.Output can be combined and increase displacement
3. With special materials, to achieve excellent anti-shock ability Special design of pump make it easy to observe the oil level and prevent UV radiation, prevent oil deterioration.With low liquid level alarm,flashing buzzer.
4. Be managed by an external PLC. Since it does not come with an internal control unit, this is the most economic solution for lubricating your systems.
Parametres of Ciso centralized lubrication systems 24V automatic centralized grease pump for agricultural machinery
|
TECHNICAL CHARACTERISTICS |
|
|
Outlet thread |
G1/4 |
|
Rated flow |
2ml、3ml、4ml/min |
|
Operating preasure |
35MPa Max |
|
Reservoir Capacity |
4L |
|
Lubricants |
OIL-NLGI 2 |
|
Operating temperatures |
-40-90℃ |
|
IP Grade |
IP65 |
Ordering information：
|
1、Order the GT-PLUS pump for the upper grease cover.Please add -C after the standard part number.
For example:20D241-C
|
|

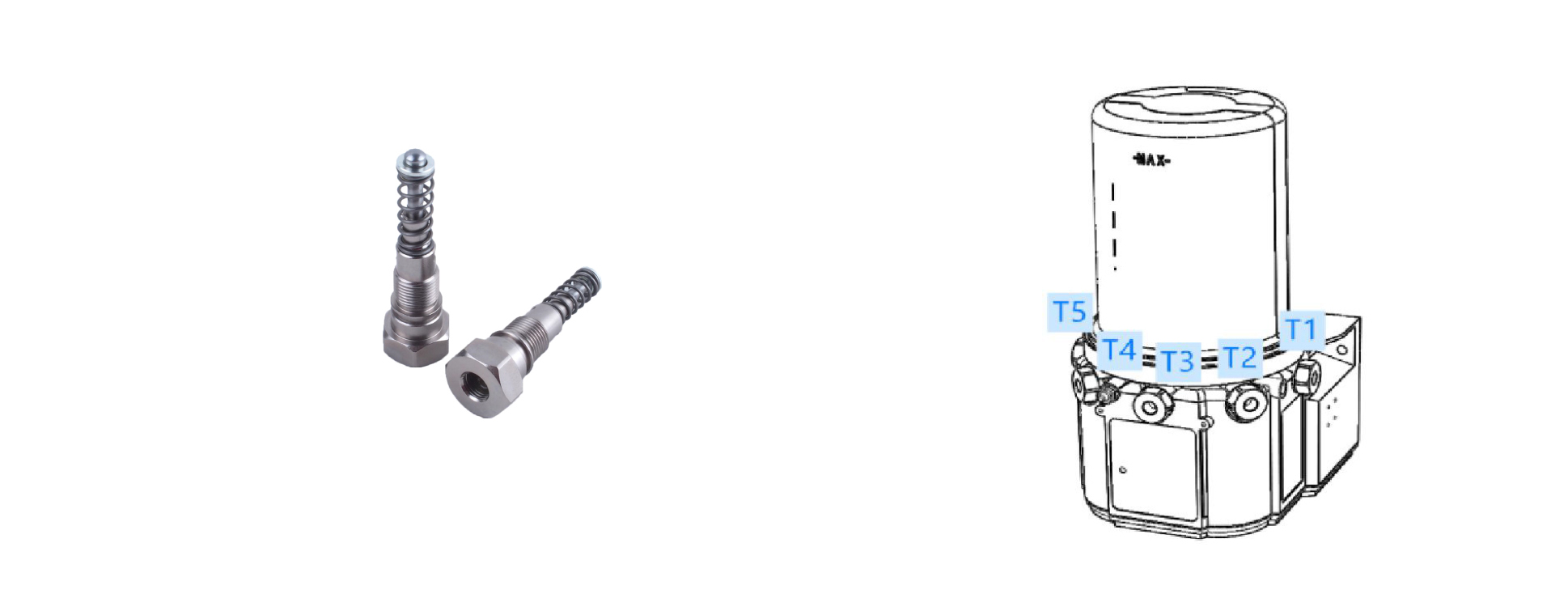

2、Every factory GT pump is equipped with a pump element at the T1 position. Customers can purchase pump element and install them in positions T2 through T5! |

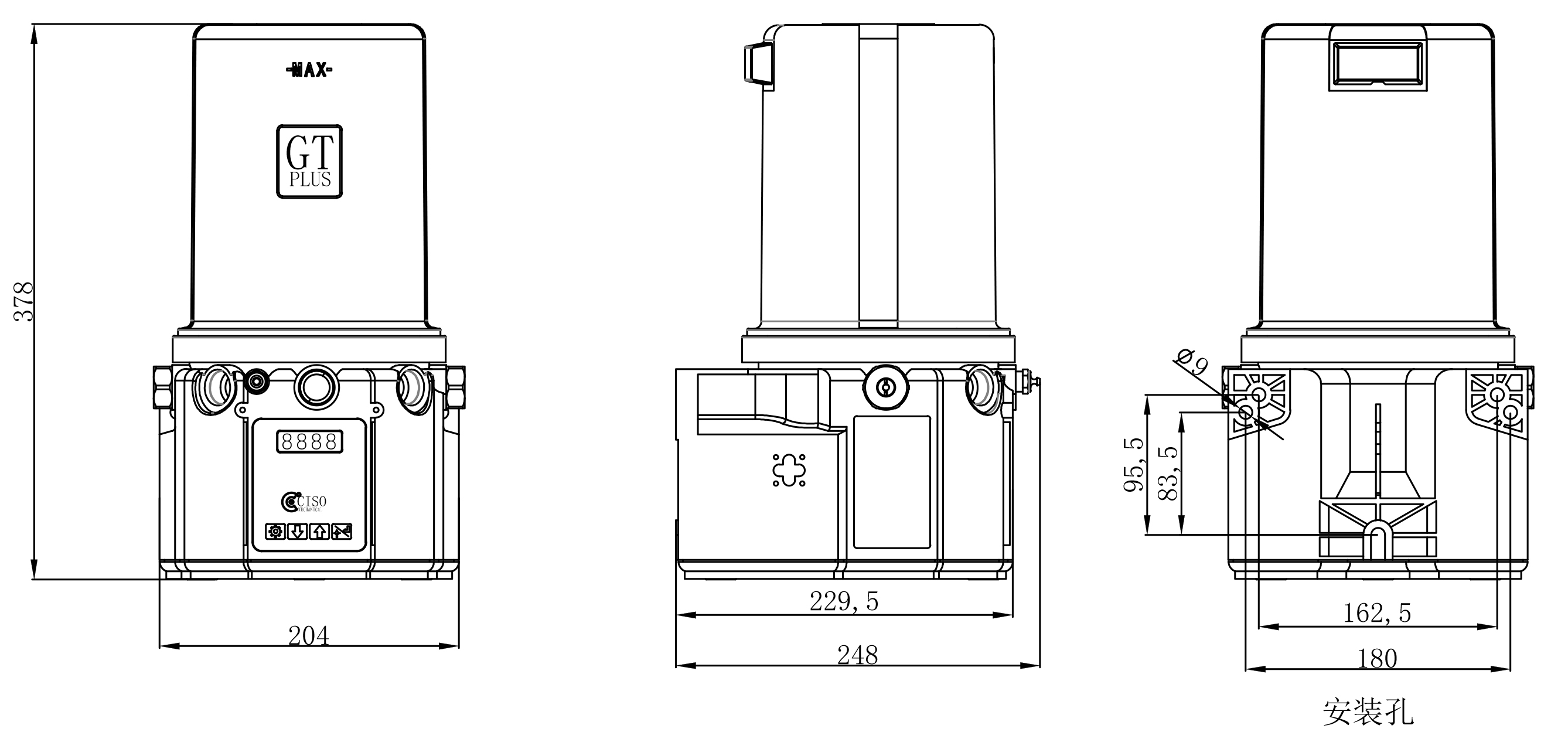

Dimensions：
Ordering information：
|
STIR VERSION |
||||
|
Type |
Lubricants |
Voltages |
Reservoirs |
Part number |
|
Standard |
Grease |
12VDC |
4 |
20D426 |
|
24VDC |
4 |
20D446 |
||
|
220VAC |
4 | 20D466 | ||
1.Are you factory or only company?
A:We have factory to produce lubrication pump.
2.What's your delivery time?
A: Generally,we can delivery in 3-7 days after we get the deposit.
3.What is the payment terms?
A: We accept T/T , 30% as the deposit,the balance payment should be paid before delivery the goods.
4.What's your MOQ?
A:Our MOQ is 5 pcs.
5.Can I be your agent in my country ?
A: We looks forward to long-term cooperation,if you have an idea,we can communicate in detail.
6.Can i have my own customized product?
A:Of course.We accept OEM and ODM.
