We design and manufacture the Electric Control Systme exclusively for Smart Film. PDLC Film Power Supply can transform the voltage from 220/110V ac to 60V ac.You can change smart film from clear to opaque by remote control, a switch, app, voice control, etc.

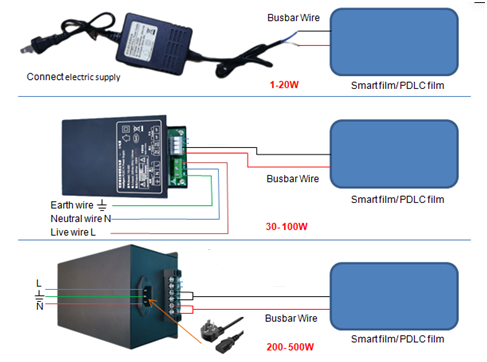

Transformer from 1W to 500W
Single Electrode Wiring Connection

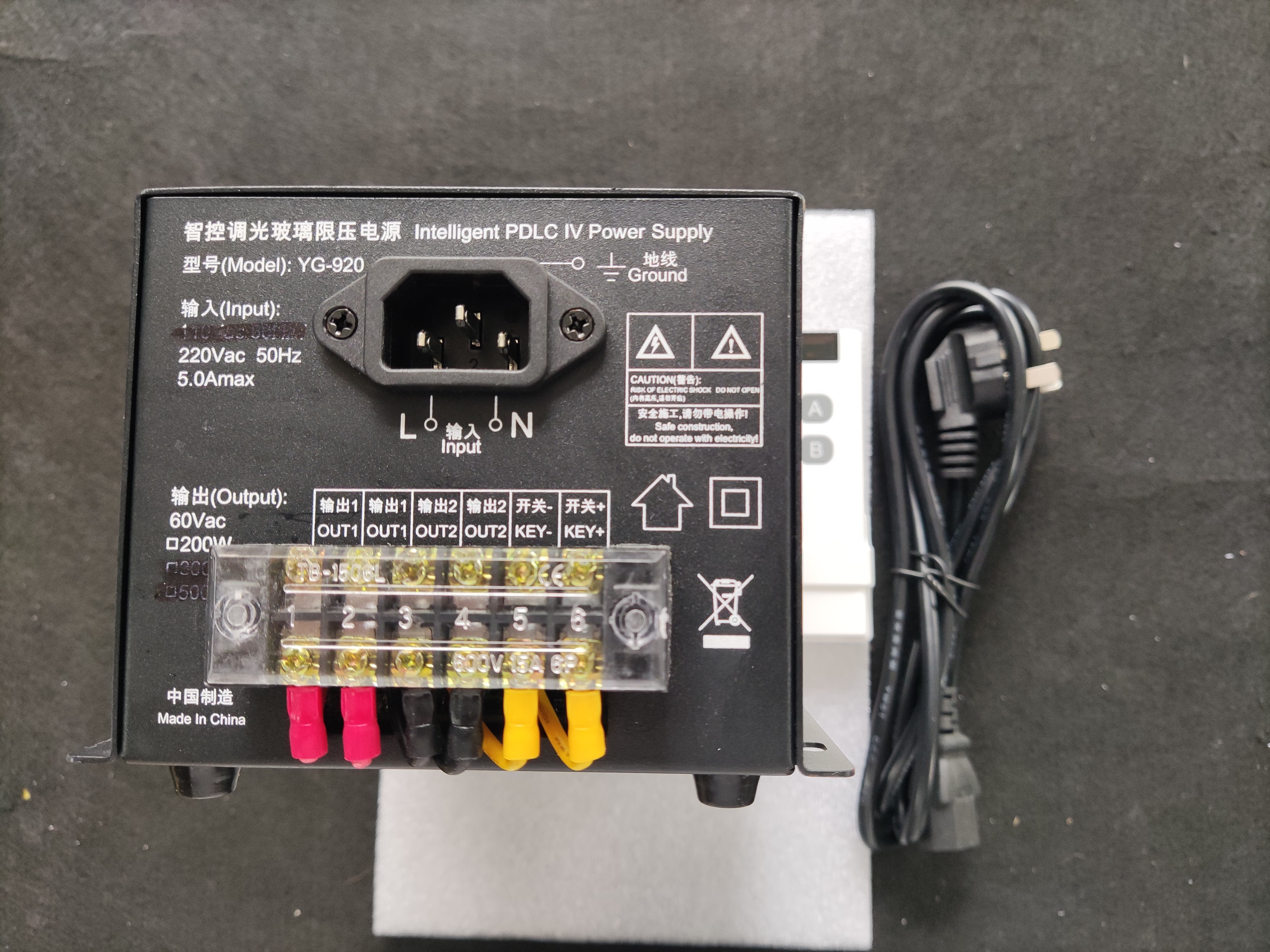

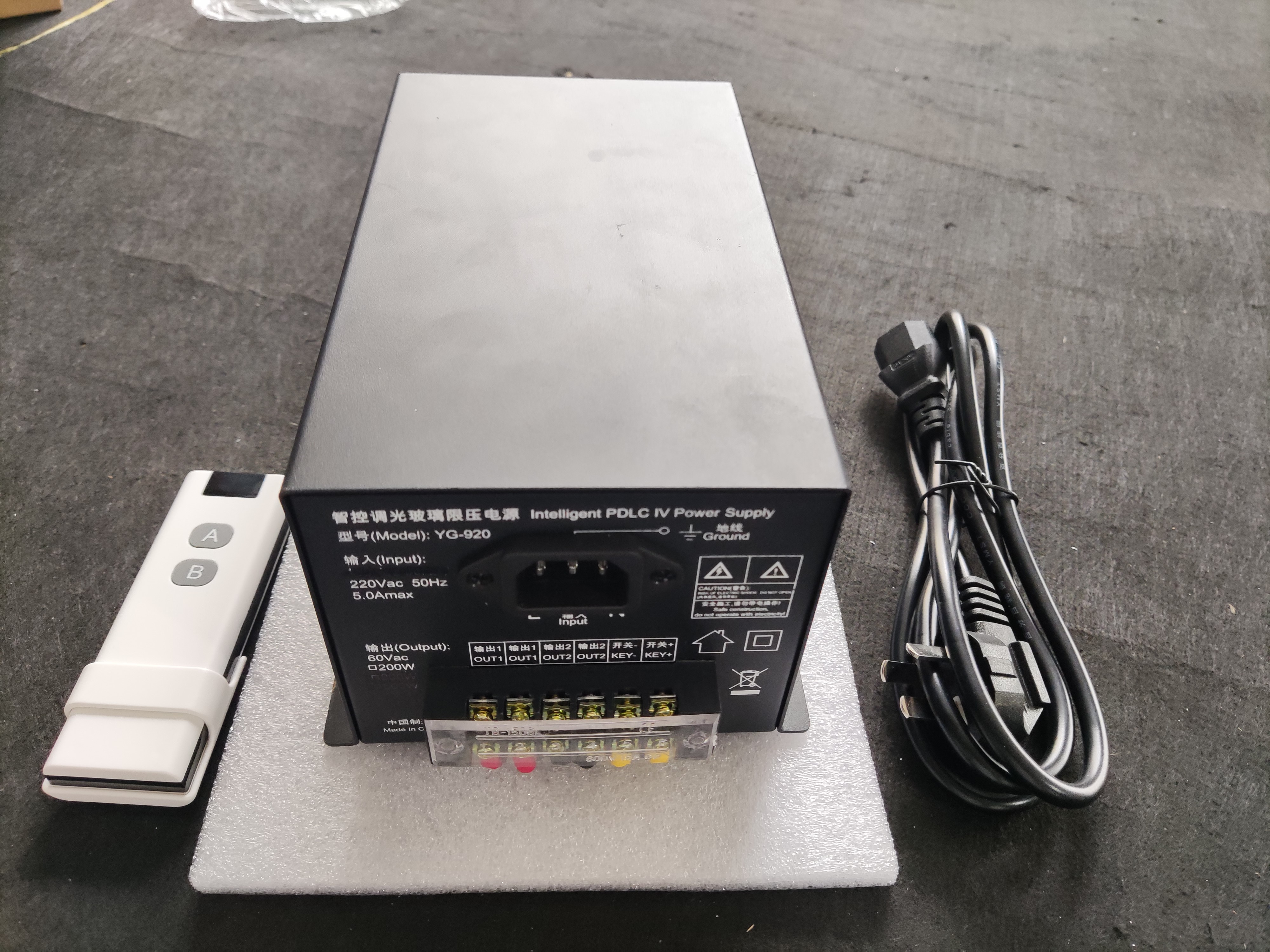

Smart Glass & PDLC Film Power Supply
*Program control design: Develop core technologies independently
*Safety: over voltage, over current, short circuit and other multiple protection
*Practical and beautiful
*Certification:refer to national safety EMC standard design.
Product Parameters
|
Specification of YuGuang Transformer(30W/50W/100W/200W/300W/500W) |
||
| ITEM | Regular Power Supply | |
| Input Voltage |
AC 220V or AC110v |
|
| Output Voltage | AC 60V | |
| Frequency | 50-60Hz | |
| Output Power | 30W~1000W | |
| Output Current | 0.01A~20A | |
| Rated Power | 6-8w/square meters | |
| Ambient Temperature | -20~+60°C | |
| Ambient Humidity | >90%RH | |
| Power Consumption | 6~8w/square meters | |
| Isolation Voltage | AC 1800v 1min | |
| Insulation Resistance | 20MΩ | |
| Application | Smart glass & Smart film | |
| Features |
Overcurrent projection/Overvoltage projection/Overheat projection/Moistureproof/Fireproof |
|
| Standby Mode | For a long time | |
| Control Mode |
Button Control/Remote Control/App Control/Radar Control/Infrared Control /Sound Control/Light Sending |
|
| Unconventional Type | Dimming/Flicker | |
| Warranty | 2 years | |
| Working Life |
≥15 years |
|
Strong current control SWC-001 Weak current control WWC-001
Wi-Fi+wire control WIFI-001
Remote touch RT-001
Application
FAQ
1. How can I purchase or get a quote?
Please send inquiries to us. You can also contact us through
Skype/WeChat/WhatsApp: +86 135 1027 1971 Grace.
2.We use 110V AC power supply.
Is your transformer suitable for 110V use?
Yes, we have transformer transforming the voltage from 110V AC to 60V AC, as
well as 220V AC to 60V AC, or other voltages.
3. Is there dimming transformer?
Yes, you can leave a message, and we will get back to you asap.
4. Is remote control included with the transformer?
Yes, we provide transformer with remote control. Also we have many other
controls, like voice control, wifi/App control, magnetic control, etc.
5. Is there MOQ?
No, the order starts from 1 set.
6. Do you manufacture transformer yourselves?
Yes, we are a leading smart film manufacturer, and we design and manufacture
transformer just for smart film.
