Standard Stainless Steel Lever Trim for Double Door - Model DDPD012 by D&D HARDWARE

1. Product Overview

The DDPD012 Standard Stainless Steel Lever Trim by D&D HARDWARE is a premium lever trim engineered for seamless integration with exit devices in commercial buildings. Available in Stainless Steel (SSS) or Zinc, it features ADA compliance, non-handed operation, and multiple functional options (Entrance, Storeroom, Passage, Dummy). This lever trim integrates seamlessly with Panic Hardware, Door Locks, and Exit Devices, ensuring compliance with safety and accessibility standards in retail stores, office complexes, and public facilities.

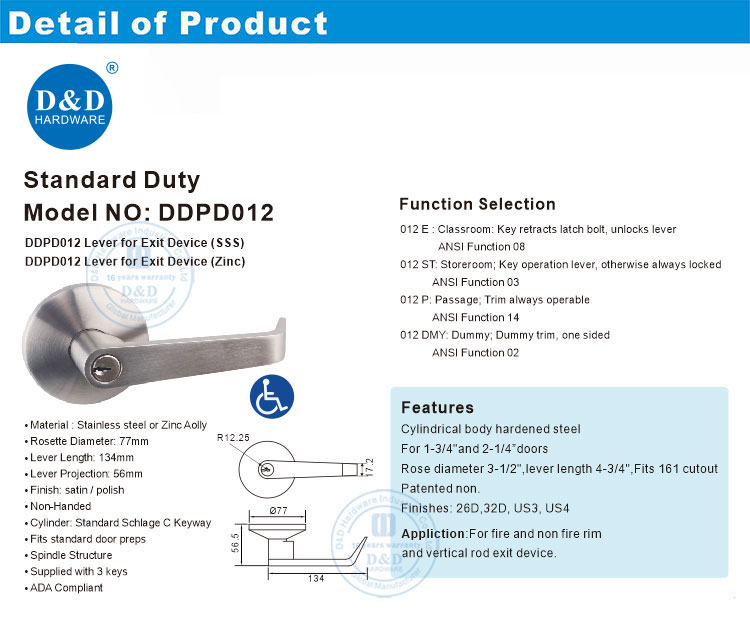

2. Technical Specifications

Materials: Stainless Steel (SSS) or Zinc
Rosette Diameter: 77mm
Lever Length: 134mm
Lever Projection: 56mm
Finish Options: Satin Polish (SSS), 26D, 32D, US3, US4 (Zinc)
Cylinder: Standard Schlage C Keyway
Function Options:
- 012 E (Entrance): Key retracts latchbolt, unlocks lever (ANSI 08/13)
- 012 ST (Storeroom): Key operates lever, otherwise always locked (ANSI 04)
- 012 P (Passage): Trim always operable (ANSI 15)
- 012 DMY (Dummy): One-sided dummy trim (ANSI 10)
Compatibility: Fits standard door preps, works with fire and non-fire rim/vertical rod exit devices
Accessibility: ADA Compliant

3. Product Images and Videos

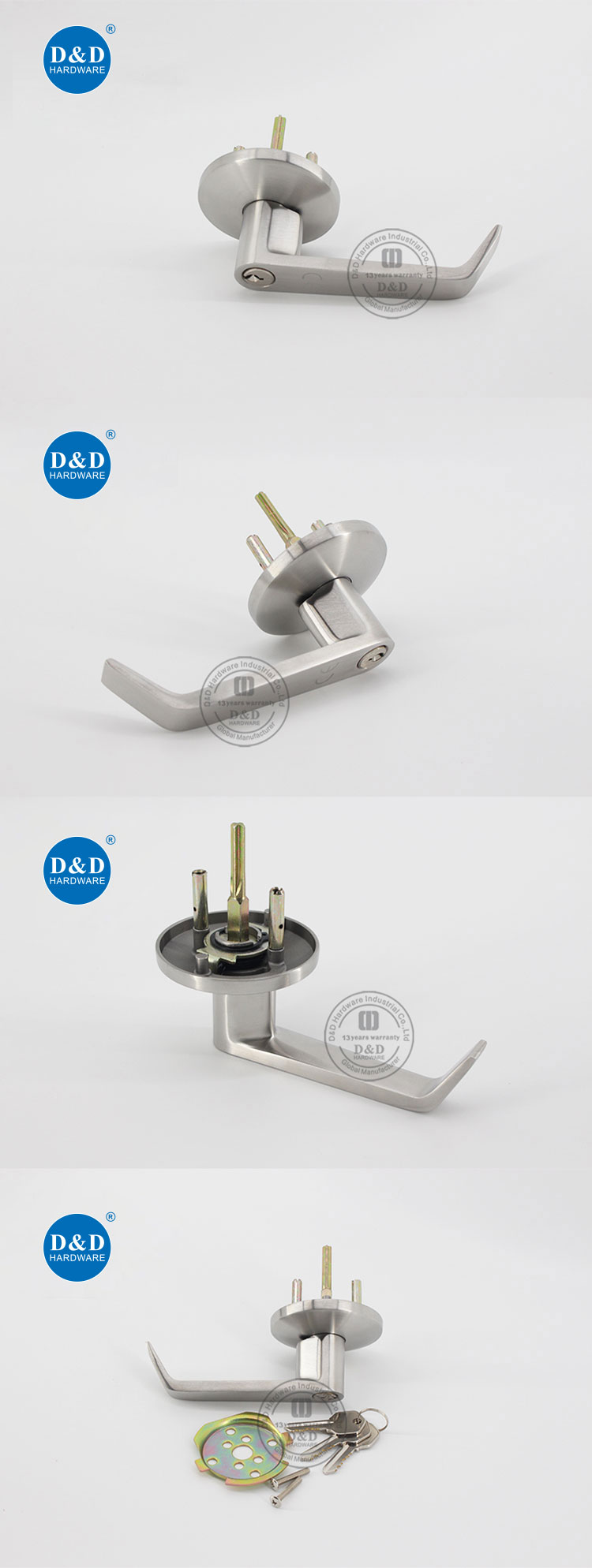

Standard Stainless Steel Lever Trim for Double Door

Watch the video to see the DDPD012’s operation, installation, and integration with D&D Panic Hardware and Exit Devices.

4. Product Features & Advantages

Multiple Function Options: Choose from Entrance, Storeroom, Passage, or Dummy functions to match specific door security and accessibility needs.
ADA Compliance: Meets accessibility standards, ensuring easy operation for all users in commercial and public spaces.
Durable Materials: Stainless Steel (SSS) or Zinc construction ensures corrosion resistance and longevity in high-traffic environments.
Non-Handed Design: Simplifies installation and inventory management, compatible with both left and right-handed doors.
Integration with D&D Door Hardware Ecosystem: Works with Panic Hardware, Door Locks, and Exit Devices for a complete, compliant door solution.
Patented Non-Clutch Mechanism: Ensures reliable operation and security, setting it apart from standard lever trims.

5. Installation Steps

Prepare Door & Exit Device: Ensure the door is prepped to standard specifications and the exit device is installed per manufacturer guidelines.
Mount Rosette & Lever Assembly: Install the rosette and lever onto the door, aligning with the Exit Device and Door Lock components.
Integrate Cylinder (if applicable): For Entrance or Storeroom functions, install the standard Schlage C Keyway cylinder and secure with supplied fasteners.
Test Functionality: Verify lever operation, latchbolt retraction, and compatibility with the Panic Hardware or Exit Device.
Adjust for ADA Compliance: Ensure lever projection and operation meet accessibility standards for all users.

6. Application Scenarios

The DDPD012 Standard Stainless Steel Lever Trim excels in commercial and public environments, including:

Retail Store Entrances/Exits Office Building Restrooms Public School Classrooms Healthcare Facility Corridors Commercial Warehouses

In retail store entrances, the Entrance function provides secure access while the lever trim’s sleek design complements Door Handle aesthetics. For healthcare facility corridors, ADA compliance ensures accessibility for all patients and staff, paired with Concealed Hinges for a clean look. In public school classrooms, the Passage function allows free movement, matching Stainless Steel Door Stops for durability—reducing maintenance costs and enhancing compliance in diverse commercial settings.

7. Certifications and Compliance

CE Certified: Complies with European safety and accessibility standards.
EN 1125 Compliant: Meets international performance standards for exit device hardware.
ANSI/BHMA Compliant: Aligns with North American standards for lever trim functions (08/13, 04, 15, 10).
ADA Compliant: Meets U.S. accessibility standards for commercial buildings.

8. Customization Options

D&D offers customization for the DDPD012 lever trim to meet project needs:

Material Customization: Choose between Stainless Steel (SSS) or Zinc based on aesthetic and durability requirements.
Finish Customization: Select from Satin Polish (SSS), 26D, 32D, US3, or US4 (Zinc) finishes to match Door Handles and architectural themes.
Function Customization: Opt for Entrance, Storeroom, Passage, or Dummy functions to align with specific door security needs.

9. Production Process & Quality Control

Material Sourcing: Procure high-grade Stainless Steel or Zinc to ensure durability and compliance with international standards.
Precision Manufacturing: Use advanced machining to create the rosette, lever, and internal components for dimensional accuracy and smooth operation.
Assembly & Calibration: Integrate the lever trim mechanism, calibrating for reliable function operation and ADA compliance.
Quality Inspection: Each lever trim undergoes functional testing (all function types, lever operation) and compliance checks (CE, ANSI, ADA), with visual inspection for defects.
Packaging: Pack in protective boxes to prevent transit damage, with clear labeling for efficient logistics to commercial projects.
