If you are looking for lifting machinery, tower crane and construction elevator you can choose, which can hit your taget, if you are lookingfor concrete machinery, we can also provide you with many types, if you are planning to build, the concrete is necessary for construction site.And to save money always to purchase concrete mixing plant to produce concrete, except that, when the floor is higher, we will use concrete pump to pour concrete, except that ,if you want to sell concrete, you can buy the concrte mixer truck to receive concrete from concrete mixing plant receiving hooper, Also if you think the concrete mixing plant is not suitable for you ,you can choose smaller concrete mixer, which is suitable for small construction project.
Finally, if you want to know the flat top tower crane advantages and flat top tower crane prices,please review the production describtion.
Main featuresFYPA125(PT6513-8t) tower crane is a is a kind of level-jib、trolley derricking、high level slewing、 flat-top self-hoisting tower crane. The max.working radius is 65m, and can change to 60m, 55m, 50m, 45m, 40m etc. The max. lifting capacity is 8t, and rated lifting moment is 1250KN*M, The jib and counter jib are designed with cantilever structure, which makes the installation and disassembly of the tower crane safer and faster. The mast section is integral, safe and beautiful; the main limb material adopts square tube structure, and the connecting sleeve is dovetail type; the straight web rod and inclined web rod of the mast section are super-strong design, the tower crane can be widely used in the construction of high-rise buildings and high-tower buildings can also be used for port terminals, cargo handling and loading and unloading work.

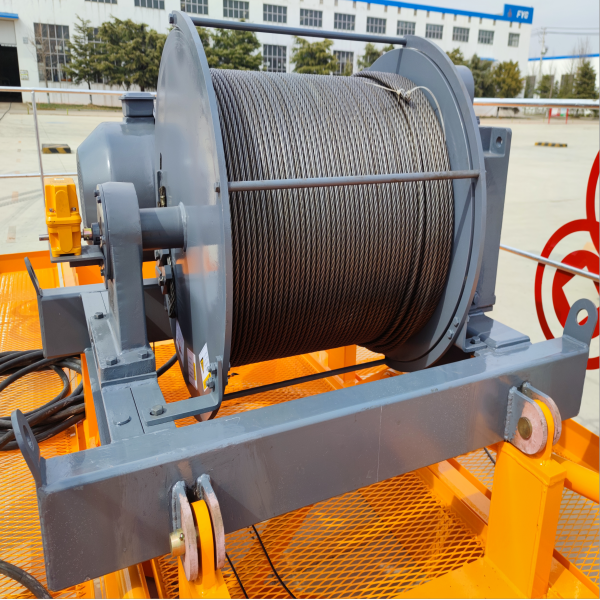

①The hoisting reducer is a four-axle, which realizes the thick and short design of the hoisting mechanism drum, which reduces the deflection angle of the wire rope, so that the wire rope is arranged on the drum neatly, and the service life of the wire rope is improved; The mechanism adopts frequency conversion speed regulation control, the starting and braking are stable, and the slow positioning speed can run for a long time, which can basically achieve zero-speed braking, prolong the service life of the structure and transmission parts, and is also very beneficial to the wire rope arrangement and service life. Improve the safety of tower cranes;
②The trolley derricking is composed of a frequency conversion motor, a semi-built-in planetary reducer, a reel, a frame and other components. It has the characteristics of zero-speed braking, gentle running and braking, high transmission efficiency, low noise, compact structure, safe and reliable braking, accurate positioning, beautiful appearance, etc.

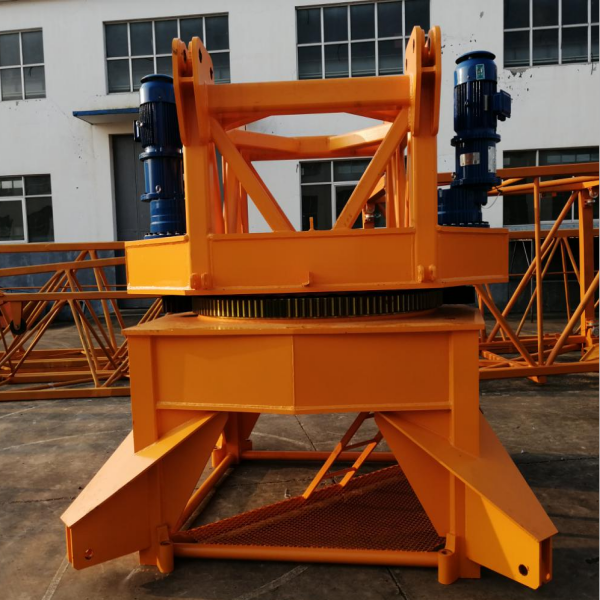

③The slewing mechanism adopts symmetrical double slewing control and frequency conversion control, with stable rotation, small impact and low failure rate; the upper turntable structure and the slewing bearing installation design positioning structure, so that the slewing pinion and the slewing bearing are well meshed;
If you are interested in the product, contact 2bvideo.com for more information for more information
